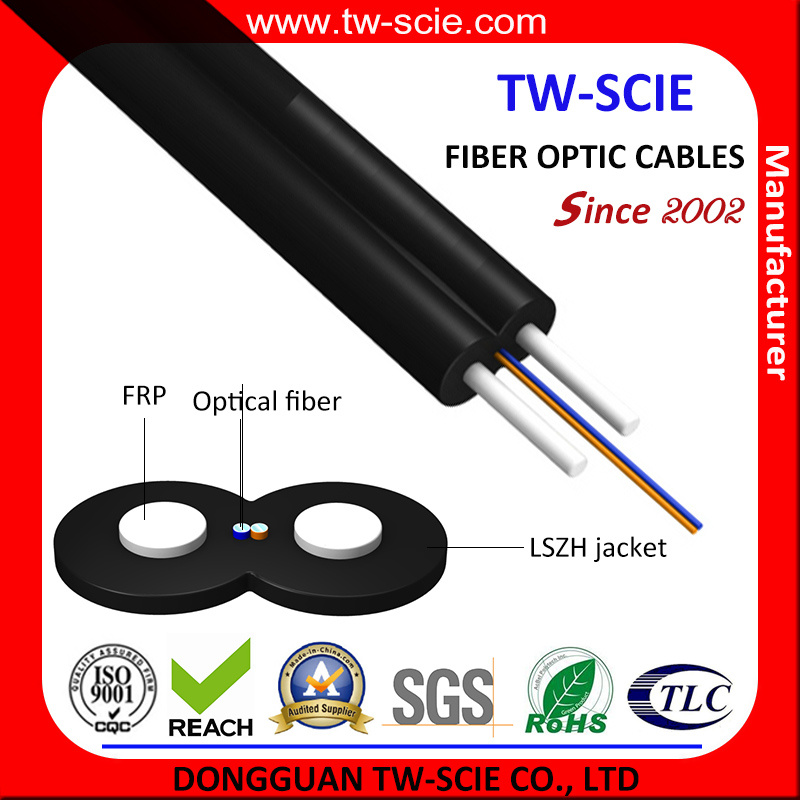

2 Core Indoor Using Fiber Cable FTTH

Prod Model:	FTTH-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	White or Black

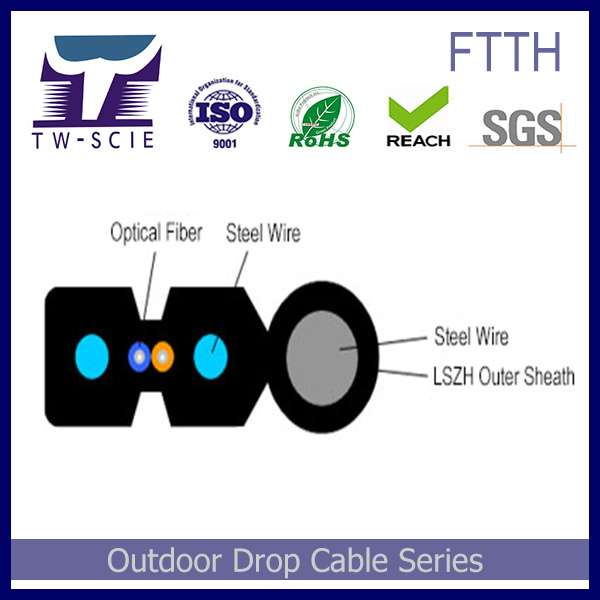

Strengthen Material:	FRP or Steel Wire
Certification:	Reach
Application:	Fiber Optic Cable
Cover Material:	PE

Product Description

Should be used
Used in the access network or CPN introduced into the room from the outside cable
Integrated wiring in buildings used for the introduction of cable, especially when the introduction of indoor or outdoor overhead wiring

Features
Has good mechanical and environmental performance
Flame (or retardant) performance to meet the standards
Sheath of the mechanical and physical properties to meet the relevant standards
Easy installation, flexible, convenient connecting and supporting high-capacity data transmission
Meet market and user demands

Customization
Fiber types: Single-mode G. 652 or G. 655 or G657fiber, A1a or A1b multimode fiber, or other models and types of fiber
Jacket material: Flame-retardant polyvinyl chloride (PVC), smoke halogen (LSZH), polyurethane (TPU) or other agreed material
Jacket Color: (including fiber optic cable in color) the color of the standard requirements, but also other agreed upon color
Cable Size: Nominal fiber size, but also other agreed size
Delivery length: 1km or 2km, but also other agreed length
Other requirements: Other special requirements agreed

ITEMS	UNITS	SPECIFICATION
Attenuation	dB/km	≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion	ps/nm.km	≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength	nm	1300 ~ 1324
Zero Dispersion Slope	ps/nm2.km	≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber)	nm	≤1260
Mode Field Diameter	um	9.2±0.5
Mode Field Concentricity	um	≤0.8
Cladding Diameter	um	125±1.0
Cladding Non-circularity	%	≤1.0
Coating cladding concentricity error	um	≤12.5
Coating Diameter	um	245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn	dB	≤0.5 at 1550nm
Proof Test	kpsi	≥100
