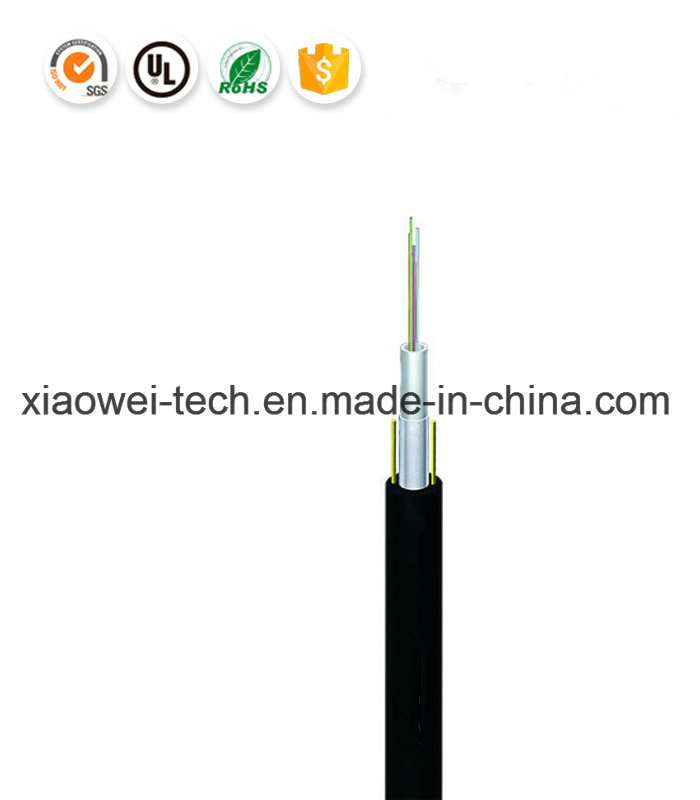

2 Core Simplex Single Model Indoor Optic Fiber Cable

Name: 2 Core Simplex Single Model Indoor Optic Fiber Cable
Brand: all-electronics-online.com
SKU: 831136075
Availability: InStock
Rating: 4.4 (104 reviews)

Price:	US $ 0.5-5/Meter
Min Order:	100/Meter
Pay Type:	T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	IFOC-2C-PT
Color:	Blue, Yellow, White
Short Term:	1500n
Long Term:	600n
Storage Temp:	-40~60
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Technical Specification of Fiber Cable

Model: IFOC-2C-PT

General: Low dispersion and attenuation, proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties. Double-jacket structure make cable have nice properties of moisture resistance and crush resistance.

Features: PVC jacket (Outer jacket)

Fiber of 2 colors

There are aramid yarns inside, protective fibers do not snap

Technical parameters:

Cable count	Outer sheealth diameter (mm)	Maximum Tensile Load (N)		Minimum Crush Load (N/100mm)		Minimum Bending Radius (mm)		Storage Temp. (^oC)
Cable count	Outer sheealth diameter (mm)	Short term	Long term	Short term	Long term	Short term	Long term	Storage Temp. (^oC)
2	3.0 x2 (±0.5)	1500	600	1000	300	20D	10D	-40 + 60

Fiber performance (ITU-G.652):

FIBER PERFORMANCE (ITU-G.652)	Item	Specifications
	Mode field diameter(μm)	1310 nm 9.2±0.4
	Mode field diameter(μm)	1550nm 10.5±0.4
	Coating diameter(μm)	245±7
	Coating non-circularity (%)	<6.0
	Mode field /cladding concentricity error (μm)	≤0.6
	Cladding diameter(μm)	125.0±1
	Cladding non-circularity (%)	<1.0
	Attenuation(dB/Km)	1310mm ≤0.35
		1550nm ≤0.21
		1625nm ≤0.24
	Cut-off wavelength (nm)	2m(λc) 1150~1330
	Cut-off wavelength (nm)	20m cable +2m fiber (λcc) <1260

Fiber performance (ITU-G.652) CONT'S

FIBER PERFORMANCE (ITU-G.652)	Item	Specifications
	Dispersion	Zero dispersion wavelength(m) 1300~1322
		Zero dispersion slope(ps/nm².Km) ≤0.092
		Chromatic dispersion (Ps/nm2.Km)	1285~1330nm ≤3.1
			1550nm ≤18
			1625nm ≤22
	Fiber color	Blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua

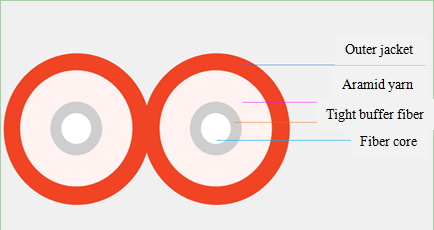

Diagrammatic drawing:

Shanghai Xiaowei Equipment Co., Ltd (Xiaowei) was established in 2011, Shanghai, which is a company covering cable and accessories manufacturing, engineering service and trading. The main product is coaxial/feeder cable, feeder claim, feeder tools, all kind of the male, female, DIN, connectors, feeder connectors, feeder grouding kit/bar, low loss jumper cable, indoor optic jumper cable and outdoor fiber cable, splitter and coupler, antenna, GPS antenna and all the accessories in the telecom field.

Xiaowei has long cooperation with the Chinese main telecom operators such as China Mobile, China Unicom, China Telecom. And the electric power operator such as National Electric network company, Southern Electric power company. Xiaowei provides total solution for telecommunication, power grid, railway, engineering, green energy, automobile industries, etc.

Xiaowei particularly focused on the QS and creating value for its clients and stakeholders, continuously invest in R&D, marketing & service networks, meeting and exceeding the precise needs of our customers national wide. With the develop of the business, we extend the service to the international trading.
