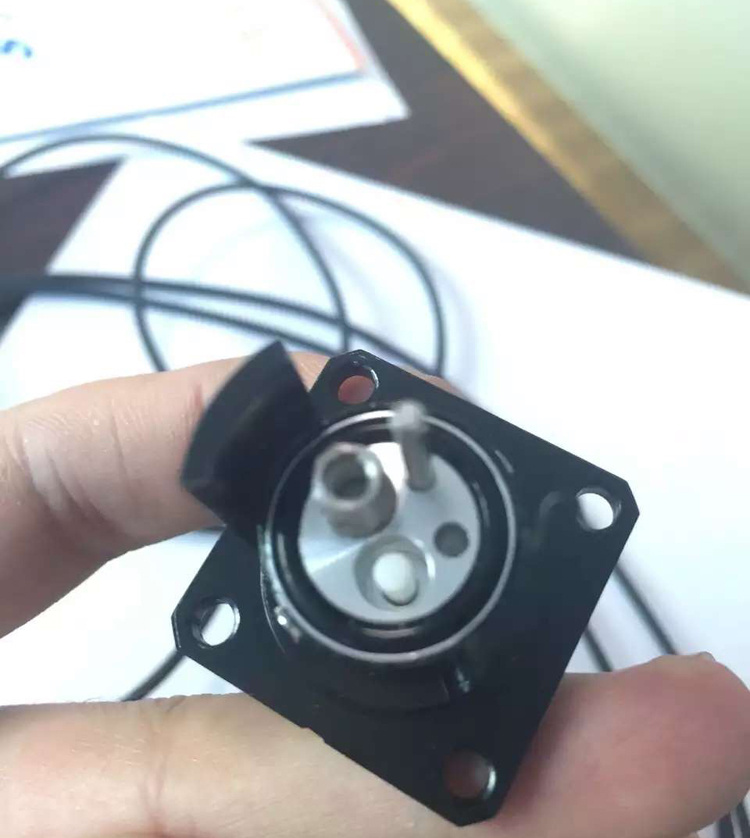

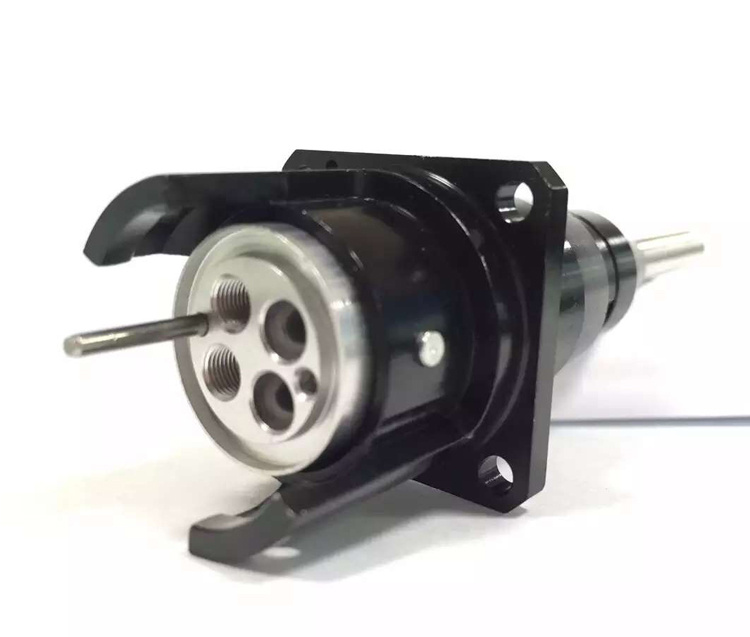

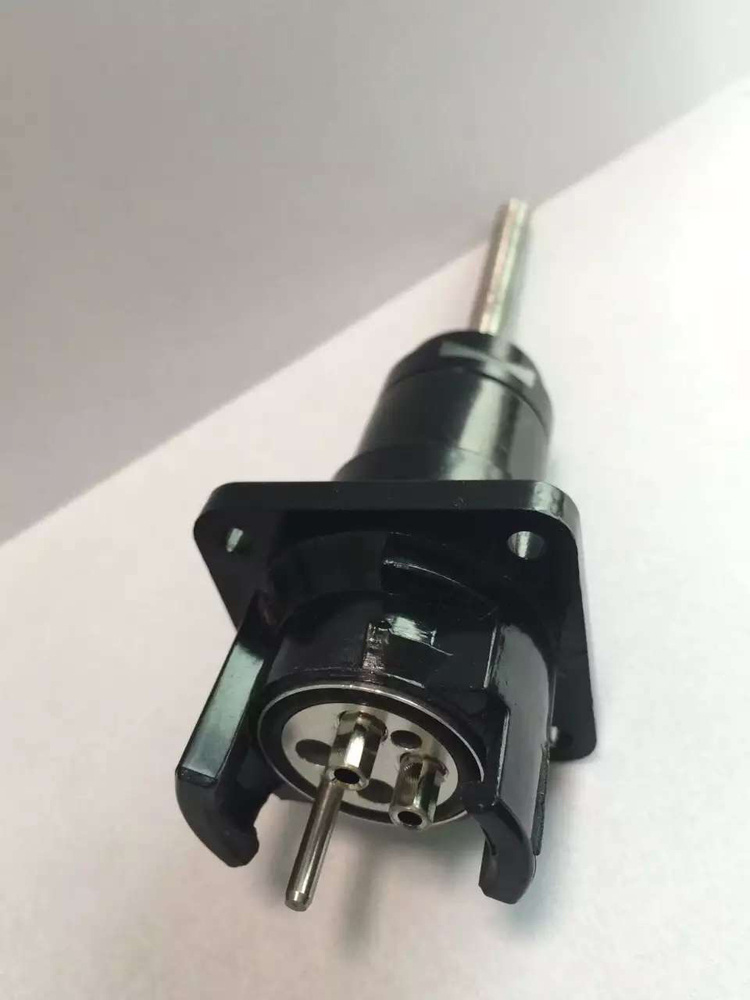

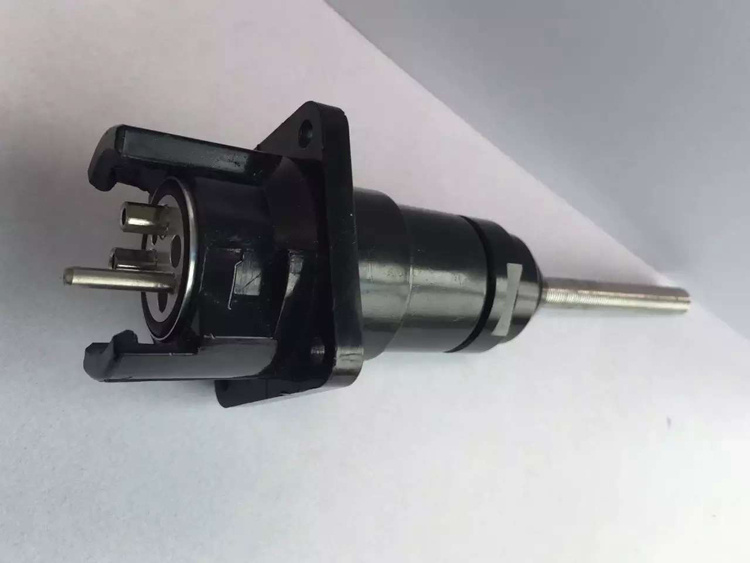

2 Cores Field Optical Cable, Neutral Bayonet Lock Patch Cord
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Connector: |
Sc FC St |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
FC |
| Certification: |
CE |
| Sheath Material: |
PE |
Product Description
Patch cordApplication: Specially designed for the military field optical cable, neutral bayonet lock structure can realize head and bridge, head and head, and a fast connection.With multicore a connection and blind plug;Small connection loss, high reliability;Strong, waterproof, dustproof, resistant to bad environment etc., can be used for all kinds of troops on the optical fiber communication networks, military computer systems, airborne or Marine equipment, repair cable system, and so on temporary connection field optical path.speciality:* Using neutral connection technology, without using the adapter or flange, can be fast connection.* Locating pin design to ensure the correctness of the core optical fiber to connect one more time and can blind plug.* All medium to high strength composite shell, light weight, high strength, which can effectively prevent electromagnetic interference, security protection equipment.* Connector plug and socket with dust cover, ensure the quality of connection.* Standard ceramic pin connection size and shell, and is fully compatible with the existing equipment.* Field can be used with single core cable in the field of connector, cable car wall form of SC, FC, ST, LC, etc | Size(mm) | 38*116mm |
| Fiber type | SM | MM |
| Insertio loss(dB) | <=0.6 | <=0.6 |
| Interchangeability(dB) | <=0.8 | <=0.8 |
| Repeatability(dB) | <=0.8 | <=0.8 |
| Times | >=1000 |
| Tensile Strength(N) | >=1000 |
| Vibration | 10Hz-500Hz,98m/S² |
| Impact | 490m/S² ,11ms |
| Water logging | 1.2m,24hr |
| Operating temperature ºC | 45 +28 |
| Temperature shockºC | 45 +85,3 cycles |
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.
Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
