| Prod Model: |
Drop cable |
| Fiber Type: |
G657A or G652D |
| Installation: |
Aerial |
| Fiber Cores: |
1-2 Cores |
| Sheath Color: |
Black |
| Sheath: |
LSZH |
| Application: |
Telecommunication |
| Certification: |
ISO9001 |
| Type: |
Indoor Cable |
| Connection Structure: |
Patch Cable |
| Core: |
1 Core or 2 Core |
| Sheath Material: |
PVC or LSZH |
Product Description

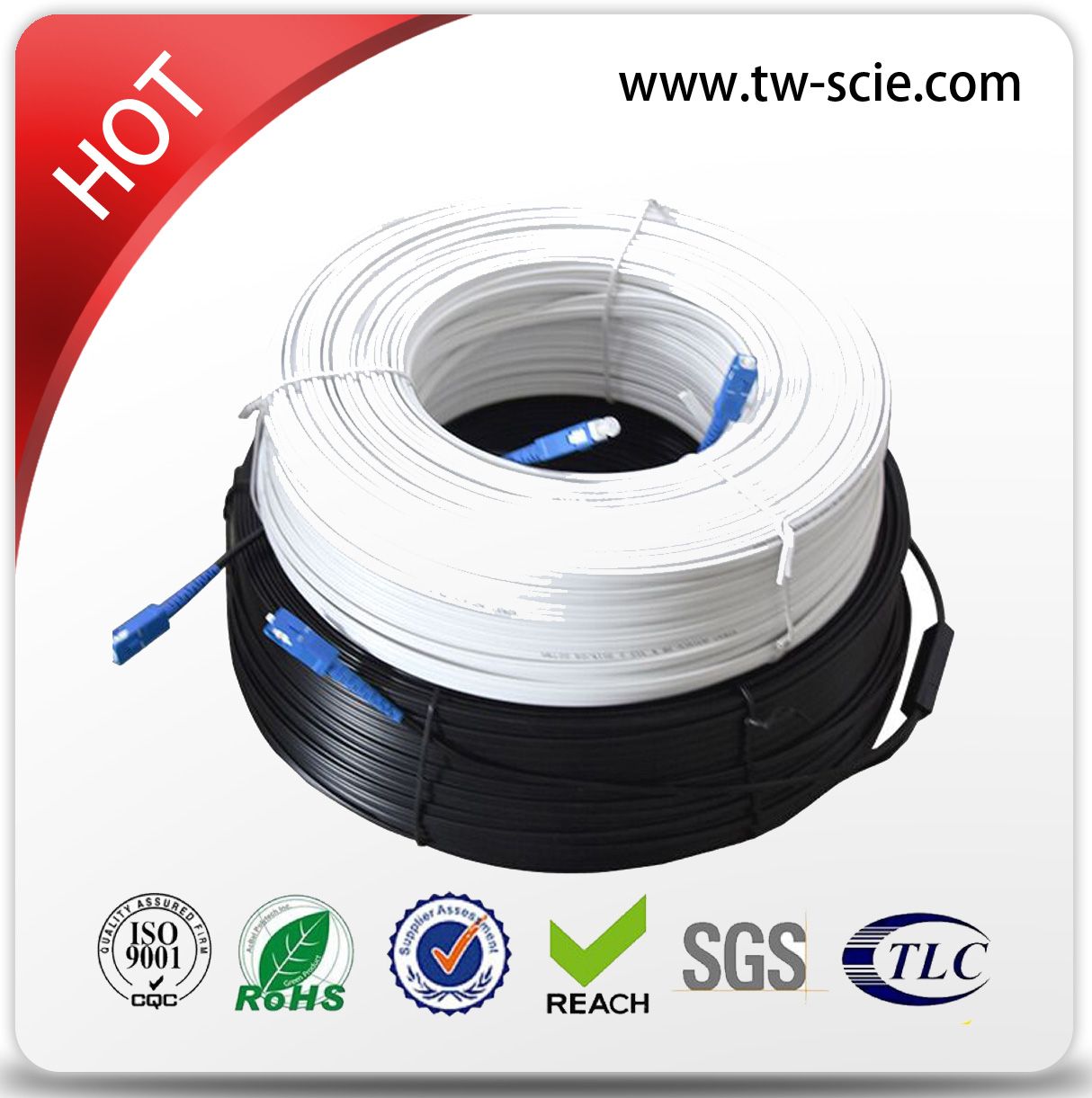

2 Fibers Drop Indoor Optical Fiber Cable
1-2 core SM bare fiber Indoor FTTH Drop cableFTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.
Descriptions:Breakout Cables with 12 fibers or less consist of two to twelve 1.6 mm MiniCord subunits covered by a PVC outer jacket.The unit tubes are then arranged around a dielectric central organizer and surrounded by a color-coded PVC jacket.MiniCord Breakout Cables with fiber counts of 18 to 72 contain either six or twelve 1.6 mm MiniCords in each unit tube. These unit tubes are encased in a color-coded PVC jacket. A ripcord under the outer jacket allows fast and easy sheath removal.
Characteristics:| Technical Parameters: |
| Cable Count | Out sheath
Diameter | Inner sheath
Diameter | Weight | Maximum allowable Tensile Strength
(N) | Maximum allowable Crush Load
(N/100mm) | Minimum Bending Radius
(MM) | Storage
temperature |
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) |
| 02 | 7.0 | 2.0 | 45.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 04 | 7.0 | 2.0 | 47.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 06 | 8.3 | 2.0 | 64.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 08 | 9.5 | 2.0 | 88.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 10 | 11.0 | 2.0 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
| 12 | 12.2 | 2.0 | 142.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 |
Features:1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meet the requirements of relevant standards;.
3. The mechanical characteristics of jacket meet the requirements of relevant standards;
4. Soft, flexible, easy to lay and splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.
Cable construction details| No.of fiber | 1F-4F |
| Gross weight | 8.5kg/km |
SM fiber | Fiber type | 9/125 | MFD | 8.6~9.8um |
| Cladding diameter | 125±0.7um | Cladding non-circularity | ≤0.7% |
Coating
diameter | 245±5um | Fiber color | standard spectrum |
| Strength member | Material | FRP / Steel wire | Color | white |
| Diameter | 0.5mm | Qty | 2 |
| Out sheath | Material | LSZH | Color | White / Black |
| Diameter | 2.0 (±0.1) *3.0mm (±0.1) | Thickness | >=0.5mm |
Cable mechanical and environment characteristics| Tensile strength | Long term(N) | 40N |
| Short term(N) | 80N |
| Crush load | Long term(N) | 500N/100mm |
| Short term(N) | 1000N/100mm |
| Bending radius | Dynamic | 20D |
| Static | 10D |
| Temperature | -20ºC~+70ºC |
Fiber characteristics| Fiber style | Unit | SM G652D | MM 50/125 | OM3-150 |
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 |
| Attenuation | dB/km | ≤0.36/0.23 | ≤3.0/1.0 | ≤3.0/1.0 |
| Cladding diameter | um | 125±1 | 125±1 | 125±1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 |
Application:1.Indoor any purpose cabling;
2.Backbone distribution cable in building.
3.Installation: wall, interlayer, pipe, trough, duct
Order Information:
1.Jacket material: PVC, LSZH or customized.
2.Jacket color: blue, orange, green, brown etc.
3.Fiber type: G.652, G.652.D, G655, A1-50/125μm, A1b-62.5/125μm etc.
4.Cable Dimension: the nominal, or customized
5.MOQ: 1km~2km, or customized
Tag: fiber cable; optical fiber cable.

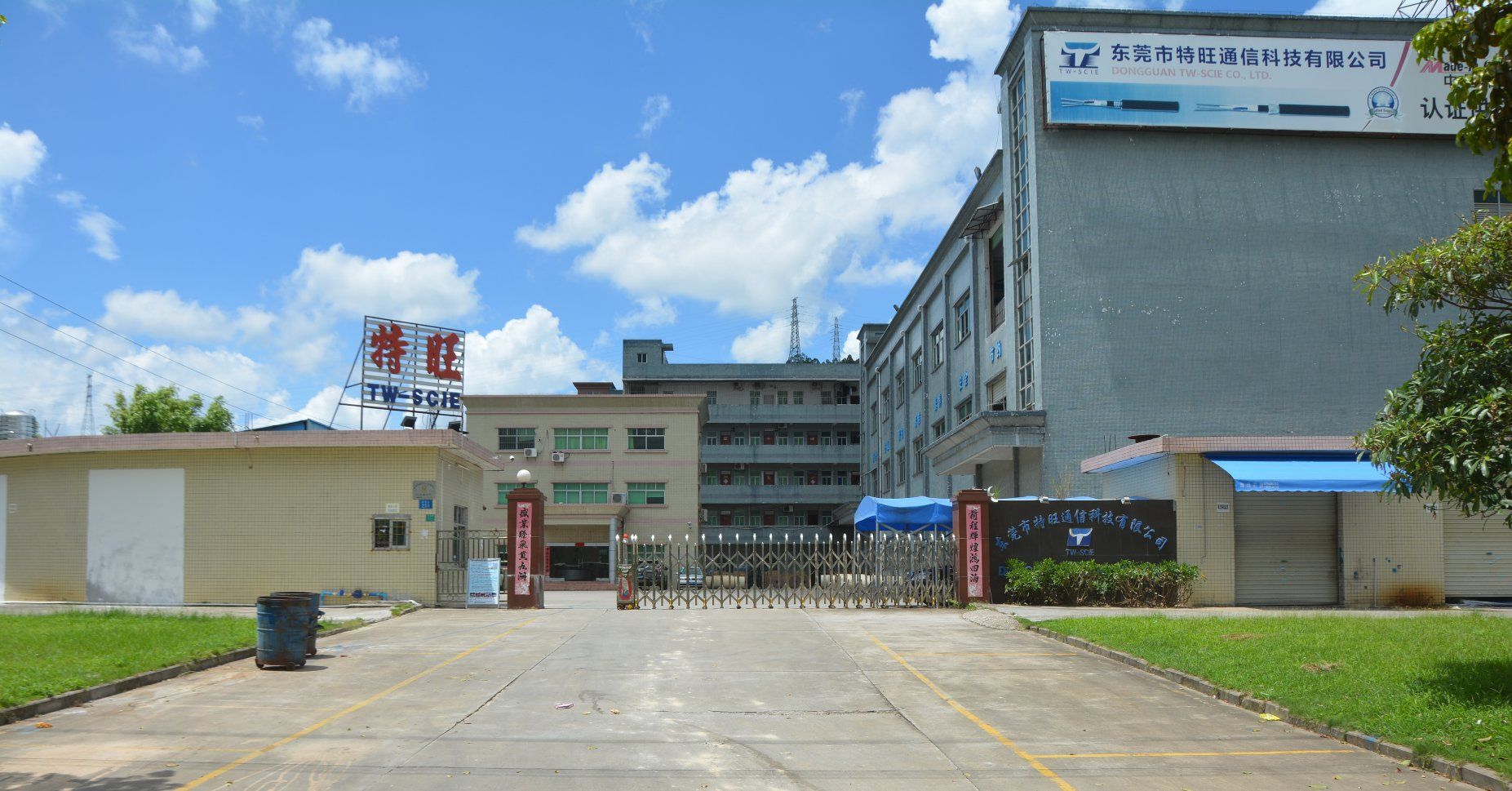

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
