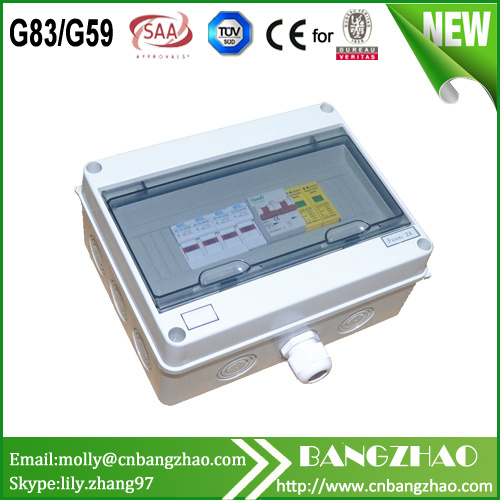

2 in 1 out DC/AC Combiner Box

Prod Model:	PVB-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PV Input Strings:	2 Srings
Shell:	ABS
Output And Input Connector:	Waterproof or Photovoltaic Connector
Apply For:	Solar Panels System
Protection Degree:	IP65
Max Input Voltage:	1000V
Type:	Distribution Metering Box
Structure:	Protection
Shell Material:	ABS Plastic Box
Shell Protection Grade:	IP65
Brand:	Bangzhao or OEM

Product Description

2 in 1 out DC/AC Combiner Box for Power System
Description

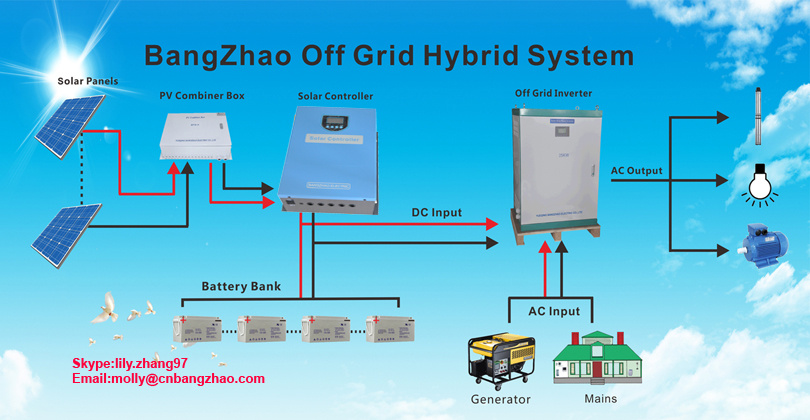

PV combiner box is used to bring together the output DC current of the PV array. It will combine the same solar panels which in series to form a PV Array ,supporting the use of photovoltaic grid-connected inverter, so as to constitute a complete photovoltaic system, with the city electric grid.

Summarize
BPVB series PV Array Combiner For a large-scale grid-connected PV system, it is a general practice to install a DC combining device in between the PV modules and inverters for the sake of minimizing the cable distance between them, facilitating maintenance and improving reliability. With many years of PV grid-connected system design experience, our BPVB PV array combiner box series is specially-designed for meeting the need of high performance and high reliability of PV systems. In combining with our Solar Access inverters, Bangzhao BPVB provides a turnkey solution for PV power plant systems. By using PV array combiner box, according to the input voltage of the inverter, Clients can connect a fixed number of similar PV modules to form a PV array. Then different strings of PV array can be converged into the PV array string box. After that, together with lightning arresters and circuit breakers, it is connecting to the inverter to reduce the system installation time and increase the system safety.

Features of PV array combiner box:
*  Applicable for outdoor PV systems;
*  Each PV array attached to DC fuse protection and anti-reverse protection optional;
*  Wide DC voltage input range with maximum open-circuit voltage up to 1000V;
*  High voltage lightning protection (SPD) special for PV;
*  PG Cable glands connector input, convenient and safe system wiring;
*  PV special high voltage circuit breaker control output;
*  Output Waterproof terminals;


Technical Parameters:



Type Designation	BPVB-2
Max. PV Array Voltage	500V/1000Vdc
Max. PV Array Inputs	2
Rated Current for Each String	5A/10A
Rated Output Current	25A/50A
Output Terminal Type	PG21
Output DC Circuit Breaker	32A/63A
Protection Degree	IP65
Environment Temperature	-25~+60ºC
Environment Humidity	<90% No condensation
PV special lightning protection module	Yes
Installation: indoors/outdoors (IP65 electronics)	Yes / yes	Yes / yes
Box material	ABS plastic box


1. Could be custom made according to user demand.


FAQ:
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.

Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,

Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or  wooden case for protection.

Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.

Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs.

Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .

Q8. What is the warranty period ?
A. Normally 1 year
