2 Layer High Frequency PCB 20 Mil RO4350b Immersion Gold
| Price: |
US $ 0.49/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-866-V8.86 |
| Final Foil External: |
1.0 Oz |
| Final Foil Internal: |
1 Oz |
| Final Height Of PCB: |
0.6 mm ±0.06 |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
None |
| Colour Of Component Legend: |
None |
| Minimum Trace And Space: |
10 Mil / - Mil |
| Minimum / Maximum Holes: |
No Required |
| Via: |
N/a |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
1.1 General description

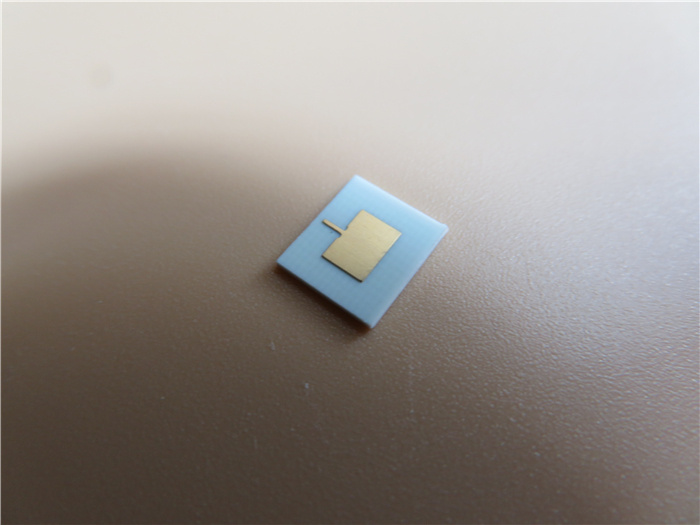

This is a type of high frequency PCB built on 20mil RO4350B substrate with Tg 280°C for
the application of VHF Radio. It's 0.6 mm thick with black silkscreen substrate and immersion
gold on pads. The base material is from Rogers supplying single up board. They're fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 50 boards are packed for shipment.1.2 Features and benifits
a. Excellent dimensional stability;
b. Low water absorbability influences dielectric constant and dielectric loss less at damp;
c. The dielectric constant (DK) is low and stable, so the signal transmission is good without
delay;
d. SMT process is resistant to reflow soldering, resistant to rework due to gold pads;
e. Comprehensive equipment management and maintenance and process control;
f. Thermal stress test, reliability test, insulation resistance test and ionic contamination test;
g. 1-10 pieces are offered;
h. RoHS materials;
i. Diversified shipping method.
1.3 Application
Modular oscilloscope, Antenna combiner, Analogue transmitter, Power amplifier
1.4 Parameter and data sheet| PCB SIZE | 10 x 12 mm=1PCS |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1 oz)+plate TOP layer |
| RO4350B 0.508mm |
| copper ------- 35um(1 oz)+plate BOT layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 10 mil / - mil |
| Minimum / Maximum Holes: | no |
| Number of Different Holes: | no |
| Number of Drill Holes: | no |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B Tg288ºC, er<3.66, RogersCorp |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 0.6 mm ±0.06 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (61.4% ) 0.05µm over 3µm nickel |
| Solder Mask Apply To: | NO |
| Solder Mask Color: | NO |
| Solder Mask Type: | NO |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | NO |
| Colour of Component Legend | NO |
| Manufacturer Name or Logo: | N/A |
| VIA | |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
