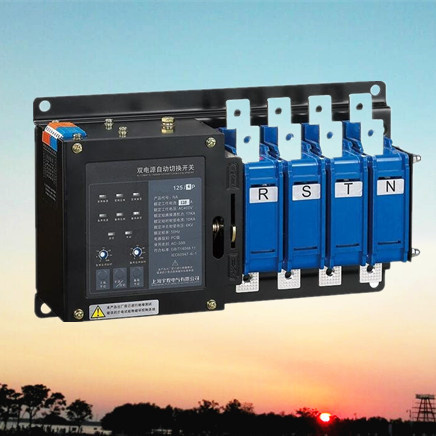

2 Stages Dual Power Automatic Transfer Switch (YMD1-125NA)

Name: 2 Stages Dual Power Automatic Transfer Switch (YMD1-125NA)
Brand: all-electronics-online.com
SKU: 716119842
Availability: InStock
Rating: 4.6 (129 reviews)

Price:	US $ 90-230/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YMD1-125NA
Operation Type:	Solenoid Coil
Kinds Of Body:	Integrate or Split
Rated Current:	40-125A
Automatic Switching Time:	Less Than 80ms
Main Contact System:	Spst V Instructure
Rated Voltage:	400VAC
Insulation Voltage:	690V
Rated Frequency:	50/60Hz
OEM Or ODM:	Accepted

Product Description

YMD1 series ATS are mainly used for the state of load,widely applicable to the fire,postal communication,hospitals,hotels Urban rail transport and high-rise buidings,industrial assembly line,television stations need electricity for the important parts.Main power Emergency Power can be power grids,with Self-excitation generator sets,battery,and so on.
Small in volume, convenient in installation
Self-input and self-restoring, self-input without self-restoring, automatic or manual is all dependson youYou can choose integral type or split type 2Pole,3Pole, 3Pole, all you can choose
Running parameter could be adjusted.
With the development of society.Poeple request to the ability of power supply are becoming more and more strictly.Two sources have been used in many conditions to ensure the reliability of power supply.YMD1 series automatic transfer switch is such a new product designed according to this requirement.As the products has the function of Self-input and Self-restoring,Self-input without Self-restoring,Utility-utility,utility-generator,it can detect the three phases fore wires of utility and the three phase voltage of two sources at the same time.If the primary power is failure,such as over voltage,under voltage of loss phases,it will changeover from the abnormity power to the normal power automatically.The products system in utility-generator,could be sent out a signal.It's perfect capability,reliable,flexible easy to use,wide range of dual-power products,up to the domestic level.

The model of PC class ATS and it's meaning
YMD1-X Y Z / n

YM:Enterprise Code.

X: Current Rank

Y: In-company Models(NA,N,C,T,TA,M,Q)

Z: ---R:self-input and self-recover

---S:self-input without self-recover

---F:Utility-Generator

---L:Intelligent LCD Controller

n:The number of Poles

---2:2poles(Always Below 125A)

---3:3poles

---4:4poles

Model		YMD1-32NA			YMD1-125NA
Rated current (A)		16, 20, 25, 32			40,50,63,80,100,125
Rated voltage (V)		230V AC 50/60 HZ
Operating current (A)		5
Rated short time current (KA)		10
Working life	Mechanical	8000times
	Electric	3000times
Pole No.		2P	3P	4P	2P	3P	4P
Net Weight(Kgs)		4.2	4.7	5.2	5	5.5	6.5
Operation cycle (s/time)		10

Item	Pole	YMD1-32NA	YMD1-125NA
A	2P	216	237
	3P	243	274
	4P	270	311
B	2P	196	217
	3P	223	254
	4P	250	291
E		12	20
F		27	37
