2-Wire Digital Pressure Transmitter Mpm4760

Name: 2-Wire Digital Pressure Transmitter Mpm4760
Brand: all-electronics-online.com
SKU: 741186065
Availability: InStock
Rating: 5 (128 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM4760
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Gauge:	RS485
Key Words:	Digital Pressure Transmitter
Function:	Local Indication Type
Accuracy:	0.25
Indicating Pressure Reference:	General Pressure Gauge
Application:	Industrial
Structure:	0-100MPa
Connection Type:	Plug Connector
Measuring Range:	-0.1...0~0.01...100MPa
Technique:	Non-Linerity Correction

Product Description

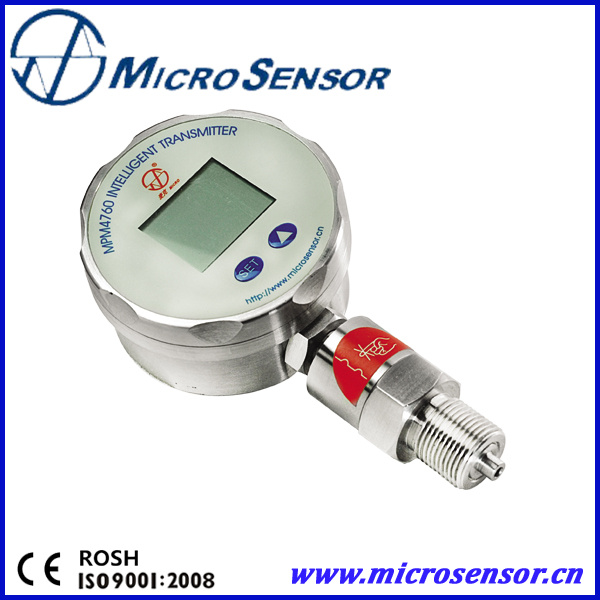

2-Wire Digital Pressure Transmitter MPM4760
Features:
1.Digital temperature compensation;
2.RS485 communicator;
3.Compact size;
4.LCD indicator;
5.Pressure port as you require;
6.Battery power supply available

Applications:
1.Chemical industry;
2.City water;
3.Power station;
4.Drainage;
5.Precise measurement and display.

Specifications:

Basic range(MPa)	0.1	0.2	0.35	0.7	1.0	2.0	3.5	7.0	10	20	35	60	100
Overpressure(MPa)	0.15	0.3	0.5	1.0	1.5	3.0	5.0	10	15	30	50	90	110
Note: the min. available shrinking pressure range is 1/5 of basic pressure range; Vacuum pressure measure is available; For the other pressure range between min. range and max. range, but not included in the above table, we enlarge the above basic pressure to produce (overpressure unavailable)

Total accuracy	± 0.1%FS(min. ) ± 0.25%FS(typ. ) ± 0.5%FS(max. )
Basic error	± 0.075%FS(min. ) ± 0.15%FS(typ. ) ± 0.25%FS(max. )
Stability	± 0.25%FS/year	Total accuracy: including non-linearity, hysteresis, repeatability and thermal error; Room temperature rated value(20± 2)º C; Compensation temp including non-linearity, hysteresis and repeatability; For special temperature requirement, please feel free to contact our company.
Compensation temp.	(-10~80)º C
Operation/storage temp.	(-30~80)º C
Power supply	(8~ 28)VDC
Output signal	(4~20)mADC
Output signal	RS485 interface
Load	(4~20)mADC output, (U-8V)/0.02A(Ω )
Load	RS485, can connect 99 transmitters
Electric connection	GDM307 4-pin plug
Insulation	100MΩ /50V
Shock	20g, (20~5000)Hz
Impact	20g, 11ms
Protection	IP65
Media compatibility	Diaphragm: stainless steel 316L
	Pressure interface: stainless steel
	Housing: stainless steel 1Cr18Ni9Ti
	O-ring: Viton
Weight	About 420g

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
