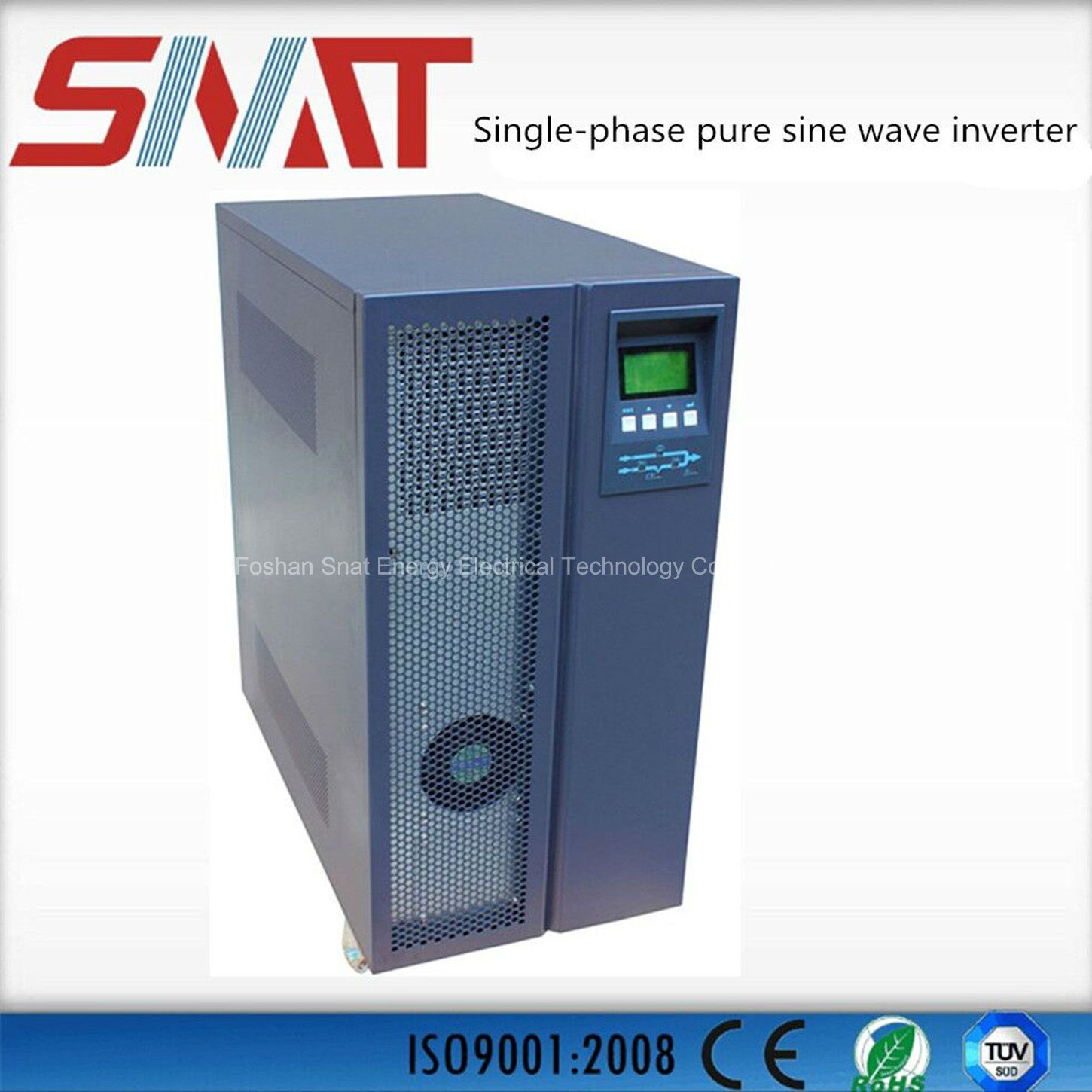

20000W Single -Phase Power Inverter for Power System

Prod Model:	SN-20KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Snat
Sine Wave Inverter:	6kw-20kw
Work Time:	Supply Power Day and Night with Battery
Sample Order:	Accept
Accessory:	Controller, Inverter, Battery.Power System
Protection:	Shirt-Cuirt, High/Low Voltage, Overload
Export Markets:	Gloal
Phase:	Single
Power Source:	Solar Power

Product Description


PRODUCT OVERVIEW
The product is a highly stable and reliable power supply designed by SNAT to meet the high reliability requirement for power grids and network systems. Its high quality enables it to provide safe, reliable and overall protection for loads such as data centers of users, industrial control equipment and household appliances, it has perfect protection functions and high reliability because of a full digital vector control technology based on real-time processing by DPS, MCU and DDc. In both the pure sine wave output mode and the inversion mode, it can output a pure sine wave power supply with low distortion, thus providing the best power supply guarantee for the loading equipment of users.

MAIN FEATURES

---High reliability
Frequency tracking, noise filtering and low distortion in inverter output because of double-conversion design.

---High adaptability
A wide range of input frequency, which realizes stable, operation of fuel generators

----High optimal performance of the battery
An intelligent battery management technology, which guarantees a longer battery life and decreases the time of battery maintenance
An advanced constant -voltage charge technology, which active the battery to the most extent, saves the charge time and guarantees a longer battery life

----Overall and reliable protection
A power-on test function, which can avoid the faults because of hazards of the inverter

----Overall automatic protection and alarms such as output overload protection

-----Efficient IGBT(Insulated Gate Bipolar Transistor )inversion technology
Good high -speed switching feature, large -voltage and voltage -current operating characteristics, and voltage drive of IGBT(The fifth -generation IGBT has a lower saturation voltage drop and higher operation efficiency and reliability)

Modell			SN-20KW
Rated capacity			20KW
Inverter	Input of the main supply	Voltage	AC220V±20%
		Frequency	50HZ/60HZ±10%
	Input of yhe battery	Type	Sealed lead-acid maintenance-free inverter(sealed gel maintenance-free inverter)
		Rated voltage	DC96V(110V/120V192V/220V240V)
		Voltage of floating charge	DC110V{13.6 of each battery *battery quantity(such as 10.8V*8=86.4) }
		cut-off voltage	DC110V{13.6 of each battery *battery quantity(such as 10.8V*8=86.4) }
	Output	Voltage	220V±1%
		Voltage adjustment	voltage stabilizing:±1%;dynamic:±2%(0-100% load change<20ms)
		Frequency stability	50Hz/60Hz ±0.5%(when powered by the battery)
		Torsion frequency of frequency	<1s
		Harmonic distortion	linear load:<3%(full load );total rectifier harmonic:<5%
		Overload capacity	120%,10;130%20s
		Waveform	sine wave
	Efficiency	Inversion efficiency	load 100%≥95%
	Switching time	Switching between the mains supply and the battery	<50ms
		Switching between the inverter and the bypass	<50ms
Conditions	Temperature		-10--50ºC
	Relative humidity		20%-93%( no condensation)
	Altitude		below 1000m
Noise			45-55dB(measured 1m away)
Dimensions			690*370*763
Weight			160

Warranty:
Quality warranty for 1 year;Parts will be shipped for free during warranty period.

Delivery time:
Stick to contract.

Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc

Accept special design requirements.
