| Prod Model: |
DXP2020WUPS-10A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
2000W |
| Surge Power: |
4000W |
| Output Frequency: |
50/60Hz |
| Form Wave: |
Pure Sine Wave Inverter |
| Warrancy: |
12 Months |
| Sample Order Firstly: |
Acceptable |
| OEM Service: |
Welcome |
| Colour: |
Sliver |
| Multi-Protection Function: |
Yes |
Product Description

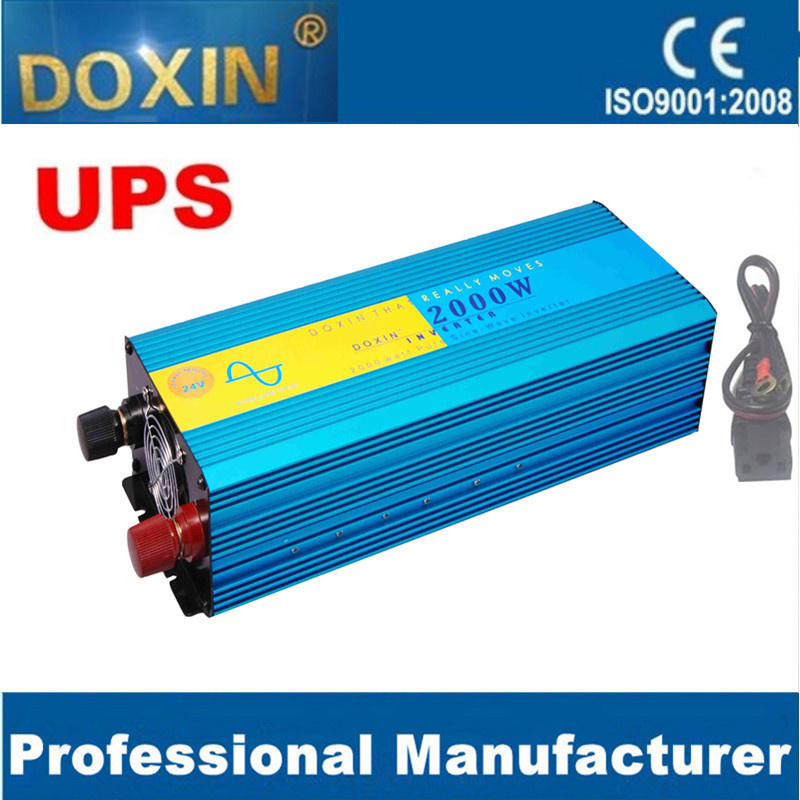

2000W pure sine wave inverter with charger&UPS function
Product Feature:
1. Factory 1000W pure sine wave power inverter
2. Output waveform: Pure sine wave
3.12 months warranty
4. OEM service
5. Package: Blister inner packing, carton mass packing.
6. Offer battery cable
7. High conversion efficiency, quickly start;
8. Excellent double-faced circuit board and components
9. Heat-Sink built in internal and come with Auto temperature control fan for heat dissipation
10. CE approved
Protection Funtion:
1. Buzzer Alarm
2. Over-Load Protection
3. Over-Voltage Protection
4. Low-Voltage Protection
5. Over-Temperature Protection
6. Short-circuit protection
Why Choose Pure Sine Wave Inverter?
The pure sine inverter, which is also referred to as a "true" sine wave, known as a pure sine wave
Inverter uses 12 volt battery power as direct current and can produce 220 240 volt pure alternative
Current. The produced electricity from a true sine wave inverter is very much clean and pure and this
Pure current can play sensitive electronic equipment such as Laptop, Television, Lights, sensitive medical equipment and many more without any lines through screen or making noise or making hot
When the equipment runs. This true sine wave inverter also prevents voltage up-downing while a sensitive equipment is running through it.
The benefits of using a pure sine wave inverter include:
· All equipment currently on the market is designed for use with sine waves.
· Some appliances, particularly microwaves and variable speed motors, will not produce full output if they do not use sine wave power.
· Some appliances, such as light dimmers and bread makers, will not work at all without sine wave power.
Application:
Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Simply connect with 12V/24V Battery as in a Car, Motorcycle, Camper or Boat and use 110V/ 220V electrical appliances.
Note:
Don't use them in the high temperature
Keep the battery and charge for them
Don't overload the voltage
Don't use when the low voltage alarm is beginning
FAQ
1. What is inverter?
Inverter is an electronic equipment that turn 12V/24V/48V DC into 110V/220V AC. High
2. How many kinds of output wave form for inverters?
Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high quality AC and carry various loads, while it requires high tech and high cost. Modified sine wave inverter load poorly not carrying inductive load, but the price is moderate.
3. How do we equip an appropriate inverter for battery?
Take a battery with 12V/50AH as an example. Power equal current plus voltage then we know the power of battery is 600W. 12V*50A=600W. So we can choose a 600W power inverter according this theoretical value.
4. How long can I operate my inverter?
The runtime (i. e., amount of time that the inverter will power connected electronics) depends on the amount of battery power available and the load that it is supporting. In general, as you increase the load (e. G., plug in more equipment) your runtime will decrease. However, you can attach more batteries to extend the runtime. There is no limit to the number of batteries that can be connected.
5. What's the difference between an inverter and inverter/charger?
An inverter simply converts DC (battery) power into AC power and then passes it along to connected equipment. An inverter/charger does the same thing, except that it is connected to an AC power source to continuously charge the attached batteries when AC utility power is available. In the case of a power outage, the inverter will automatically switch to battery power to provide power to connected equipment.
6. How fast will my inverter respond to a power outage?
During an outage, the inverter will transfer from utility to battery power in about 16.6 milliseconds
Pure Sine Wave Inverter
(DC12V/24V/36V/48V/60V--AC110V/120V/220V/230V/240V) |
| CATALOGUE (DC12V_AC220V) |
| Item No. | DXP150 | DXP300 | DXP505 | DXP808 | DXP1010 | DXP1212 | DXP1515 | DXP2020 | DXP2525 | DXP3030 |
| * Max continuous power: | 150W | 300W | 500W | 800W | 1000W | 1200W | 1500W | 2000W | 2500W | 3000W |
| * Peak Load Power Rate: | 400W | 600W | 1000W | 1600W | 2000W | 2400W | 3000W | 4000W | 5000W | 6000W |
| * Input Voltage: | DC 12V |
| * NO load current draw: | <0.4A |
| * Input DC voltage Range: | DC10-15V |
| * Output Voltage Range: | AC110V/120V/220V/230V/240V+/-5% |
| * Output Frequency Range: | 60/50Hz+/-0.1Hz |
| * Max Outer Temperature: | < 65 °C |
| * Max Power Efficiency: | > 86% |
| * High Voltage Cut Off: | >DC15V±1V |
| * Low Voltage Alarm: | DC 10.5±0.3V |
| * Low Voltage Cut Off: | DC10V±0.3V |
| * Protection Function | Overload & Short-circuit & Over-current & Battery Reverse Connection Protection |
| *THD: | ≤5% |
| * Cooling: | Built-in Temperature Controlled Fan |
| * Product Size(mm): | 167*95*55 | 175*150*70 | 270*150*70 | 370*150*70 | 370*150*70 | 370*150*70 | 370*150*70 | 435*150*90 | 430*155*130 | 460*170*130 |
| * Packing size | 49*46*47cm
(40pcs/ctn) | 61*37.5*26cm
(8pcs/ctn) | 49*46*47cm(6pcs/ctn) | 51*46*47cm
(6pcs/ctn) | 51*46*47cm
(4pcs/ctn) |
| * N.W: | 0.55Kg | 1.11Kg | 1.65Kg | 2.15Kg | 2.15Kg | 2.45Kg | 3.4Kg | 3.4Kg | 3.85KG | 5.7KG |
| * G.W: | 0.75Kg | 1.25Kg | 2.2Kg | 3.35Kg | 3.35Kg | 3.65Kg | 4.3Kg | 4.3Kg | 4.8KG | 6.65KG |
Guangzhou Doxin Electronic Factory is a manufacturer specialized in automobile electronic products. Currently, we mainly produce Car Power Inverter, Solar charge controller, Battery charger, transformer, Power adapter, Mobile phone charger, car emblem badge, wheel center cap, tire valve cap, car wheel sticker, car logo keychain which was established at the beginning of 1998.
We utilize advanced encrypting technologies, full automatic production line, Multi function testing. With features of "high efficiency, detection function, intelligent and environmental protection and energy saving", Products meet EU RoHS Green Directives, and wildly used in Car, Home furnishing, Outdoor, Travel, Patrol, Fieldwork ect.
Our production base with the perfect size was built and the base passed ISO9001: 2000 quality system certification, CE certification, RoHS certification, LVD certification, ETL certification and E-MARK. Modern factories, outstanding management and advanced technology become the best guarantee of product quality. Our products are selling well in our country, Europe, the United States, Middle East, Southeast Asia and other area with unique and innovative design, low interference technology, high performance-price ratio, the best technology and excellent quality. With over 10 years of R & D and production experience, OEM service. Our company has become one of the famous power inverter manufacturers in China.
Our Company continued to expand into international markets, at the same time, efforts to develop the domestic market, "DOXIN" products have caused widespread concern in the industry through the domestic marketing system, such as dealer network, OEM market. Car owners comprehensive experience to DOXIN forefront automotive technology products, which bring them convenience and happiness, once again demonstrates the strength and determination of the Guangzhou DOXIN electronic factory.
Adhering to the business principle of "Achieve Mutual Benefits from Good Cooperation", our employees are looking forward to establishing business relationships with clients both in the domestic and the overseas markets.
