| Prod Model: |
PV2000-12/24 power inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input DC Voltage: |
12V Solar Inverter |
| Model: |
PV2000-12 Pure Sine Wave Inverter |
| Rated Power: |
2000W Battery Inverter |
| Dimension: |
L*W*H=442*218*179mm |
| Weight: |
18kgs Pure Sine Wave Power Star Inverter |
| Frequency: |
50Hz/60Hz(Auto Sensing) |
| Peak Power: |
3times of Rating Power |
| AC Input Phase: |
Single Phase |
| Output AC Voltage: |
110/120/130VAC 220/230/240VAC |
| Short Circuit Protection: |
Yes, Shutdown After 10ms |
| Phase: |
Single |
| Power Source: |
Solar Power |
| Application: |
Solar Station, Wind Turbine and Home Inverter |
| Brand: |
Powerstar/Cspower/OEM |
Product Description

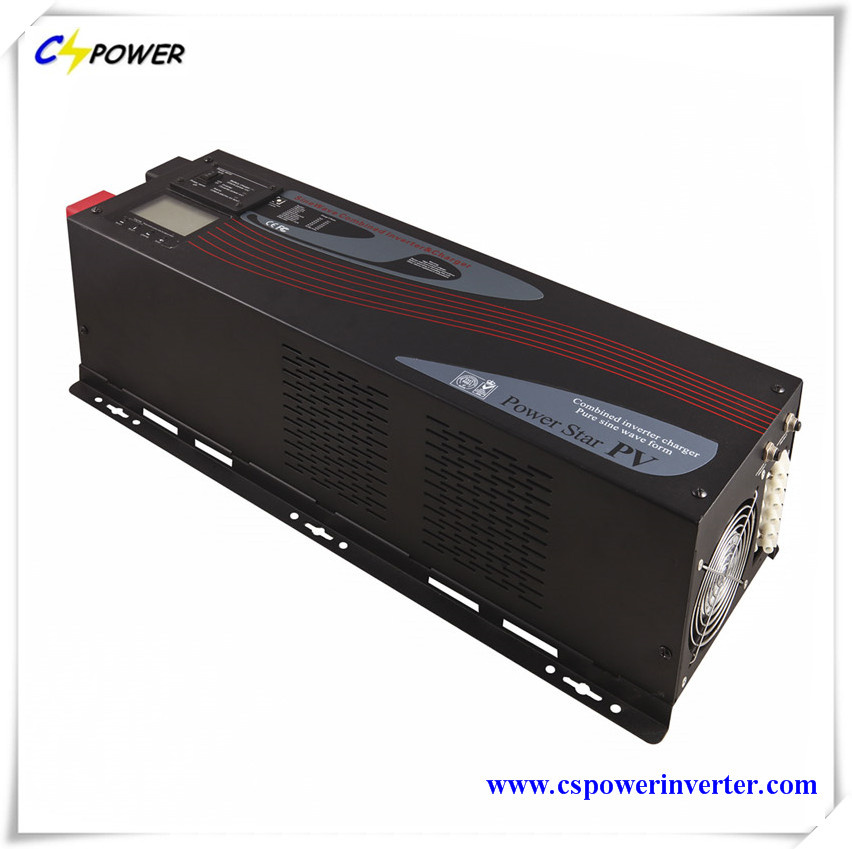

2000W Pure Sine Wave Power Inverter with Digital Display PV2000-12/24
Pure Sine Wave Power Inverter widely applied in wind generator, solar power system, house, vehicle,
ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch station, emergency EPS. Our off-Grid Solar Inverter capacity from 500W-10KWPure Sine Wave Inverter/ Solar Inverter for choose.
Characteristics:
Battery Inverter Solar Inverter Pure Sine Wave Inverter, top quality low frequency and single Inverter,
Peak Power: 3 times as rated Power, Optional remote control, Bypass, and Auto-reconnection.
Voltage 110/120/230 and 220/230/240VAC 50Hz or 60Hz adjustable via LCD,
Models available from 500W, 750W, 1000W, 1500W, 2000W, 3000W, 4000W, 5000W, 6000W, 7000W and 8000W, 10000W.
2kw Battery inverter features:
1. Input Voltage 12V /24VDC optional
2. Output Voltage 115V /230V AC optional
3. Portable power for AC products, AC outlets for connecting multiple loads
4. High surge capacity for products that require more power to start
5. High efficiency converts virtually all of the battery's power to AC
6. Mounting brackets for convenient installation
7. Heavy duty stud-connection mounting
Main Features:
1.LED/LCD digital display show voltage, load and battery info in real time.
2.Peak power is three times of rated power.
3.Can work with inductive load such as air conditioner, motor door and so on.
4.Pure sine wave output, available for sensitive load.
5.4-step progressive charging, 7 battery type selector.
6.Fast and powerful charger with 35A and 75A/90A.
7.Accept generator's energy output.
8.High power factor 0.9, low power consumption.
9.Automatically transfer between battery and line modes.
10.Microprocessor control guarantees high reliability.
11.Bypass without battery connected.
12.Remote control function.
13.Protection against: Over load, over temperature, over charging, low battery
14.Reverse connection (optional by hard connector), Blackouts
Protection features:
1.Overload and over temperature shut down
2.Low voltage and over voltage alarm
3.Low voltage and over voltage cut off
4.Input reverse protection
5.Short circuit protection
Applications
1. Solar electric energy generation
2. Wind power generation
3. Communication equipment
4. Industrial intellectual control system
5. Small sized emergency power supply system
6. Travel set equipment, industrial equipment, office equipment, kitchen equipment, household electrical equipment, power tools and so on
CSPOWER goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
Welcome to contact us for the battery details.
Contact CSPOWER details:
Web: www.cspowerinverter.com
www.csbattery.net
www.csagmbattery.com
www.cssolarbattery.com
http://cspower.en.made-in-china.com/
| Product Series | PV
1000 | PV
1500 | PV
2000 | PV
3000 | PV
4000 | PV
5000 | PV
6000 |
| General Specification | Input Wave form | Sine wave (Utility or Generator) |
| Nominal voltage | 120VAC | 230VAC |
| Low voltage trip | 90v + 4% | 184v/154v + 4% |
| Low voltage reconnect | 100v + 4% | 194v/164v + 4% |
| High voltage trip | 140v + 4% | 253v + 4% |
| High voltage reconnect | 135v + 4% | 243v + 4% |
| Max input AC voltage | 150VAC | 270VAC |
| Nominal input frequency | 50Hz or 60Hz (Auto detect) |
| Low freq trip | 47Hz for 50Hz, 57Hz for 60Hz |
| High freq trip | 55Hz for 50Hz, 65Hz for 60Hz |
| Output wave form | (Bypass mode) same as input |
| Overload protection | Circuit breaker |
| Short circuit protection | Circuit breaker |
| Transfer switch rating | 30amp or 40amp |
| Efficiency on line transfer time | 95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | yes |
| Max bypass current | 30amp or 40amp |
| Bypass overload current | 35amp or 45amp: Alarm |
| Inverter Specification Output | Output wave form | Pure sine wave |
| Output continuous power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuous power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power factor | 0.9-1.0 |
| Nominal output voltage rms | 120/230VAC |
| Output voltage regulation | 10% rms |
| Output frequency | 50Hz + 0.3Hz or 60Hz + 0.3Hz |
| Nominal efficiency | > 88% |
| Surge ratings | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes, fault after 10 seconds |
| Inverter Specification Input | Nominal input voltage | 12V | 24V | 48V |
| Minimum start voltage | 10V | 20V | 40V |
| Low battery alarm | 10.5V | 21V | 42V |
| Low battery trip | 10V | 20V | 40V |
| High voltage alram | 16V | 32V | 64V |
| Power saver | Below 25watts when enabled |
| Power saver | Same switched on/off on remote |
| Charge Mode Specification | Input voltage range | 95-127VAC | 194-243VAC/ 164-243VAC(W) |
| Output voltage range | Dependent on battery type |
| Charge current | 35A/70A |
| Battery initial voltage for start up | 0-15.7v for 12v (*2 for 24v; *4 for 48v) |
| Over charge protection shutdown | 15.7v for 12v (*2 for 24v; *4 for 48v) |
| Others | Remote control/RS232/USB | Yes, Optional |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 |
| 4000/5000/6000 Model: 598*218*179 |
| Net weight | PV1000 | PV1500 | PV2000 | PV3000 | PV4000 | PV5000 | PV6000 |
| 18kgs | 19kgs | 20kgs | 22kgs | 35gs | 38kgs | 40kgs |
Our Battery inverter / pure sine wave inverter from 500W to 10KW and solar batteries upto 2V3500Ah/6V420Ah/12V300Ah are exported to most global coutries such as Europe, USA, African, Russia, Australia etc. and get good reputation because of our favorable quality and stable performance.
Off-Grid solar Inverter
Pure Sine Wave Inverter
Solar Inverter
2KW Inverter
Battery Inverter
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
