| Prod Model: |
PV1000-PV10000 Pure Sine Wave Inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input DC Voltage: |
24/48VDC Inverter Charger |
| Model: |
PV5000-24/48 Solar Inverter |
| Rated Power: |
5000W Pure Sine Wave Inverter |
| Dimension: |
L*W*H=538*255*630mm off Grid Power |
| Weight: |
56kgs Power Inverter |
| Frequency: |
50Hz/60Hz(Auto Sensing), Solar Power Inverter |
| Peak Power: |
3times of Rating Power, off Grid Inverter |
| AC Input Phase: |
Single Phase, Low Frequency Inverter |
| Output AC Voltage: |
110/120/130VAC 220/230/240VAC |
| Short Circuit Protection: |
Yes, Shutdown After 10ms |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Solar Power |
| Output Power: |
>1000W |
| Application: |
Solar Station, Wind Turbine and Home Inverter |
| Certification: |
SGS |
| Brand: |
Powerstar/Cspower/OEM |
Product Description

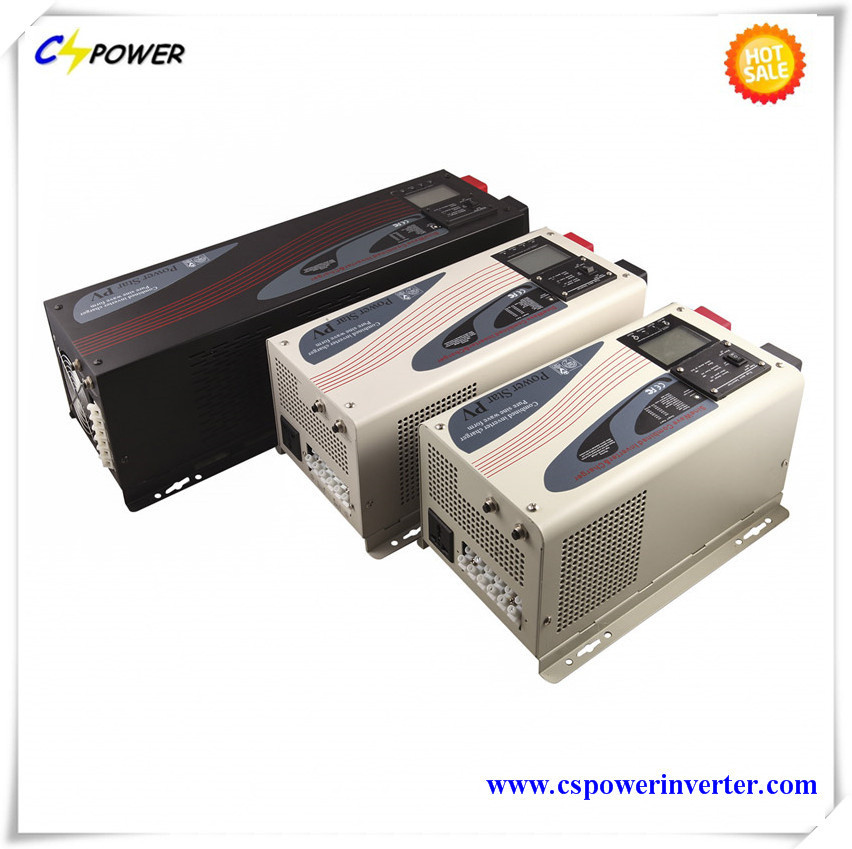

off Grid 1kw-10kw Pure Sine Wave Inverter with LCD display
Off-Grid solar Inverter is widely applied in wind generator, solar power system, house, vehicle, ship,
navigation and places where lack of city power, mobile electricity work and telecommunicationsdevice,
launch station, emergency EPS.
1. CE certificate approval
2. Pure sine wave output
3. With built in charger
Protection Features:
1.Overload and over temperature shut down
2.Low voltage and over voltage alarm
3.Low voltage and over voltage cut off
4.Input reverse protection
5.Short circuit protection
Characteristics:
1. Input Voltage 12V/24/48VDC optional
2. Output Voltage 115V /230V AC optional
3. Portable power for AC products, AC outlets for connecting multiple loads
4. High surge capacity for products that require more power to start
5. High efficiency converts virtually all of the battery's power to AC
6. Mounting brackets for convenient installation
7. Heavy duty stud-connection mounting
8. Peak Power:3 times as rated Power
9. Optional remote control, Bypass, and Auto-reconnection.
10. Voltage 110/120/230 and 220/230/240VAC 50Hz or 60Hz adjustable via LCD
11. Capacity available from 500W, 750W, 1000W, 1500W, 2000W, 3000W, 4000W, 5000W, 6000W, 7000W, 8000W, 9000W and 10KW.
Main Features:
1.LED/LCD digital display show voltage, load and battery info in real time.
2.Peak power is three times of rated power.
3.Can work with inductive load such as air conditioner, motor door and so on.
4.Pure sine wave output, available for sensitive load.
5.4-step progressive charging, 7 battery type selector.
6.Fast and powerful charger with 35A and 75A/90A.
7.Accept generator's energy output.
8.High power factor 0.9, low power consumption.
9.Automatically transfer between battery and line modes.
10.Microprocessor control guarantees high reliability.
11.Bypass without battery connected.
12.Remote control function.
13.Protection against: Over load, over temperature, over charging, low battery
14.Reverse connection (optional by hard connector), Blackouts
Applications
1. Solar electric energy generation
2. Wind power generation
3. Communication equipment
4. Industrial intellectual control system
5. Small sized emergency power supply system
6. Travel set equipment, industrial equipment, office equipment,
7. kitchen equipment, household electrical equipment, power tools and etc.
CSPOWER goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
Our Battery inverter / pure sine wave inverter from 500W to 10KW and solar batteries upto 2V3500Ah/6V420Ah/12V300Ah are exported to most global coutries such as Europe, USA, African, Russia, Australia etc. and get good reputation because of our favorable quality and stable performance.
Welcome to contact us for the battery details.
Contact CSPOWER details:
Web: www.cspowerinverter.com
www.csbattery.net
www.csagmbattery.com
www.cssolarbattery.com
http://cspower.en.made-in-china.com/
| Product Series | PV
1000 | PV
1500 | PV
2000 | PV
3000 | PV
4000 | PV
5000 | PV
6000 |
| General Specification | Input Wave form | Sine wave (Utility or Generator) |
| Nominal voltage | 120VAC | 230VAC |
| Low voltage trip | 90v + 4% | 184v/154v + 4% |
| Low voltage reconnect | 100v + 4% | 194v/164v + 4% |
| High voltage trip | 140v + 4% | 253v + 4% |
| High voltage reconnect | 135v + 4% | 243v + 4% |
| Max input AC voltage | 150VAC | 270VAC |
| Nominal input frequency | 50Hz or 60Hz (Auto detect) |
| Low freq trip | 47Hz for 50Hz, 57Hz for 60Hz |
| High freq trip | 55Hz for 50Hz, 65Hz for 60Hz |
| Output wave form | (Bypass mode) same as input |
| Overload protection | Circuit breaker |
| Short circuit protection | Circuit breaker |
| Transfer switch rating | 30amp or 40amp |
| Efficiency on line transfer time | 95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | yes |
| Max bypass current | 30amp or 40amp |
| Bypass overload current | 35amp or 45amp: Alarm |
| Inverter Specification Output | Output wave form | Pure sine wave |
| Output continuous power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuous power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power factor | 0.9-1.0 |
| Nominal output voltage rms | 120/230VAC |
| Output voltage regulation | 10% rms |
| Output frequency | 50Hz + 0.3Hz or 60Hz + 0.3Hz |
| Nominal efficiency | > 88% |
| Surge ratings | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes, fault after 10 seconds |
| Inverter Specification Input | Nominal input voltage | 12V | 24V | 48V |
| Minimum start voltage | 10V | 20V | 40V |
| Low battery alarm | 10.5V | 21V | 42V |
| Low battery trip | 10V | 20V | 40V |
| High voltage alram | 16V | 32V | 64V |
| Power saver | Below 25watts when enabled |
| Power saver | Same switched on/off on remote |
| Charge Mode Specification | Input voltage range | 95-127VAC | 194-243VAC/ 164-243VAC(W) |
| Output voltage range | Dependent on battery type |
| Charge current | 35A/70A |
| Battery initial voltage for start up | 0-15.7v for 12v (*2 for 24v; *4 for 48v) |
| Over charge protection shutdown | 15.7v for 12v (*2 for 24v; *4 for 48v) |
| Others | Remote control/RS232/USB | Yes, Optional |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 |
| 4000/5000/6000 Model: 598*218*179 |
| Net weight | PV1000 | PV1500 | PV2000 | PV3000 | PV4000 | PV5000 | PV6000 |
| 18kgs | 19kgs | 20kgs | 22kgs | 35gs | 38kgs | 40kgs |
FAQ:
Q1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipment.
Q2. How's the delivery time?
A. usually it will take about 3-5 days for sample and 10-15 days for bulk production
Q 3. What kind of material of transformer?
A. 100% copper which has a long sevice life and higher efficiency.
Q4. Would you accept to use our logo?
A. We would provide free OEM order depends on your quantity.
Q5. We want to know month capacity.
A. It depends on different model. Total capacity is upto 10000 pieces per month.
Q6. Where is your market?
A. Our products are popular all over the world as their cost-effictive perfermance.
We hope you can join us and make mutual benefit from our long-term and co-win cooperation.
Q7. Does the inverter connect with utility?
A.Yes.it is solar and utility complementary inverter.
it combine invert, charge and AC auto-transfer switch into one complete case,
it also can charge the battery by utility and generator.
