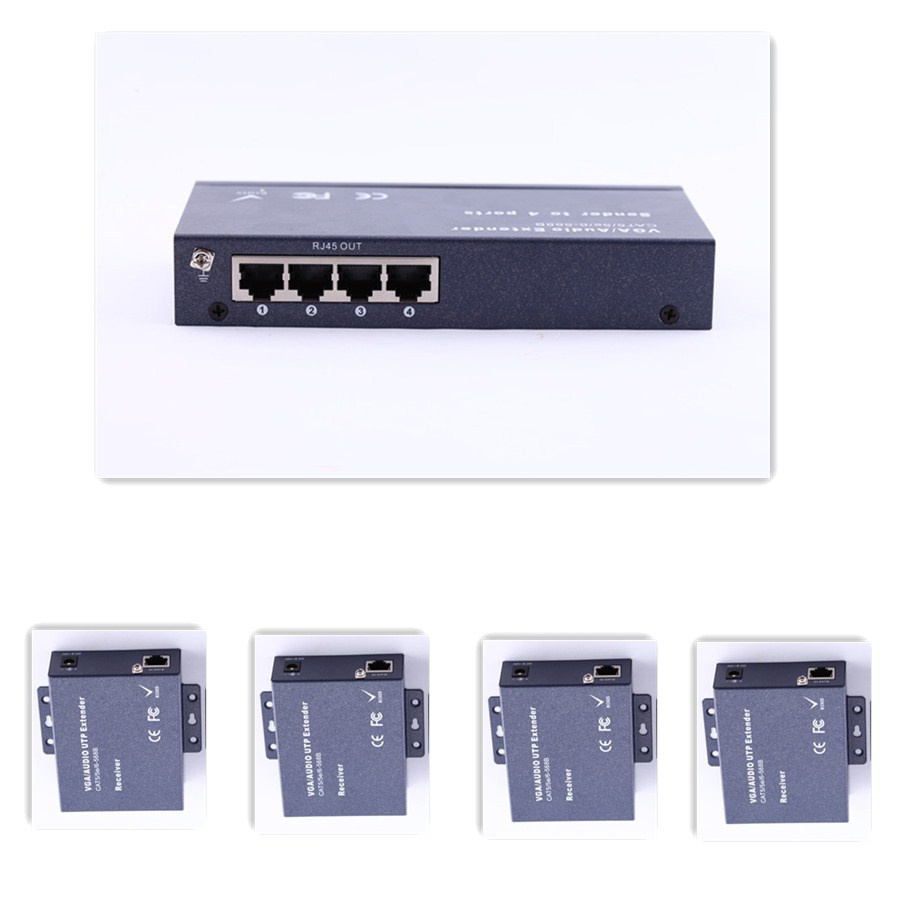

Name: 200m 1 to 4 VGA Extender
Brand: all-electronics-online.com
SKU: 730030235
Availability: InStock
Rating: 4.6 (75 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YL-104TR-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output: 4 Ports:	Distance:200m
Support Network:	Ethernet
Usage:	Laptop
Type:	Wired
Information Content:	Data

Product Description

This product is 4 channels active VGA video and audio transmitter allowing remote transmission of high-resolution VGA video and high-fidelity audio over UTP cable, in addition, this product provides one channel VGA video and audio output for local use

Features:
350MHz signal transmission bandwidth
High video resolution up to 1600x1200 pixels
Powered by either power adaptor or optional USB power
Transmission distance up to 150m working with UTP801AR-150
Transmission distance up to 300m working with UTP801AR-300
Supports VGA, SVGA, XGA, SXGA, WXGA, UXGA and multi-sync monitors
Built-in surge and transient protection with grounding rod on front panel
Super interference rejection

Power properties:
Adaptive voltage arrange: 12V DC (power adaptor)
Power consumption: <3.5W
Connectors: DC jack, USB-B
USB protecting current: 1000mA

Video properties:
Video input connector: 1* 15-pin HD15 male
Impedance: 75Ω
Local video output connector: 1* 15-pin HD 15 female
Impedance: 75Ω
UTP cable connector: 4* RJ-45
Impedance: 50Ω
Signal transmission band: >350MHz (-3dB)
Linear distortion: <3%
Synchronous signal: 0-5V, TTL PWL
Synchronous signal band: 1K-200KHz
DDC2: Virtual DDC

Audio properties:
Connectors: 2* 3.5mm audio jacks
Input impedance: 10kΩ
Output impedance: 600Ω
Transmission band: 10-20KHz
Physical properties:
Dimensions (LWH): 210*85*32mm
Housing material: Metal
Color: Blue
NW: 540g

Environmental:
Operating temperature: 0-70° C
Relative humidity (non-condensing): 10-85%
Storage temperature: -10-80° C

Accessories:
Power adapter:
Power supply input: 100-240V AC
Power supply output: 12V DC/1Amp
Wire length: 2m
USB cable (A-B)
Length: 1.5m
VGA cable (F-M)
Length: 1.2m
Audio cable (M-M)
Length: 1.5m
Casing gross weight: 500g
Casing volume (LWH): 155*78*28mm
