200m 1 to 8 VGA Extender

Name: 200m 1 to 8 VGA Extender
Brand: all-electronics-online.com
SKU: 730028985
Availability: InStock
Rating: 4.3 (52 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YL-108TR-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output: 8 Ports:	Distance:200m
Certification:	RoHS
Support Network:	Ethernet
Usage:	Laptop
Type:	Wired
Information Content:	Data

Product Description

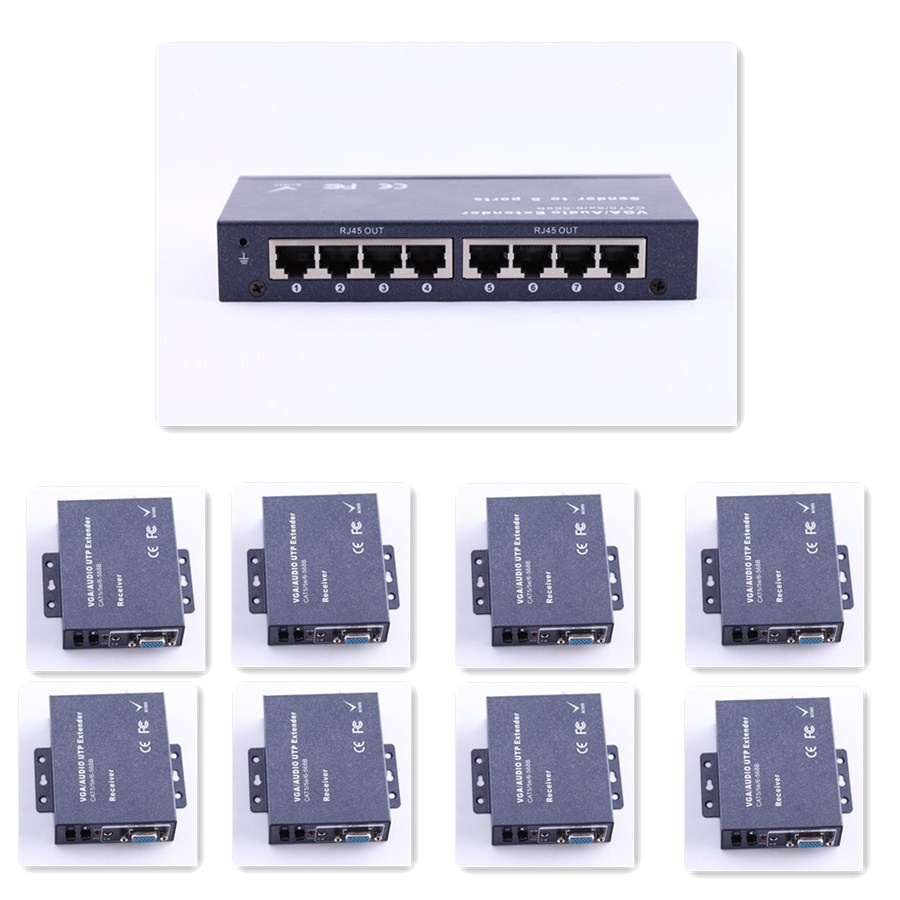

This product is 8 channels active VGA video and audio transmitter allowing remote transmission of high-resolution VGA video and high-fidelity audio over UTP cable

Features:
350MHz signal transmission bandwidth
Transmission distance up to 150m working with UTP801AR-150
Transmission distance up to 300m working with UTP801AR-300
Supports VGA, SVGA, XGA, SXGA, WXGA, UXGA and multi-sync monitors
High video resolution up to 1600x1200 pixels
Built-in surge and transient protection
Super interference rejection

Power properties:
Power supply: 12V DC (power adaptor)
Power consumption: <20W
Power switch: Supported

Video properties:
Video input connector: 1* blue 15pin HD15 male
Impedance: 75Ω
Local video output connectors: 3* blue 15-pin HD15 female
Impedance: 75Ω

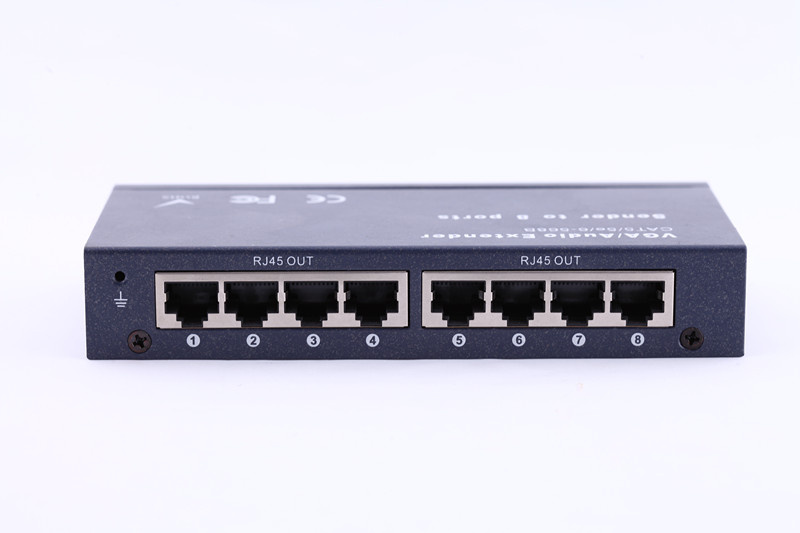

UTP cable connectors: 8* RJ-45
Impedance: 50Ω
Signal transmission band: >350MHz (-3dB)
Linear distortion: <3%
R, G, B signal distortion: <2ns
Common-mode interference rejection: 65dB (typical)
Synchronous signal: 0-5V, TTL PWL
Synchronous signal band: 1K-200KHz
Synchronous signal delay: <15ns
DDC2: Virtual DDC

Audio properties:
Connectors: 2* 3.5mm audio jack
Input impedance: 10kΩ
Output impedance: 600Ω
Transmission band: 10-20KHz

Protections:
Lightning protection: 1, 000V, 10/700us
IEC61000-4-5
ESD
Contact discharge: 2, 000V
Air discharge: 4, 000V
IEC61000-4-2

Physical properties:
Dimensions (LWH): 575*275*90mm
Housing material: Metal
Color: Blue

Environmental:
NW: 0.6 kg
Operating temperature: 0-55
Relative humidity (non-condensing): 0-95%
Storage temperature: -20-80

Accessories
VGA cable (F-M)
Length: 1.2m
Audio cable (M-M)
Length: 1.5m
Standard power cable
Length: 1.2m
Casing gross weight: 2.57kg
Casing volume (LWH): 575*275*90mm
