Product Description

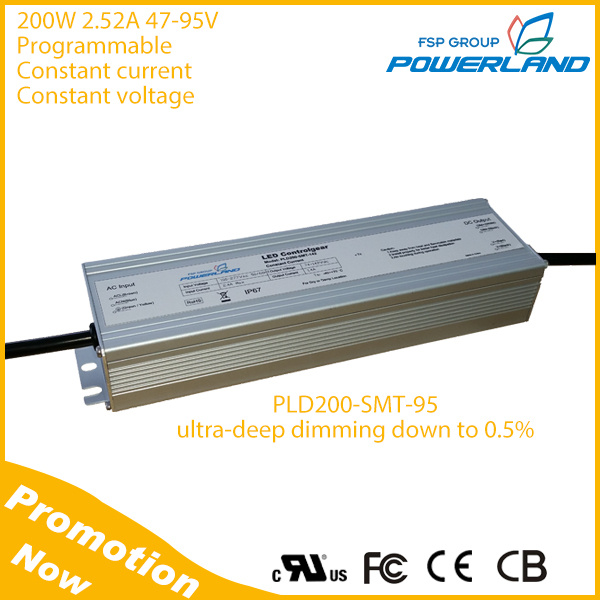

200W Outdoor Programmable Constant Current / Constant Voltage Led Driver
UL cUL List
0-10V / PWM / Rset / Clocking / DMX Dimming
Ultra-deep dimming down to 0.5%
PLD200-SMT-95 series offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series are programmable up to 2.52A, and designed for 0(0.05)-10V /PWM/Rset/Clock/ DMX ultra-deep dimming applications. ApplicationsOutdoor & Indoor LED lights
Led lights with flexible current settingsStreet lights, High bay and low bay lights, LED panels
Specification Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 200W | 47V
…
95V | 2.52A | 94.5% | 90ºC | 2.7A | 230W | <20% | >0.95 |
Min. Operating temperature @-40ºC
12V/100mA Auxiliary output(optional)
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, External resistor, Clock, DMX dimming
Universal input voltage:90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 3kV. L/N-GND 6kV
EMC according to FCC part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection Electrical Specifications | Model |
PLD200-SMT-95
|
| Output Voltage |
47~95V
|
| Output Current |
2.52A
|
Output AUX Power Voltage (Optional) | 12V |
Output AUX Power Current (Optional) | 0-100mA |
Dimming
| 0(0.05V)~10V, PWM, External Resistor, Clock |
Current Programmable
| Yes |
Output Power
|
200W
|
Max. Current Ripple
| ±10% |
Voltage Range
|
90~305Vac
|
Frequency Range
|
47~63Hz
|
Max. Input Current
|
2.7A
|
Max. Input Power
|
230W
|
Power Factor
| >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency
|
93.5%
|
Max. Open Circuit Voltage
|
100V
|
THD
| <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
Protections
|
OVP, OTP, OCP, SCP
|
Environmental Protection
|
UL Dry & Damp & Wet
|
Working Temperature
|
-40~+70ºC
|
Max. Case Temperature
|
90ºC
|
Surge Protection
|
3kV/6kV
|
Agency Approbations
|
UL8750
|
Electromagnetic Compliance
|
Per Title 47 CFR Part 15 Class B
|
Ansi Surge Type
|
1.2/50μs Combination Wave (w/t 2Ω)
|
Isolation
|
Primary to Secondary: 3750Vac / 10mAMax / 60seconds
|
Dimension
| 230x68x42.5 mm (9.06x2.68x1.67 inch) |
Mounting Length
|
244 mm (9.61 inch)
|
Overall Length
|
254 mm (10.00 inch)
|
Weight
|
1.45 kg (3.20 lb)
|
Life Time
| 100,000 hours @ full load, 70ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Electrical Specification

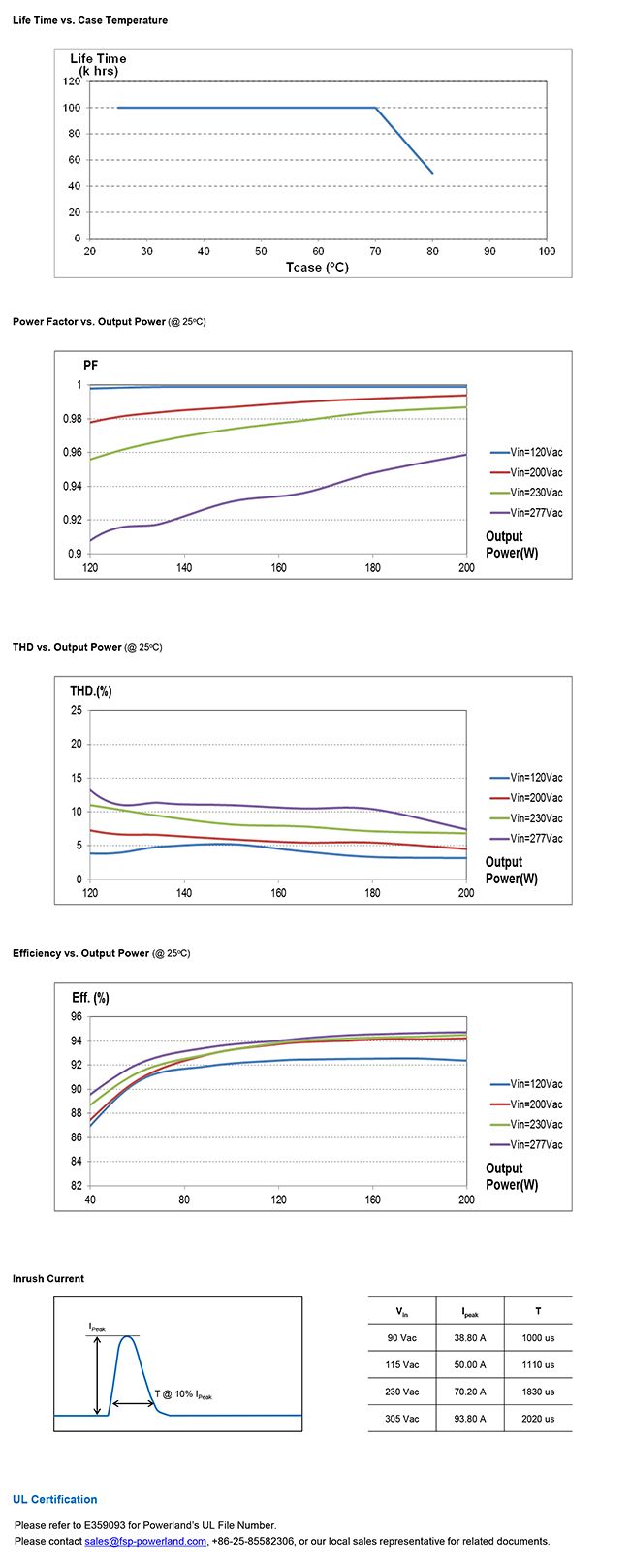

Performance Characteristics (Test wtih PLD200-SMT-285)
Glance at Powerland
FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.
Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.
Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
