| Prod Model: |
Z6BLD200 |
| Dimensions Of Device: |
104mm |
| Power: |
200W |
| Voltage: |
24V 36V 48V |
| Motor Speed: |
200~2500rpm |
| Reduction Ration: |
3~200 |
| Brush Life: |
2000h |
| Packaging Details: |
1. B3b Corrugated Standard Export Carton or Styrof |
| Delivery Detail: |
10~15 Days |
| Usage: |
Boat, Car, Electric Bicycle, Fan, Home Appliance, |
| Ambient Temperature Range: |
-20 Degree to 50 Degree |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brushless |
| Type: |
Zpn |
| Certification: |
SGS |
| Brand: |
Sy Motor |
Product Description

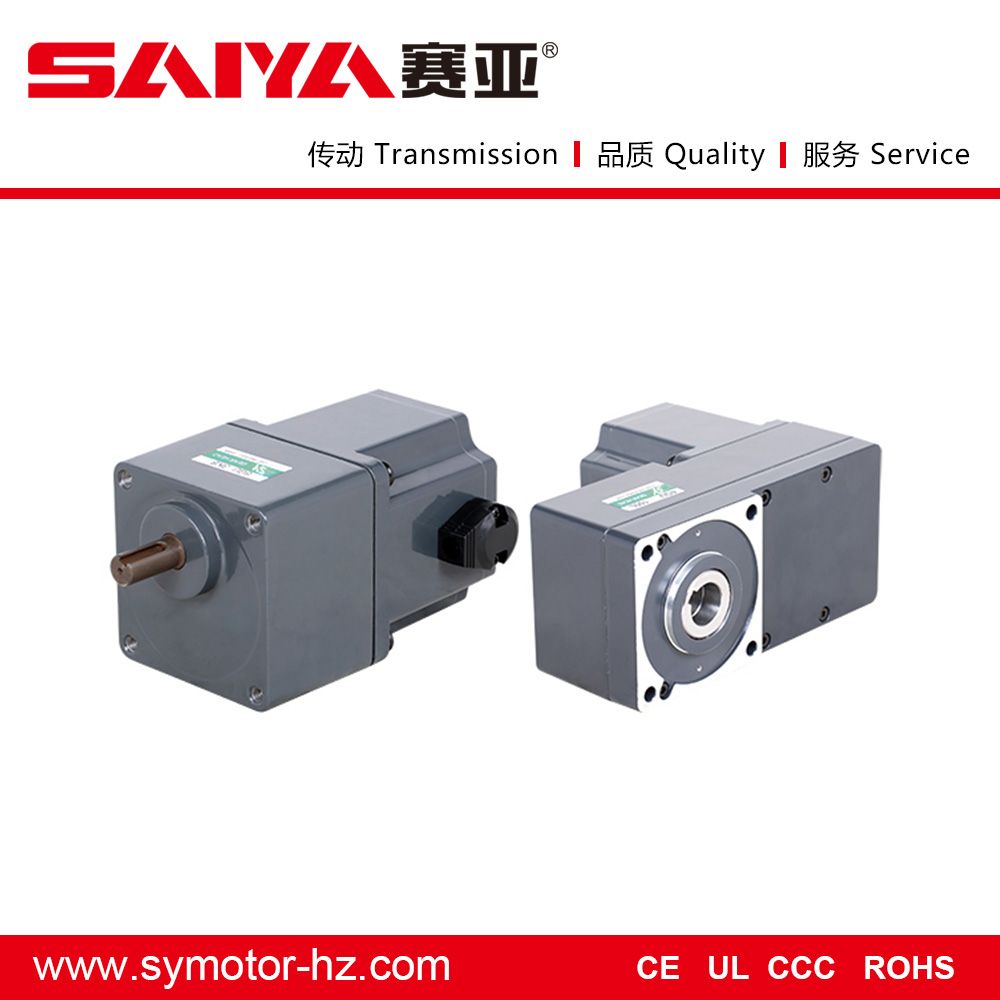

200W 24V Low Voltage Brushless DC Gearbox Motor for Robots1 SpecificationFeatures:
1. Dimensions of device: 60mm, 70mm, 80mm, 90mm, 104mm
2. Power: 6W, 15W, 25W, 40W, 60W, 90W, 120W, 250W
3. Voltage: 12V, 24V, 90V, 220V
4. Shape of motor shaft: 1) GN: Genaral Helical Gear
2) A1: Milling Keyway
3) GU: Reinforced Helical Gear
4) A: Flat type
5.Gear type: 1) GN: General Helical Gear
2) GU: Reinforced Helical Gear
Our company is specialized in mirco AC gear motors.
At present, there are three kinds of motors in our company:
1) micro gear motor include AC gear motor and DC gear motor;
2) small AC gear motor;
3) high precision planetary gearbox.
The usages:
They are widely used in machine tools, textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machines, packing machinery, and gumming machines.
The good quality:
With excellent equipment, advanced procedure, scientific management, and modern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service.
We hope that we canestablish long-term business relationships together with you for mutual business success.| type | Power
W | Voltage
V | No-load Parameters | Load Parameters | Brush life
H | Motor weight
kg |
| | | | Speed
r/min | Current
A | Speed
r/min | Torque
mN.m | Current
A | | |
| Z2D(W) | 6 | 12 | 3200 | 0.6 Max. | 2950 | 19 | 0.8 | 2000 | 0.6 |
| | 6 | 24 | 3200 | 0.3 Max. | 2950 | 19 | 0.5 | 2000 | 0.6 |
| | 6 | 90 | 3200 | 0.1 Max | 3000 | 19 | 0.2 | 2000 | 0.6 |
| | 15 | 12 | 3000 | 0.7 Max | 2800 | 51 | 2.0 | 2000 | 0.7 |
| | 15 | 24 | 3200 | 0.3 Max | 2950 | 48 | 1.0 | 2000 | 0.7 |
| | 15 | 90 | 3000 | 0.1 Max | 2900 | 49 | 0.3 | 2000 | 0.7 |
| Z3D(W) | 25 | 12 | 3300 | 1.0 Max | 3000 | 80 | 3.0 | 2000 | 1.0 |
| | 25 | 24 | 3200 | 0.6 Max | 2800 | 87 | 1.6 | 2000 | 1.0 |
| | 25 | 90 | 3200 | 0.2 Max | 3000 | 80 | 0.5 | 2000 | 1.0 |
| Z4D | 40 | 12 | 3200 | 2.0 Max | 3000 | 127 | 5.2 | 2000 | 1.8 |
| | 40 | 24 | 3200 | 0.8 Max | 3000 | 127 | 2.1 | 2000 | 1.8 |
| | 40 | 90 | 3100 | 0.3 Max | 2950 | 129 | 0.6 | 2000 | 1.8 |
| Z5D | 40 | 12 | 3200 | 2.0 Max | 3000 | 127 | 5.2 | 2000 | 1.9 |
| | 40 | 24 | 3000 | 1.0 Max | 2800 | 140 | 2.2 | 2000 | 1.9 |
| | 40 | 90 | 3100 | 0.3 Max | 2950 | 129 | 0.6 | 2000 | 1.98 |
| | 60 | 12 | 3200 | 2.0 Max | 2950 | 194 | 7.5 | 2000 | 2.2 |
| | 60 | 24 | 3100 | 1.5 Max | 2800 | 210 | 3.5 | 2000 | 2.2 |
| | 60 | 90 | 3200 | 0.3 Max | 3000 | 191 | 1.0 | 2000 | 2.2 |
| | 90 | 12 | 3300 | 3.0 Max | 2800 | 307 | 10.0 | 2000 | 2.2 |
| | 90 | 24 | 3100 | 1.5 Max | 2800 | 307 | 5.0 | 2000 | 2.2 |
| | 90 | 90 | 3100 | 0.5 Max | 2850 | 302 | 1.5 | 2000 | 2.2 |
| | 120 | 12 | 3400 | 3.0 Max | 3000 | 382 | 14.0 | 2000 | 2.2 |
| | 120 | 24 | 3300 | 1.5 Max | 2600 | 441 | 7.0 | 2000 | 2.2 |
| | 120 | 90 | 3100 | 0.3 Max | 3000 | 382 | 1.8 | 2000 | 2.2 |
| Z55D | 250 | 24 | 3600 | 4.0 Max | 3200 | 746 | 16.0 | 2000 | 3.2 |
| | 250 | 90 | 3300 | 2.0 Max | 3000 | 796 | 4.2 | 2000 | 3.2 |
| | 250 | 220 | 3100 | 0.2 Max | 2800 | 853 | 1.5 | 2000 | 3.2 |
| Z6D | 250 | 24 | 3600 | 4.0 Max | 3200 | 746 | 16.0 | 2000 | 5 |
| | 250 | 90 | 3300 | 2.0 Max | 3000 | 796 | 4.2 | 2000 | 5 |
| | 250 | 220 | 3100 | 0.2 Max | 2800 | 853 | 1.5 | 2000 | 5 |

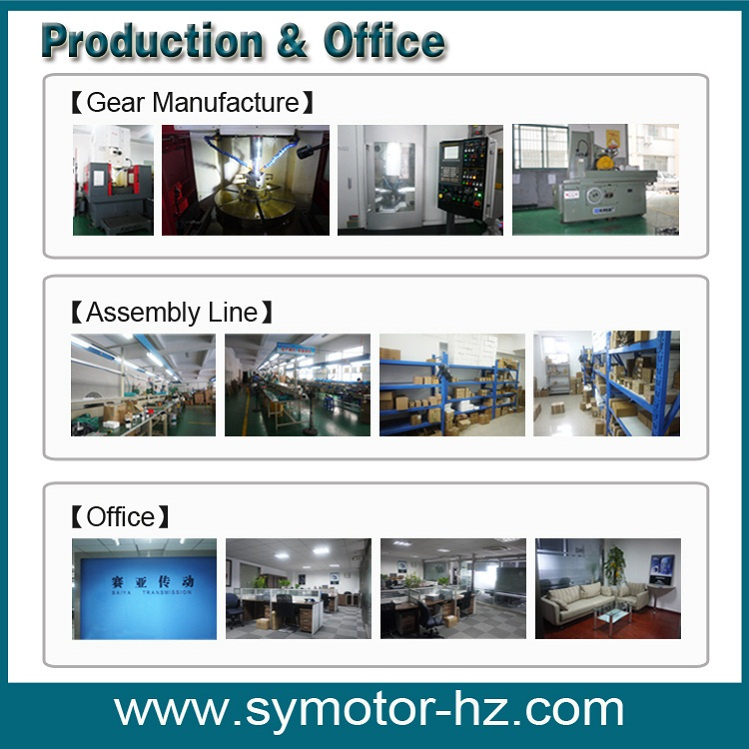

2 Company Information
3 Certificates
4 FAQQ1: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q2: How about Sample order?
A: Sample is available for you. please contact us for details.
Q3: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q4: How long is the deliver?
A: Devliver time depends on the quantity you order. usually it takes around 15 working days.
Q5: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q6: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q7:How to contact you:
If you have any questions, pls do not feel hesitate to ask us.
You can send us messages, emails or give us a call.
mobile: +86 15925686183
