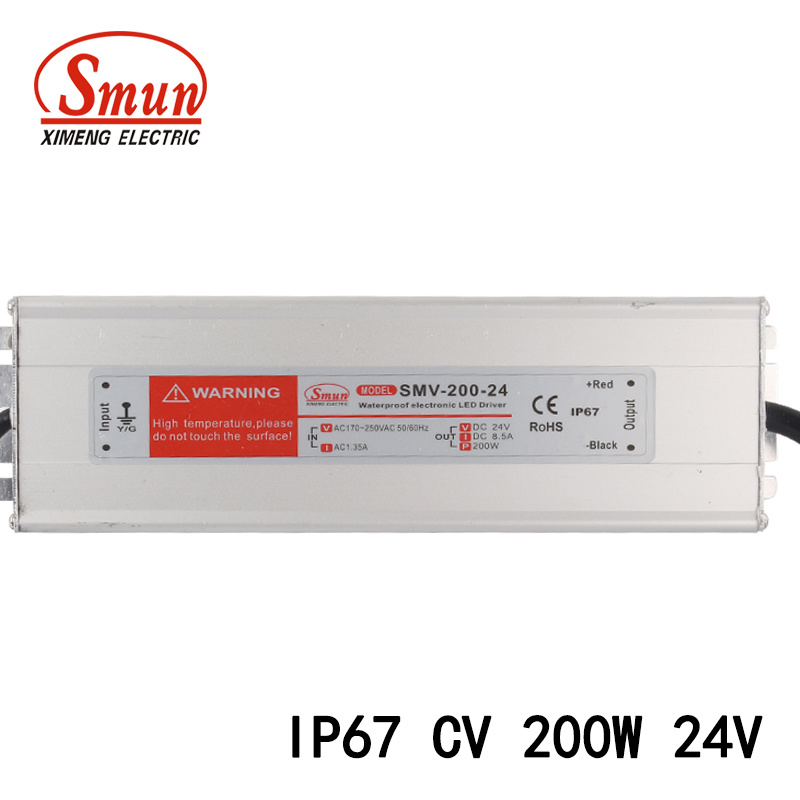

200W 24VDC 8.3A AC-DC Single Output Constant Voltage LED Driver

200W 24VDC 8.3A AC-DC Single Output Constant Voltage LED Driver
Price: US $ 15-21/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SMV-200-24
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input: 170~264VAC 47~63Hz
Input Current: 2A/230V
Output: 24V,0~8.3A
Power: 200W
Weight: 1.4kg
Size: 222*68*43
Waterproof Level: IP67
Wire Length: 25cm
Safety Standard: En60950 UL60950 GB4943
Working Temperature: -25~+50 Degee C
Usage: Vehicle
Output Type: Single
Driving Method: LED Regulator Voltage
Circuit Structure: PWM Controlled
Pack Sealing Size: 222*68*43
Brand: Smun

Product Description

200W LED driver power supply waterproof 12V 15V 24V 48V IP67 smv-200
LED Driver
*Small size, light weight, high efficiency, long life, safety and reliability
*Built-in PFC function
*Protections: Over voltage, Over current, Over temperature., Short Circuit
*Waterproof Rank: IP67
*Ideal for outdoor LED lighting, LED street lights, LED tunnel lighting and so on
SMV-200W  LED  driver  water-proof  power  supply
Model  NO.OUTPUTTolerancerangeefficiency
SMV-200-1212V, 0-16.7A± 1%150mV85%
SMV-200-1515V, 0-13.3A± 1%150mV86%
SMV-200-2424V, 0-8.3A± 1%150mV87%
SMV-200-4848V, 0-4.1A± 1%150mV88%
AC  input  voltage  range170-260vac  47-63hz
input  current2.0A/230V
AC  inrush  currentCold-start  current  60A/230V
Leakage  current< 3.5mA/240VAC
DC  adjustable  range± 10%  rated  output  voltage
Over  load  protection105-150%cut  down  output,   auto-recovery
Water-proof  degreeIP67
set  up,   rise, hold  up  time:200ms, 50ms  20ms
withstand  voltage:I/P-O/P: 1.5KVAC  1Minutes
I/P-FG: 1.5KVAC  1MInutes
O/P-FG: 0.5VAC  1minutes
working  temperature-20~+60° C, 20-90%RH
weight/packing:1.4kg
Size222*68*43MM
certificateCE    ISO9001    ROHS
Warranty  year2  year
ProtectionsShort  circuit  /  Over  load  /  Over  voltage
Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.

Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
