Zhejiang Ximeng Electronic Technology Co., Ltd. >> Non-Isolated 60VDC-24VDC 10A 240W DC to DC Converter Power Supply

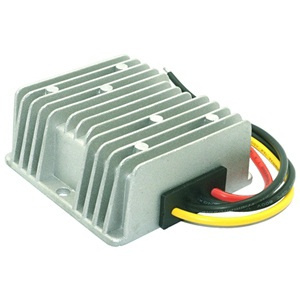

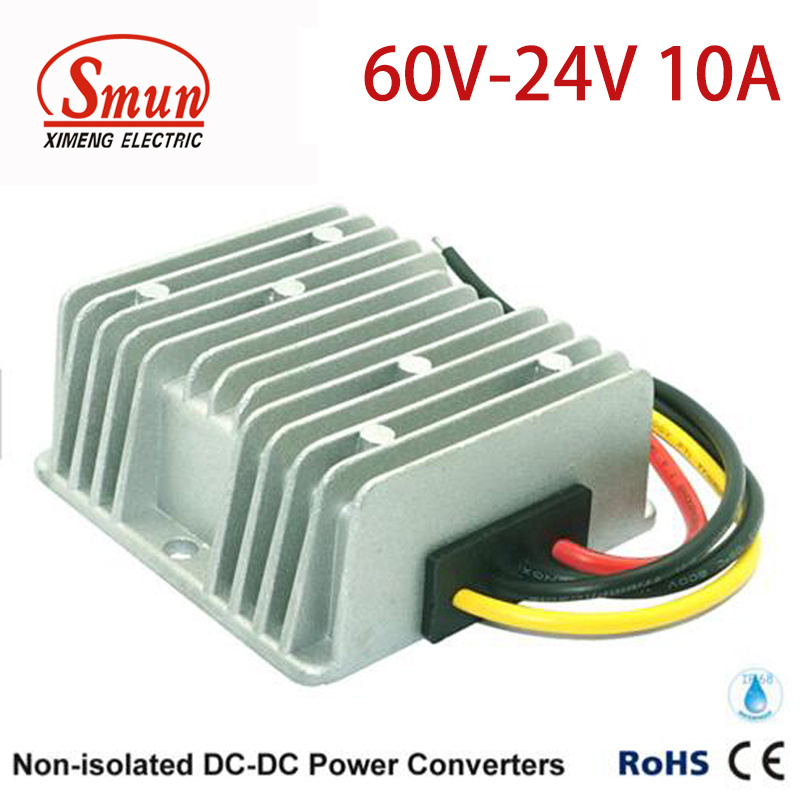

Non-Isolated 60VDC-24VDC 10A 240W DC to DC Converter Power Supply

Non-Isolated 60VDC-24VDC 10A 240W DC to DC Converter Power Supply
Price: US $ 13.1-17.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: SDJ-60S2410
Output Rated Power: 240W
Input Voltage Range: 40-75V DC
Output Voltage: 24V
Output Current: 10A
Efficiency: up to 92%
Waterproof: IP68
Working Temperature: -40°c to +80°c
Warranty: 1 Year
Weight: 290g
Have In Stock: Yes
Usage: Vehicle
Output Type: Single
Driving Method: LED Regulator Voltage
Power Supply Voltage: 60VDC
Brand: Smun

Product Description

DC60V to DC24V 10A Power Converters 240W
Features

1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 40-75Vdc
4. 100% waterproof & anti-shock protection, Ultra compact size, light weight
5. Industry grade DC60V to DC24V step-down converter, efficiency up to 92%
6. Certificates: CE
7. Waterproof level: IP68
8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,
9. Protections: Over-current, Over-voltage, Over-temperature, Over-load and
Short-circuit, Auto-recovery when device is back to normal operating
10. Non-Isolated Module
11. 1 year warranty, lifetime up to 100,000 hours.

Specifications
ModelSDJ-60S2410
Input rated voltage60V DC
Input voltage range40-75V DC
Efficiency94% (half load) ; 92% (full load)
Output voltage19V DC
Output current10 Amps
Output rated power190 Watts
Output peak power125%
Voltage regulation< 1%
Load regulation< 2%
Ripple (full load test)< 100mV
No-load current< 25mA
Working Temperature-40°c ~ +80°c
Waterproof ratingIP 68
ProtectionsOver-load, Over-current, Over-temperature, Short-circuit, Over-voltage
Machine size74*74*32mm
Package size98*82*34mm
N. Weight290g
W. Weight300g
Cooling wayFree air convection
CertificationsCE
OtherWhite box packing
