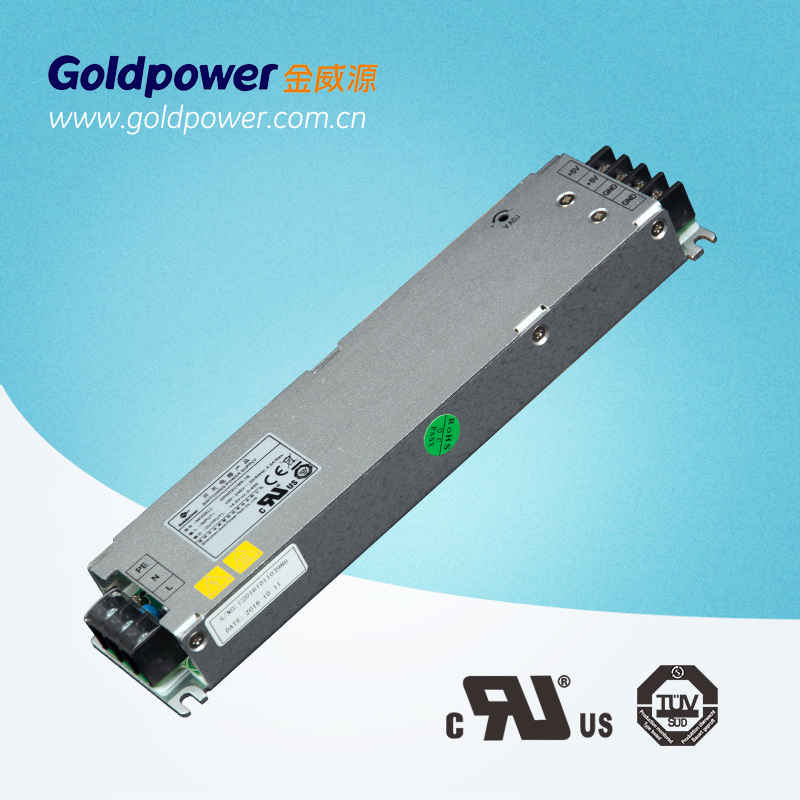

200W 4.6V LED Power Supply for LED Display Screen

Name: 200W 4.6V LED Power Supply for LED Display Screen
Brand: all-electronics-online.com
SKU: 726754452
Availability: InStock
Rating: 4.9 (64 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD201M4.6-1B
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Constant Current
Brand:	Goldpower

Product Description

Model No: GPAD201M4.6-1B             Brand: Goldpower
Warranty: 2 years Input Voltage: 90~264Vac
Output Power: 200W Typical Output Voltage: 4.6 V
Output type: single Certification: RoHs
HS Code: 8504401990 Dimension: 210*30*25mm
Weight: 0.5kg Origin: Shenzhen, China
Trademark: Goldpower

Features:
Wide input AC voltage range 90~264Vac
Wide output DC voltage range 4.2~5V to meet different screen requirements
Operating temperature range:-25°C~+55°C
High efficiency and reliability
Comparatively smaller LED power supply than standard dimension; easy for installation
Output short circuit protection; over current/voltage protection
Designed to meet safety standard requirements

Product Description:

Model No.	GPAD201M4.6-1B
Input voltage range	90~264Vac
Output voltage range	4.6V
Output current range	0~40A
PFC	With PFC function
Power	200W
Efficiency	88%
Current sharing degree	/
Output over voltage point	5V, auto-recovery
Output over current point	45A, auto-recovery
Cooling	Thermal conduction
Certificates	UL,CB,TUV
Working temperature	-25°C~+55°C
Store temperature	-25°C~+100°C
Working environment	Indoor and outdoor installations
Dimension	2103025mm
