200W AC/DC Switching Power Supply for Self-Service Equipment

Name: 200W AC/DC Switching Power Supply for Self-Service Equipment
Brand: all-electronics-online.com
SKU: 733241782
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD201M24-3E
Output Efficiency:	88%
Power Factor:	0.95(220V Full Load)
Output Voltage Range:	24V 12V 5V
Output Current Range:	5A 5A 4A
Stabilized Voltage Precision:	±6 %
Boot Output Delay:	5s
Weight:	1.4kg
Cooling Method:	Air Cooling
Output Type:	Triple
Warranty:	2 Years
Output Power:	201 - 300W
Input Voltage:	220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Goldpower

Product Description

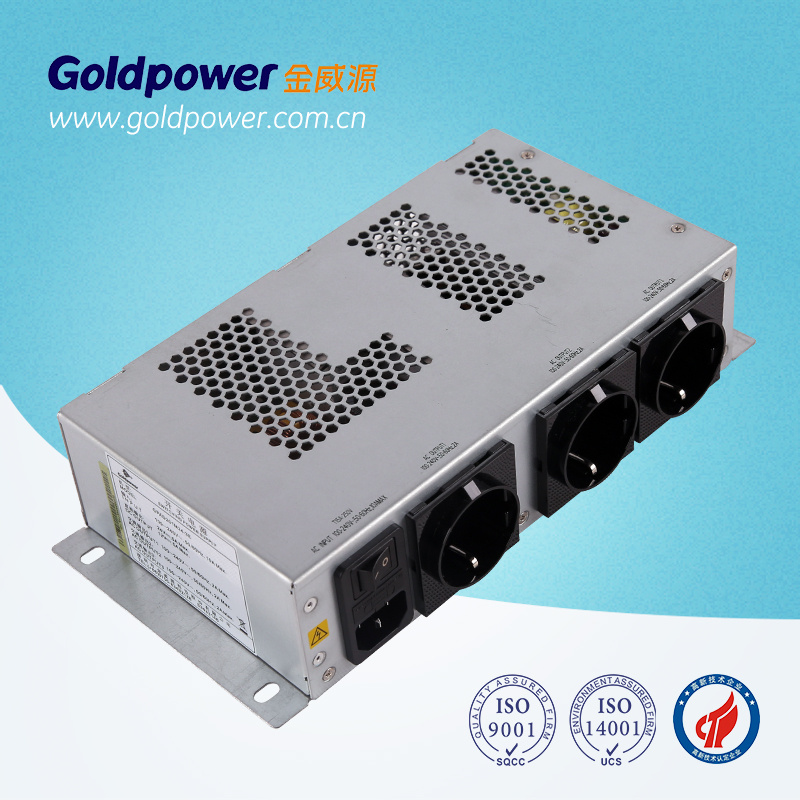

200W AC/DC switching power supply for Self-service equipment is a high efficiency switching Power Supply for vending machine with CCC,CE,UL,TUV.

Feature:

1. Multiple output, easy for the module expansion
2. High reliable,MTBF≥200,000 H
3. Power factor>0.90, fewer bypass loss, reduce the operating costs.
4. Applied to universal industries, especially suitable for the self-service of the medical treatment,education,bank,etc.

Specification:

Item	Parameter	Unit
Model	GPAD201M24-3E
Power	200	W
Input voltage	100~240	Vac
Output voltage/current	24V/5A	V/A
	12V/5A
	5V4A
Efficiency	88	%
Operating temperature	-20~60	ºC
Cooling method	Air forced cooling
Dimension	22513061 mm
Weight	1.4KG

About us:

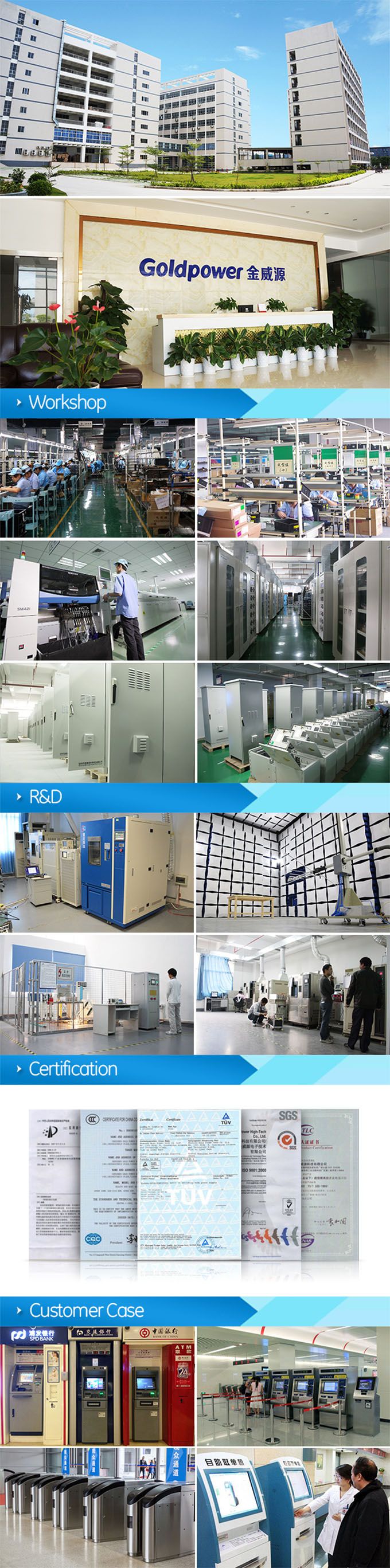

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
