| Prod Model: |
SMFY-200-5, SMFY-200-12, SMFY-200-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model 1: |
Smfy-200-5:5V40A |
| Model 2: |
Smfy-200-12:12V16.7A |
| Model 3: |
Smfy-200-24: 24V8.5A |
| Size: |
210*125*50mm |
| Power: |
200W |
| Weight: |
1kg |
| Input: |
170-260VAC 240-370-VDC |
| Certificate: |
CE RoHS |
| Warranty Time: |
12 Months |
| Usage: |
Digital Products |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
Electronic Step-down Transformer |
| Brand: |
Smun |
Product Description
Transformer 220v to 12v Features:
1) High efficiency, low operation temperature
2) Aluminum plastic shell
Transformer 220v to 12v is the product of YUEQING XIMENG ELECTRIC CO., LTD, we do have advantage in price, reliable quality, best after-sale sevrice.
Transformer 220v to 12v Principle: During the linear power, the power transistor working in the linear mode, different from the linear power, PWM power supply make the power transistor work at the conduction and off state, when being these two states, the voltammetric which add on the power transistor is very small( when it's on the conduction, the voltage is low, the current is big; When it's off-state, the voltage is high, the current is small)the voltammetric on the power parts is the loss which produced by power semiconductor parts.
Transformer 220v to 12v application: Widely used in the fields of industrial automatic control, military equipment, scientific research equipment, LED lighting, industrial control equipment, communication equipment, power equipment, instruments and apparatuses, medical equipment, semiconductor refrigeration and heating, air cleaner, electronic refrigerator, liquid crystal display, audio-visual products, security, computer chassis, electronic products and instruments.
Transformer 220v to 12v Characteristic:
AC input power source which is suitable for the whole world
The protection function of over current, over voltage, short circuit
Built-in EMI filter with tiny ripple
100% full load burn-in test
Accord with EN60950, GB4943, UL60950 satety standard
Accord with GB9254, EN550222EMC standard
One year quality warranty
All the above is the detailed information about XIMENG ELECTRIC product transformer 220v to 12v, if you have any query pls do feel free to contact us for more details.

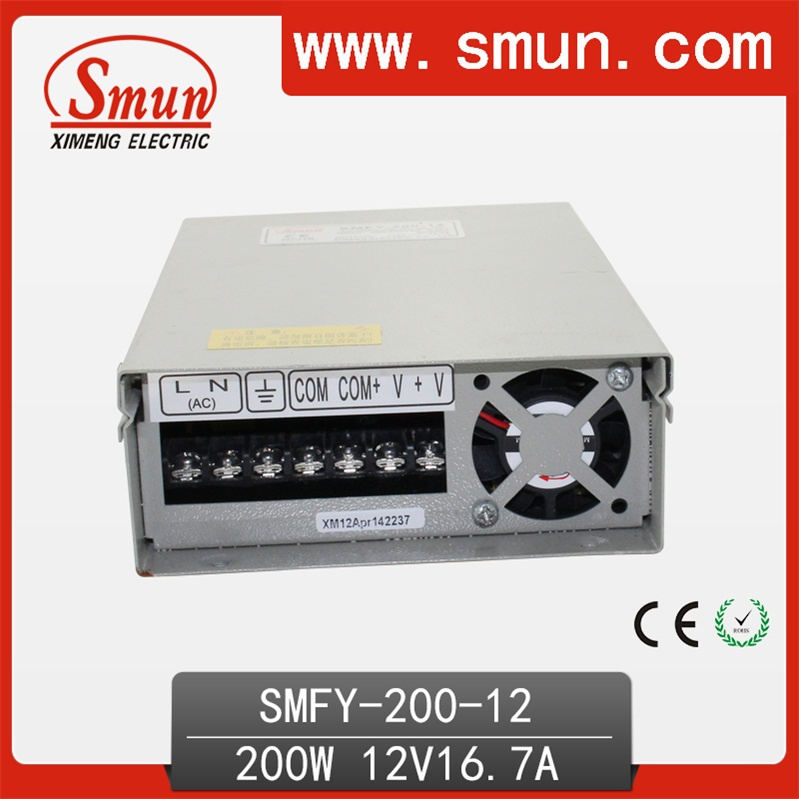

| SMFY-200W LED rain-proof power supply |
Model NO. |
OUTPUT |
Tolerance |
range |
efficiency |
| SMFY-200-5 | 5V , 0-40A | ± 1%
| 180mV
| 82% |
| SMFY-200-12 | 12V, 0-16.7A | ± 1%
| 180mV
| 84% |
SMFY-200-24
| 24V, , 0-8.5A | ± 1% | 240mV | 85% |
| AC input voltage range | 170-264VAC 47-63HZ |
| input current | 1.6A/230V |
| AC inrush current | 36A/230V |
| Leakage current | < 3.5mA/240VAC |
| Over load protection | 105-150%cutdown output, auto-recovery |
| set up, rise, hold up time: | 200mS 50ms 20ms |
| withstand voltage: | I/P-O/P: 1.5KVAC 1Minutes
I/P-FG: 1.5KVAC 1MInutes
O/P-FG: 0.5VAC 1minutes |
| working temperature | -25~+50° C |
| weight/packing: | 1kg |
| Material | Aluminum |
| Size | 210*125*50M M |
| certificate | CE ISO9000 ROHS |
| Warranty year | 1 year |
| Protections | Short circuit / Over load / Over voltage |
