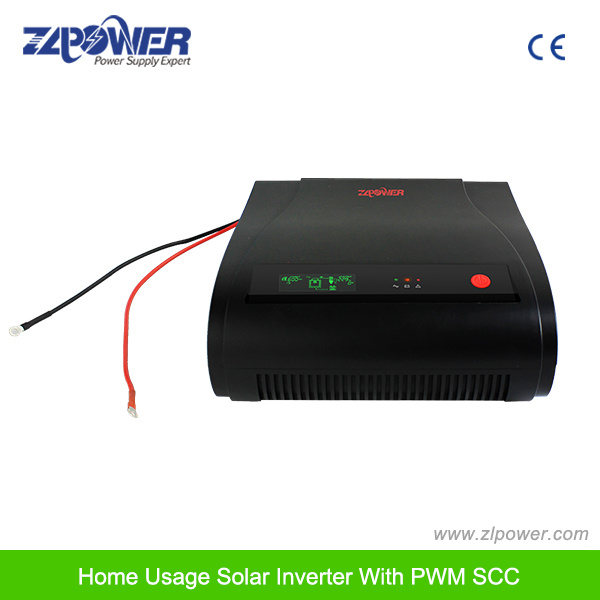

2016 Hybrid Solar Inverter Solar Power System Modified Sine Wave Inverter
| Price: |
US $ 62/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
HD plus 1kva 2kva |
| Model: |
2016 Hybrid Solar Inverter Solar Power System |
| Capacity: |
1000va 2000va |
| Wave Form: |
Modified Sine Wave Inverter |
| Built In PWM Solar Controller: |
Yes |
| Adjustable Charge Current: |
Yes |
| Solar And Battery Charger: |
Yes |
| AC Restart Function: |
Yes |
| Optional AC/Solar Priority Funtion: |
Yes |
| Multiple Protection: |
Over Load, Over Charge, Over Temp, Short Circuit |
| Warranty: |
2 Years |
Product Description
2016 Hybrid Solar Inverter Solar Power System Modified Sine Wave Inverter
HD Plus Inverter Series---HD plus 1000-2000vaa. HD plus series AC/Solar charging off grid hybrid Inverter
b. built-in enhanced AC charger, and solar charge controller up to 40A
c. selectable input voltage ranges 85-270vac/ AC charging current/ AC or Solar charger priority
d. off charge function
e. Auto restart upon AC recovery
d. LCD+LED displayf. Multiple protections: low battery alarm, low battery shutdown, over charge protection, overload protection, over temperature protection, short circuit protection.
Widely used in home appliances like computer,TV, lights and fans etc for long backup time with battery bank..
Specification
| Parameters Model | HD Plus1K-12 | HD Plus2K-24 |
AC
Input | Nominal Power | 1KVA/720W | 2KVA/1300W |
| Input Voltage Waveform | Nominal input Voltage |
| Nominal input Voltage | 230VAC |
| Selectable Voltage Range | 165-270Vac±4%(Narrow Range) 85-270Vac±4%(Wide Range) |
| Max AC input Voltage | Max:270VAC |
| Frequency | 50Hz:or 60Hz |
AC
output | Output Voltage Waveform | Modified sine wave |
| Voltage Regulation (Bat. Mode) | 230VAC (+10% / -18%) |
Nominal Output
Frequency (Hz) | 50Hz or 60Hz (Auto detection) |
| Transfer Time | 15ms Typical, 20ms Max. |
Solar
charger | Charger mode | PWM |
| Maximum PV Array Power | 450W | 900W |
| Optimal Work Voltage Rang | 15VDC-18VDC | 30VDC - 36VDC |
| MAX. PV input Voltage | 55VDC |
| MAX. PV input Current | 40Amp |
AC
Charger | Charging Algorithm | 3-step charging |
| Nominal Charger Current | 15 Amp or 20Amp Selectable | 10Amp |
| Floating Charging Voltage | 13.7VDC | 27.4VDC |
| Over charge Protection | 16VDC | 32VDC |
| Efficiency | Efficiency (Battery Mode) | >80% |
| Efficiency (Line Mode) | >95% |
Battery
Voltage | Nominal DC input Voltage | 12VDC | 24VDC |
| Low Battery Alarm | 10.5VDC±0.3VDC | 21VDC±0.6VDC |
| Low DC input shut-down | 10VDC±0.3VDC | 20VDC±0.6VDC |
High DC input
Alarm & Fault | 16VDC±0.3VDC | 32VDC±0.6VDC |
System
Parameter | Protections | Low battery, over charging, over load, over temp |
| Indicators | LCD+LED Display |
| Over-Load Protection | 1min Load >110%,20s Load >120%,0s Load >150% |
General
Specifications | Operating Temperature
Range | 0ºC to 40ºC |
| Storage Temperature | -15ºC~55ºC |
| cooling | Forced air, variable speed fan |
| Dimension(L*W*H) | 276.7*245*97mm |
| Net Weight(kg) | 2.6 | 2.7 |

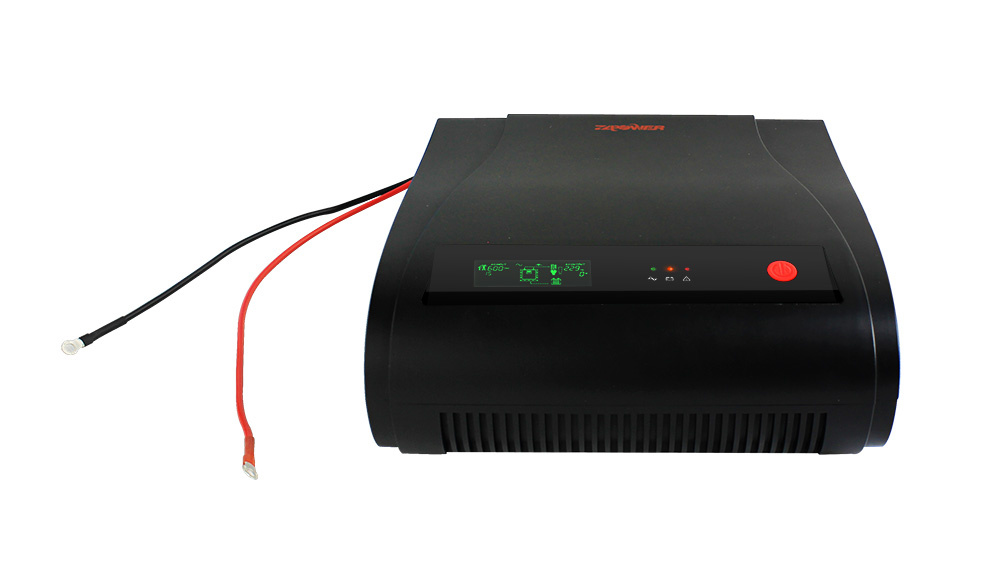

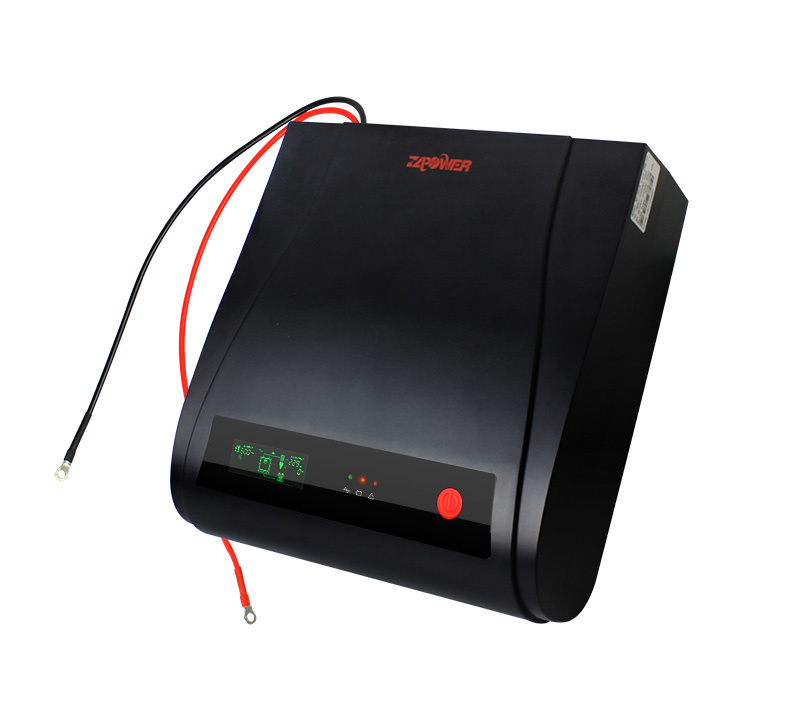

Photos
Our CompanyWe Shenzhen ZLPOWER Electronics Co., Ltd is a professional manufacturer and exporter in the field of UPS power supply and solar power system for more than 10 years. Main products: UPS system, Inverters, lead acid battery, MPPT solar charge controller etc..We have a stronger technical team for excellent pre-sale and after-sale service.. Packing
Standard exporting Carton package, optional in Wooden in needDeliveryBy Express/Air/Sea, it depends by customers
By express: around 4-6 days of shipping
By Air: 5-8 days of shipping
By Sea: according to the country
Why do you use HD-Plus Inverter?
Our HD-plus 2016 Hybrid Solar Inverter Solar Power System Modified Sine Wave Inverter is a type of high frequency modified sine wave inverter in cheaper price..It can be used to support home appliances like computer, TV, lights, fans etc for long backup time with external battery bank..It can work with utility power and Solar PV system(solar panel)..
In a word, it's a intelligent and cheaper power equipment for home applications...
