| Prod Model: |
cat5e |
| Color: |
Any |
| Temperature: |
60/75/90 Degree |
| No. Of Pairs: |
4 |
| Construction: |
UTP |
| Conductor Dimension: |
0.5 |
| Core Dimension: |
0.91 |
| Nom. Od: |
5.3 |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Certification: |
VDE |
| Cover Material: |
PVC/PE |
| Type: |
Cat5e |
| Model: |
Cat5e |
| Brand: |
Jiukai |
Product Description

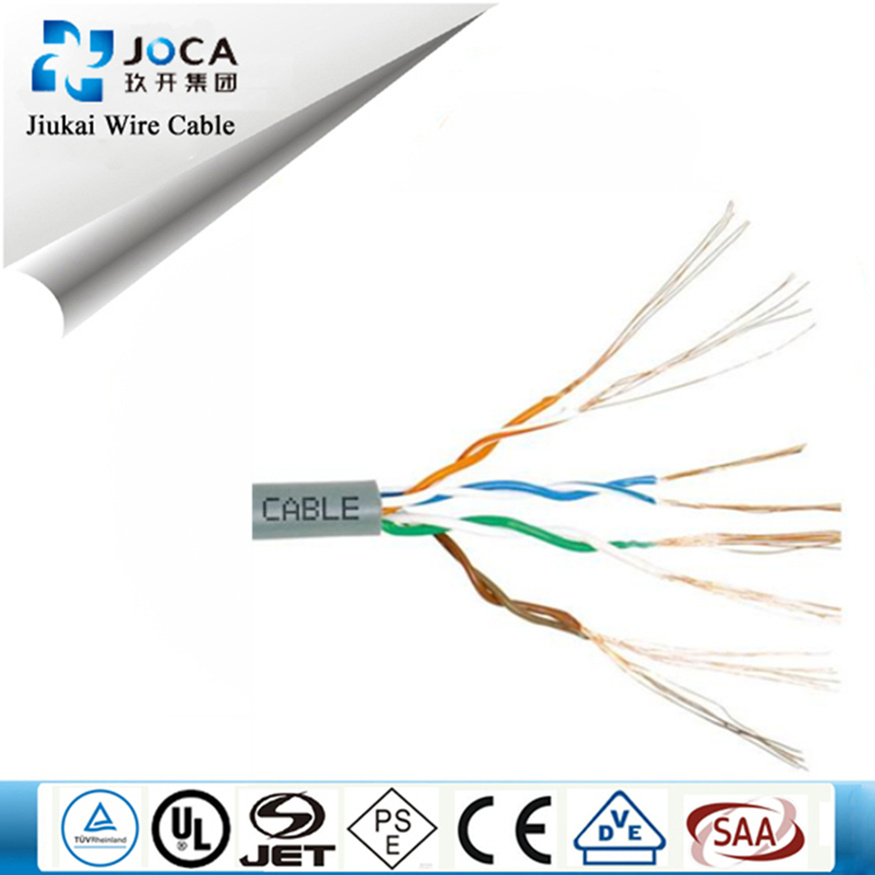

lan cable cat5e/network cable 4P UTP Cat5e outdoor/indoor
Product Description
Local Communication Cable, LAN Cable, Network Cable
1.The most competitive price
2.Material:CU,CCA
3.CE TUV CCC UL CSA VED IEC authentication
4.OEM is available
5.Cat5e utp Cable
| nner conductor | Material | Bare Copper Pass Fluke Test |
| Diameter | 0.51+/-0.01mm(24AWG) |
| Insulation(Dielectric) | Material | Color-coded PE(Polyethylene) |
| Diameter | 0.91 +/- 0.01mm |
| Outer Jacket | Material | PVC (rip cord, optional) |
| Nominal O.D, | 5.20mm ± 0.10mm |
| Frequency | Impedance | RL | Attenuation | Next | Elfext | PS Next | PS Elfext |
| MHz | ohm | dB/100 | dB/100 | dB/100 | dB/100 | dB/100 | dB/100 |
| 1.0 | 100±15 | 17 | 2 | 62.3 | 61 | 62.3 | 61 |
| 4.0 | 20 | 4.1 | 53.3 | 49 | 53.3 | 49 |
| 10.0 | 22 | 6.5 | 47.3 | 41 | 47.3 | 41 |
| 16.0 | 20 | 8.2 | 44.2 | 37 | 44.2 | 37 |
| 20.0 | 20 | 9.3 | 42.8 | 35 | 42.8 | 35 |
| 31.25 | 18 | 11.7 | 39.9 | 31 | 39.9 | 31 |
| 62.5 | 16 | 17 | 35.4 | 25 | 35.4 | 25 |
| 100 | 15 | 22 | 32.3 | 21 | 32.3 | 21 |
Packaging & Shipping
HS CODE |
8544492100 |
Packaging Details |
1:Standard export carton |
| |
2.According to customer requirement. |
Delivery Detai |
1:5-10days if the goods are in stock |
| |
2:This is a matter of negotiation. |
Certification
| ISO9001:2008 | No:082737 |
| TUV | No:R50203088 |
| UL | No:E480012 |
Company Information
Shanghai Jiukai Wire & Cable Co., Ltd
Our company is a national high and new tech enterprise.We consistently dedicate to the R&D, production and sales of wires and cables.We are professional HV&LV power cables, LV electrical wires and security cables in China.We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test.We have the technical team of local & overseas experts in cable industry.Strict quality control and safety policy ensures our products meet and exceed the GB industry standards.Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa.We establish the strategic partnership with many global electronic enterprises.We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable.All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000.
Why Choose Us
We are a professional wire and cable manufacturer
1.Jiukai sends all the items with Outgoing Quality Inspection Report;
2.The copy of TUV certification will be sent along with the products;
3.We guarantee100% good quality when the products are sent out of factory;
4.We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days;
5.Jiukai is ship to world wide;
6.Once we shipped the products,our after-sale service will send you the tracking number;
7.If your item is not as described or faulty when you receive it, we will send replace it for you with no additional charge;
8.If the item is found non-defective,the item will be sent back to the buyer at buyer's expense.
FAQ
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long solar cable can be loaded in one 20" container?
A:Can load:1×4mm² solar cable 250km;1×6mm² solar cable 200km;1×10mm² solar cable 120km;1×16mm² solar cable 80km;2×4mm² solar cable 128km;2×6mm² solar cable 80km.
Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples ?Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,balance before shipment.
