| Prod Model: |
F24-60 wireless controller for crane |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Wireless Remote Controller for Overhead Crane and |
| Color: |
Yellow |
| Protection Class: |
IP 65 Industrial Standard |
| Operating Temp: |
35 Degree~ +80 Degree |
| Application: |
Cranes, Hoists, Heavy Trucks, Excavator, Trailer |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Voltage: |
AC 380V/ 36V/220V/110V or DC12V/24V |
Product Description

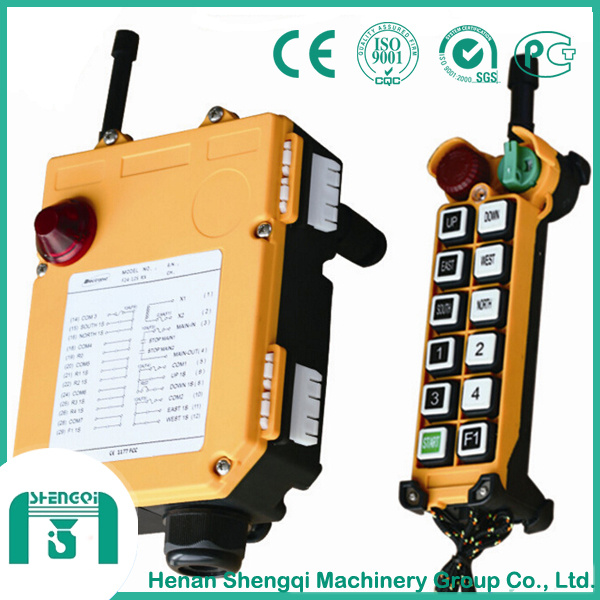

2016 shengqi Wireless Remote controller for Overhead Crane And Gantry Crane:
Durable nylon-fiber housing for extra shock resistance
Low power consumption with 2 AA batteries (last up to 2 months in normal operation)
Operating range up to 100 meters
Programmable function setting through Windows-based software
Economic efficiency, ease of operation
Pre-wiring standard cable making wiring procedures easier
100% compatible components reducing stock of spare part
Safety features: 4.3 billion unique ID code
Hamming code Enhanced watch-dog circuit
Model | Motion | EMS | Start | Switch |
| F24-6S | 6 X Single Speed | O | O | O |
| F24-6D | 6 X Double Speed | O | O | O |
| F24-8S | 8 X Single Speed | O | O | O |
| F24-8D | 8 X Double Speed | O | O | O |
| F24-10S | 10 X Single Speed | O | O | O |
| F24-10D | 10 X Double Speed | O | O | O |
| F24-12S | 12 X Single Speed | O | O | O |
| F24-12D | 12 X Double Speed | O | O | O |
Operating Temp | 35 degree~ +80 degree |
| Operating Range | 100M |
| Transmitter power supply | 4 AA size Alkaline/Rechargeable Beattery |
| Receiver power supply | AC 48/110/220/380V |
| Protection class | IP 65 Industrial standard |
| ID Code | 4.3 billion (32bit) |
| Hamming distance | ≥4 |
| TX Dimension & Weight | 220×110×90mm Apprx.860g(w/o batteries) |
| RX Dimension & Weight | 290×230×70mm Apprx.2200g(w/o cable) |
For more information and details about our products, including design of the crane, safety features of each kind of crane, application of the machine, technical parameters of the crane, production process, after-sale service, main part of the crane,package for the crane, loading pictures of cranes and all other information about our products, please kindly contact with MR.Wayne , MR.Wayne will give you a support as much as possible.
