Wireless Remote Controller for Overhead Crane

Name: Wireless Remote Controller for Overhead Crane
Brand: all-electronics-online.com
SKU: 709574222
Availability: InStock
Rating: 4.7 (80 reviews)

Price:	US $ 160/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	F24 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Number:	F24 Series
Product Name:	Wireless Controller
Control Point:	10
Working Ambient:	-35-80
Control Distance:	up to 100m
Transmitter Power:	DC 3V
Receiver Power Supply:	as Your Requirement
Output Contact Capacity:	5 AMP Sealed Relay Output
Transimitter:	Available
Receiver:	Available
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Joystick
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Voltage:	12V
Material:	Plastic
Battery Type:	AA Battery

Product Description

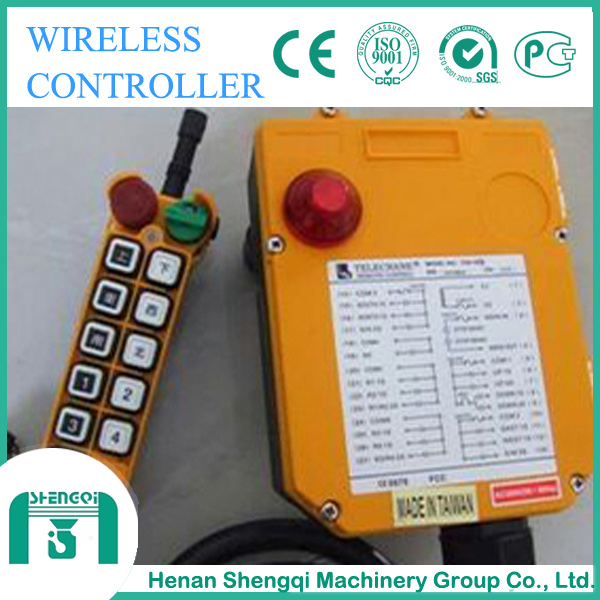

Wireless Remote Controller for Overhead Crane

Durable nylon-fiber housing for extra shock resistance
Low power consumption with 2 AA batteries (last up to 2 months in normal operation)
Operating range up to 100 meters
Programmable function setting through Windows-based software
Economic efficiency, ease of operation
Pre-wiring standard cable making wiring procedures easier
100% compatible components reducing stock of spare part
Safety features: 4.3 billion unique ID code
Hamming code Enhanced watch-dog circuit

Model	Motion	EMS	Start	Switch
F24-6S	6 X Single Speed	O	O	O
F24-6D	6 X Double Speed	O	O	O
F24-8S	8 X Single Speed	O	O	O
F24-8D	8 X Double Speed	O	O	O
F24-10S	10 X Single Speed	O	O	O
F24-10D	10 X Double Speed	O	O	O
F24-12S	12 X Single Speed	O	O	O
F24-12D	12 X Double Speed	O	O	O

Operating Temp	35 degree~ +80 degree
Operating Range	100M
Transmitter power supply	4 AA size Alkaline/Rechargeable Beattery
Receiver power supply	AC 48/110/220/380V
Protection class	IP 65 Industrial standard
ID Code	4.3 billion (32bit)
Hamming distance	≥4
TX Dimension & Weight	220×110×90mm Apprx.860g(w/o batteries)
RX Dimension & Weight	290×230×70mm Apprx.2200g(w/o cable)

Henan Shengqi Machinery Group Co., Ltd is established in 1988. Now it has been in existence for there decades. This time has seen it achieve rapid growth, to become one of the leading manufacturers of Overhead Traveling Crane, Gantry Crane, and Jib Crane, Electric Hoists in China. It now has total asset 54 million US$, with total area 389000m2.

SHENGQI has also been certified as an ISO 9001-2000 company, and follows the highest quality standards. Every crane manufactured by SHENGQI is designed to meet individual customer requirements and work in a large variety of Industries across China and abroad. Cranes manufactured at our factory vary in terms of capacity and design. From five tonnage cranes meant for general duty, to 300 ton cranes which are specially designed as per client specifications. Currently we have the capability to manufacture cranes up to 500 tons.

Our Crane are widely use in the field of Industry, Foundry, Nuclear power, aircraft, automotive, shipbuilding, railway, construction, mining, power insdustry, paper industry, Petro etc, , ,

Ous Sales Amounts reaches 0.7 billion RMB in the year of 2015, and our cranes are widely sold to abt 30 countries, such as Americian, Japan, Korea, Vietnam, India, Indonesia, Britshi, Finland, Argentina, Canada, Pakistan, Thailand etc...

Shengqi is committed to providing you with lifting equipment and services that increase the value and effectiveness of your business.

-Producing durable products that last a long time and perform on the job, exactly as promised.

-Responding to inquiries and requests faster-and with a greater sense of urgencyl

-Embracing your challenges and building solutions to resolve even the most complex problems.

-Meeting delivery dates, providing support after the sale, and doing exactly what we promised.

-Being loyal and committed to your success.
