2017 Ceramic Screw Type Fuse (DII DIII RO21 RO21)

Name: 2017 Ceramic Screw Type Fuse (DII DIII RO21 RO21)
Brand: all-electronics-online.com
SKU: 764978685
Availability: InStock
Rating: 5 (76 reviews)

Price:	US $ 0.169-0.89/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RO21 RS21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current(a):	2-25A
Model:	Gg, Ar
Material:	Ceramic
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Low Voltage

Product Description

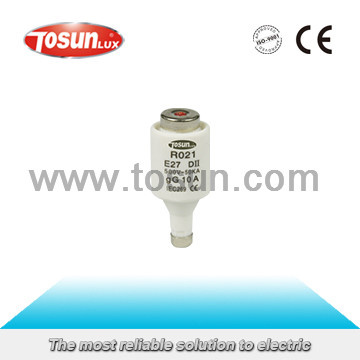

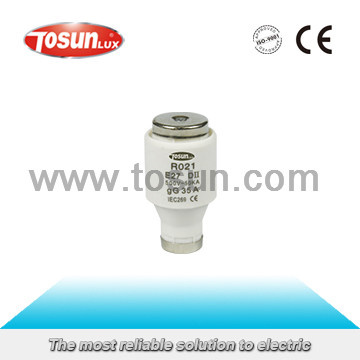

2017 Ceramic Screw Type Fuse (DII DIII RO21 RO21)

Application

1.This series fuse is suitable for AC 50Hz,rated voltage to 1140V,rated current to 1250A.

2. lt is mainly used in the electric installation for protecting ircuit from overload and short circuit(gG/GL);

3. it also may derive for protecting the semiconductor device and others complete set installment from hort-circuit(aR)as well as the electric motor from short-circuit(aM).

4. The rated breaking capability for this series fuse is to 120KA.This series fuse conforms to national standard GB13539 and International electrical committee standard IEC60269.

Pictures

Specification

Model		Size	Rated Current(A)	Dimension(mm)
GG	AR	Size	Rated Current(A)	ФA	ФC	ФD	ФL
RO 21	RS 21	DII	2,4,6	6	22	13	50
			8, 10	8	22	13	50
			13	8	22	15	50
			16	10	22	15	50
			20	12	22	15	50
			25	14	22	15	50
RO 22	RS 22	DIII	30, 35, 40	16	27	20	50
			50	18	27	20	50
			63	20	27	20	50
RO 23	RS 23	DIV	2, 4, 6	6	27	20	70
			8, 10	8	27	20	70
			16	10	27	20	70
			20	12	27	20	70
			25	14	27	20	70
			35	16	27	20	70
			50	18	27	20	70
			63	20	27	20	70
RO 24	RS 24	DI	2, 4, 6	6	12.5	11.3	50
			10	8	12.5	11.3	50
			16	10	12.5	11.3	50
			20, 25	12	12.5	11.3	50

Why us?
1. We have extensive experience in low tension electric items and illumination products. We have been dealing the line for more than 21 years.

2. The prices of our products are very reasonable because our network of raw material supply, spare parts and goods. And our factory is efficient, covering an area of 13,000 m².

4. Our group of professional inspectors supervising the quality for your every order. Our products have obtained TUV, SEMKO, CE, CB, and ROHS certificates.

5. We have particular designers in charge of packing.

6. We have experienced salesmen to handle business for you specially.

About us

1. More than 23 years' experience. We have extensive experience in low tension electric items illuminaiton products.

2. Reasonable price. Good network of raw material supply, spare parts and goods and efficient factory covering an area of 13,000 m².

3. Reliable quality. We have professional inspectors supervising the quality during the production. Our products have obtained TUV, SEMKO, CE, CB and RoHS certificates.

4. Favorable service. We have experienced salesmen to handle business for you specially.

5. Attractive packing. We have particular designers in charge of packing material in a unique style.

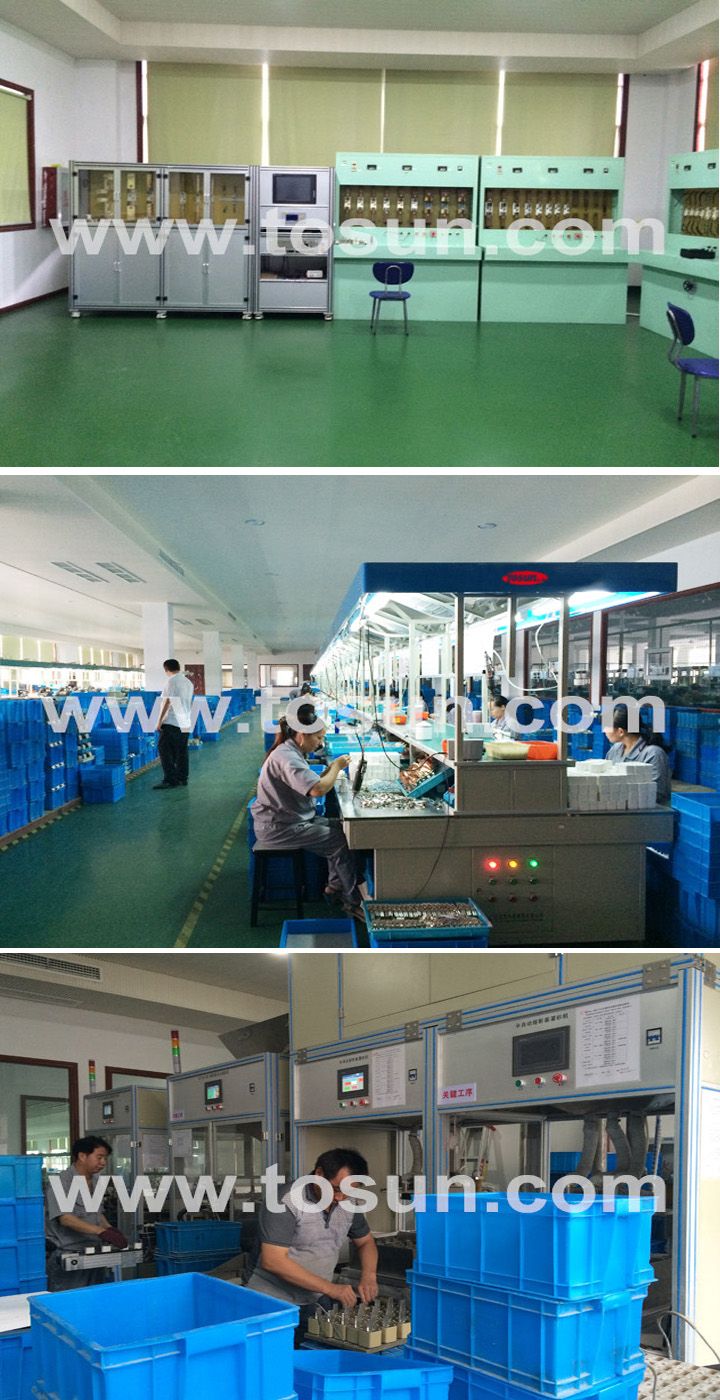

Our Producing Line

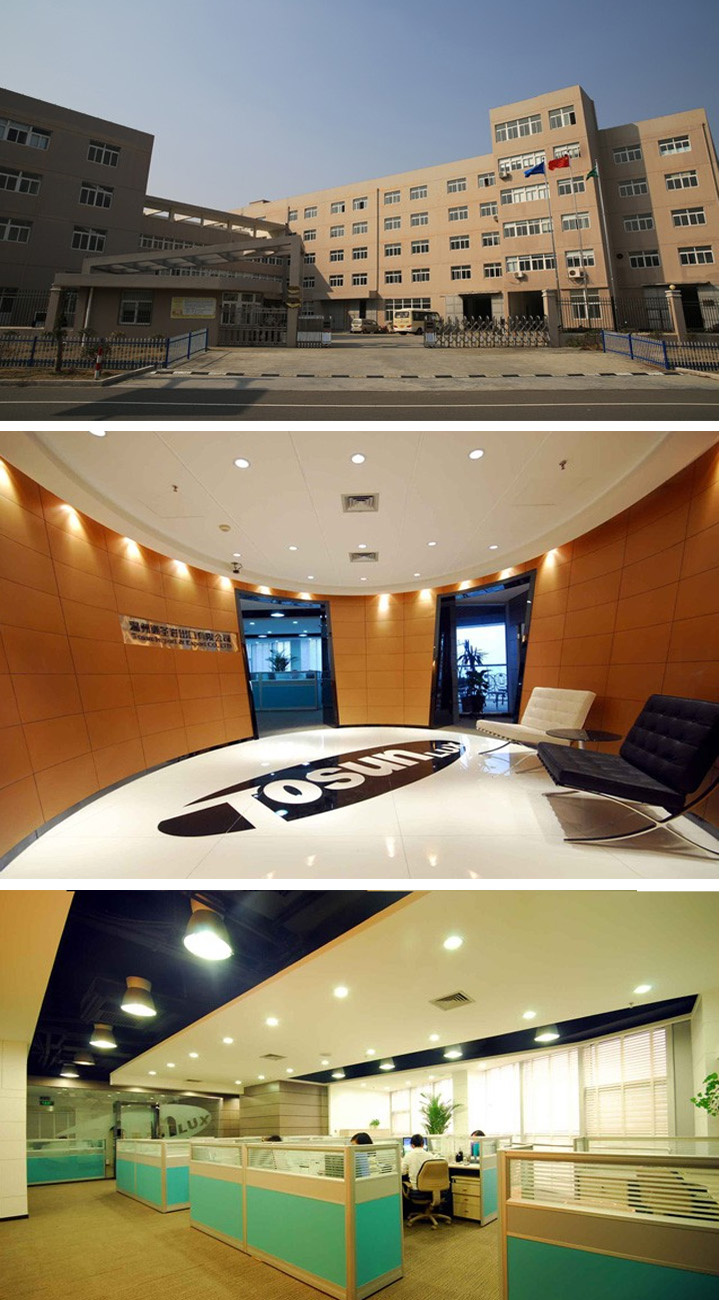

Our office

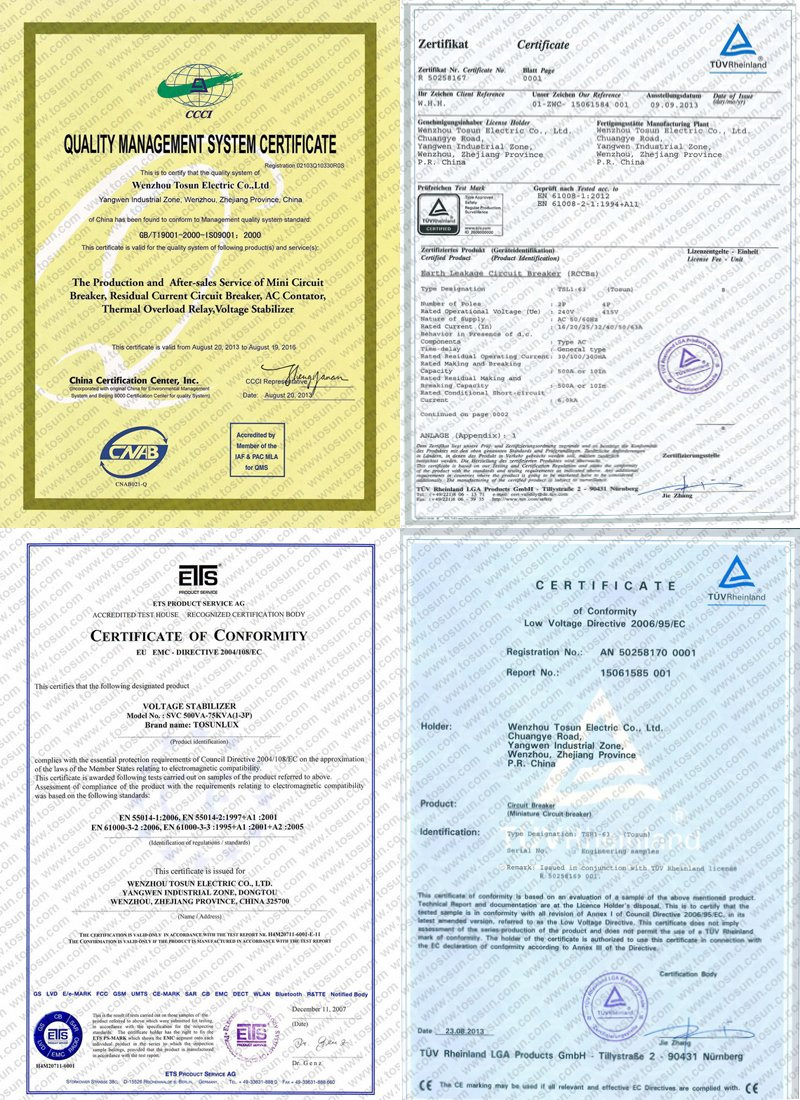

Certificates

For Further Information

www.tosun.com / www.tosunlux.com

Contact person: Jason Lee

Contact us
Jason Lee

Mob:+86-13968821086

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
