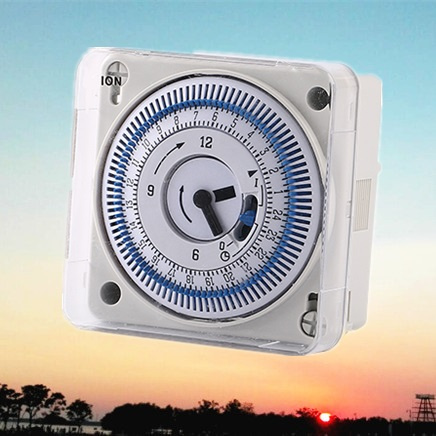

2017 New Developed Analogue Time Switch with Pointer (AHC712)

Name: 2017 New Developed Analogue Time Switch with Pointer (AHC712)
Brand: all-electronics-online.com
SKU: 720823762
Availability: InStock
Rating: 4.5 (108 reviews)

Price:	US $ 6.5-13.9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	AHC712
Theory:	Mechanical
Pointer:	with
Standard:	En60730-1:2011,En60730-2-7:2010
OEM:	Available

Product Description

Analogue time switch
1 channel
Switching status display
Daily program
96 switching segments
Reliable due to synchronous motor drive
Shortest switching time: 15 minutes
Clock hands for time display
Simple summer/winter time correction
Switch construction: SPDT

Model	AHC712	Shortest switching time	15 min
Operating voltage	230 V AC	Programmable every	15 time
Frequency	50-60 Hz	Time accuracy	Synchronised with mainsSynchronised with mains
Width	4 modules	Power consumption	1.5VA
Installation type	Front panel installation	Type of protection	IP 20
Power reserve	-	Protection class	II in accordance with EN 60 730-1
Max. switching capacity at 250 V AC, cos φ = 1	16 A	Ambient temperature	-10 °C … +50 °C
Max. switching capacity at 250 V AC, cos φ = 0.6	4 A	-
