| Input Voltage Range: |
115~300VAC |
| Efficiency: |
>90% |
| Thdi: |
<5% |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Supstech |
Product Description

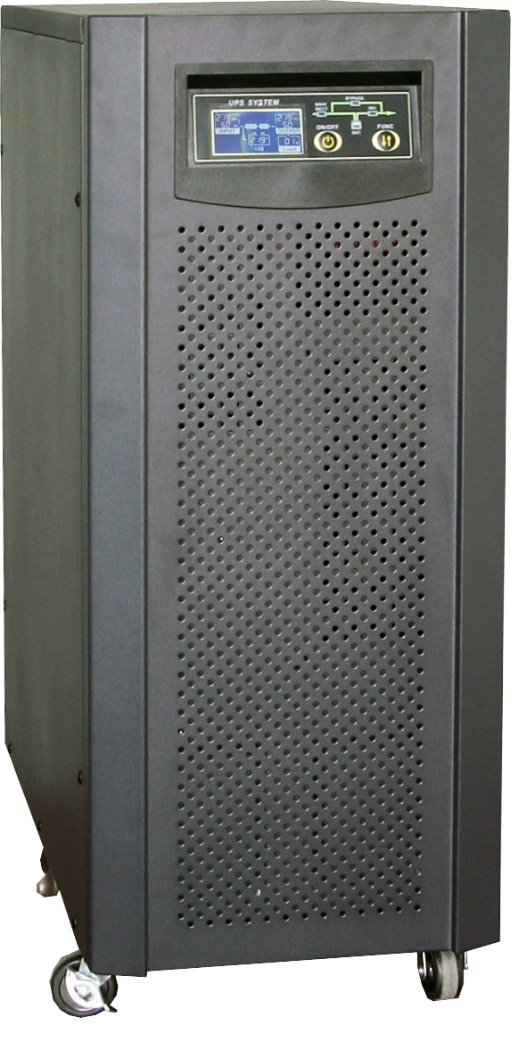

SUN-S Series HF Online UPS(1-20KVA)
SUN-S Series is a double conversion 1/1, 3/1 Phase pure online UPS with DSP control. It has been designed for mainstream double conversion system with N+1 or N+X parallel redundancy feature, and manufactured with advanced SMT international standard, which provide outstanding stability and reliability.High Performance Index
Latest HF switching power supply rectifier and PFC Technology. Input Power Factor 0.99, THDI≤3.5%
Wide Input Range from 160~300Vac on full load (100% Load, If Load is below 50%, it can be reached even equal or lower than 115Vac). On 3 Phase Model Input range is from 304 ~ 478 Vac.
Latest IGBT technology to achieve high overall efficiency up to 90%. Compatible with 220/230/240V and 50/60 Hz Grid Supply Systems.
Powerful overload ability with output short circuit protection technology: 1-3 KVA: 120% overloads for 1 minute. 150% for 60ms transfer to bypass and alarm. 6-10KVA: 105-130% overload for 10 minutes, >130% overload for 60ms.
Systems have parallel redundancy feature to increase the system reliability level.
Can be connected with all kinds of generators to save customers costs.
Intelligent temperature compensator and low wave charger can extend battery lifetime.
Intuitive dual LCD and LED display panels, which comprehensively and intuitively reflect the state of
power system statuses, parameters, and other information. Users can modify and operate based on
individual needs on these friendly displays.
19" inch Rack Mount structure design. It can be compatible with standard communication cabinet to
greatly save data room spaces.
Safe and Reliable
Sun-S Series adapts DSP technology to control UPS all kinds of power function processes (including Parallel function) in order to increase system reliability.
Sun-S Series adapts sensitive peak current protection circuit design to protect the system from damages due to short-circuit, cold load impacts.
90% of system components are from international famous brands. All devices has been aged and fully tested for at least 24 hours before leaving the factory.
Sun-S Series can use SNMP Network Adapter, RS485/Dry Contact, USB port, and EPO function to build up a remote control and monitoring system.
Compatible applications/loads
Sun-33T series are designed for large essential equipment application environment, such as data processing center, middle-large size information computing center, process control system of manufacturing industry, telecommunication equipment.
| Capacity | 1KVA/0.8KW | 2KVA/1.6KW | 3KVA/2.4KW | 6KVA/4.8KW | 10KVA/8KW | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW |
| UPS Structure | Double Conversion High Frequency Online |
| Appearance | Tower or Rack-Mount Type |
| Overall Efficiency (AC-AC ) | > 99% |
| Noise(In 2 meters) | <50dB |
| Working Temp | 0-40ºC |
| Storage Temp | -15~ 60ºC(Without BATs) |
| Humidity | < 95% Non-Condensing |
| Safety Standard | GB/T14715 |
| EMC Standard | EN50091-1/2 |
| Protections | Overload, Short-Circuit, Over Temp., Utility Power Voltage High/low, BAT Voltage High/low |
| Parallel Redundancy | None | Available |
| DC Start | Available |
| Generator Compatibility | Available |
| Manual Maintenance Bypass | None |
| Display | LCD/LED: UPS Status, INV Status, Bypass Status, BAT Status, BAT %, Load %, Fault Messages |
| Alarm | Auto |
| Mute | Auto |
| Rectifier Specification |
| Input Voltage Range | 100% Load:160~300Vac,50%Load:115~300Vac | 175 ~ 280Vac | 304 ~ 478Vac |
| Input Frequency Range | 45-65 Hz(Auto-Tracking) |
| Input PF | 0.99 |
| THDI | < 5% |
| Output Specification |
| Output Voltage | 220Vac |
| Output PF | 0.8,0.9 optional |
| Output Voltage Regulation | 220Vac±1%(Static Load);220Vac±2%(50-0% Sudden Change) ;220Vac±3%(100-0% Sudden Change) |
| Output Freq.(Online Mode) | When 46Hz ≤Input Freq.≤ 54Hz,Input Freq.=Output Freq.;When Input Freq.<46Hz or >54Hz, Locked at 50Hz |
| Output Freq. (BAT Mode) | 50Hz± 0.2% |
| Output Waveform | Pure Sine Wave |
| Distortion | <1%(Linear Full Load),<3%(None-Linear Full Load) |
| Overload | > 125%: More than 1 min | > 120%: More than 1 min |
| > 150%: 300 ms transfer to bypass | > 150%: 300ms transfer to bypass |
| Crest Ratio | 3:01 |
| Efficiency | >90% |
| Short-Circuit | Circuit Auto Protection,Output Voltage/Current 0 |
| Output Abnormal | INV Output Auto-Locked Protection |
| Noise Suppression | EMI/RFI Wave filter |
| BAT Low | Shutdown Protection |
| Dynamic Response | 3% at full load,recovering in 20ms |
| Auto-Restart | Available |
| Software Control | Available |
| Bypass Specification |
| Static Bypass Transfer Time | 0ms |
| Static Bypass Range | 80Vac± 5% ~285Vac±5% |
| Bypass -> INV Transfer Time | 2ms |
| Battery Specification |
| Type | Sealed Lead Acid Maintenance Free |
| Backup time | 5-10min | 5-10min | 5-10min | 5-15min | 5-15min | 5-15min | ------------ | -------------- |
| Ext. Model Rate Volts/Units | 36Vdc | 72Vdc | 96Vdc | 192Vdc | 192Vdc | 192Vdc | 192Vdc | 192Vdc |
| Std. Model Charging Current | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Ext. Model Charging Current | 6A | 7A | 7A | 7A | 7A | 7A | 7A | 7A |
| Communication Specification |
| Communication Port | Rs232 (Std.);/SNMP/RS485/ Dry Contact (Optional Accessory) |
| Remote Software | Multi-functional Monitoring System, Online and BAT Mode Status, BAT Fault, Remote Control |
| Physical Parameters |
| Size mm(D×W×H) | 355x145x220 | 433x190x318 | 433x190x318 | 6/10K Std.:500×240×620 | 500x240x620 |
| 6/10K Ext.:500×240×460 |
| Net weight Kg | 9.8/6.5 | 18.5/10.5 | 21/11.5 | 57/20 | 67.5/22 | 27 | 35 | 35 |
| Size mm(RM D×W×H) | 430×450×88 | 430×450×177 | -------- | ---------- | ---------- |
| Net weight Kg | 7 | 10 | 14 | 18 | 20 | -------- | ---------- | ---------- |
