201W of Switching Power Supply with CE (S-201)

Name: 201W of Switching Power Supply with CE (S-201)
Brand: all-electronics-online.com
SKU: 743342525
Availability: InStock
Rating: 4.8 (64 reviews)

Price:	US $ 0.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-201
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	201W
Size:	199X110X50
Frequency:	50/60Hz
Weight:	0.8kgs
Output Type:	Single
Warranty:	1 Year
Output Power:	101 - 200W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	12V/24V
Brand:	Powlik

Product Description

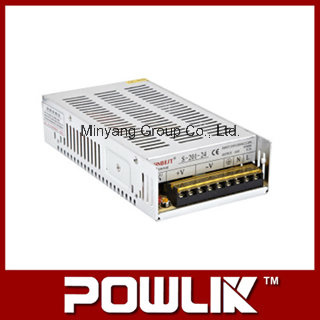

Switching Power Supply For 201W(S-201)

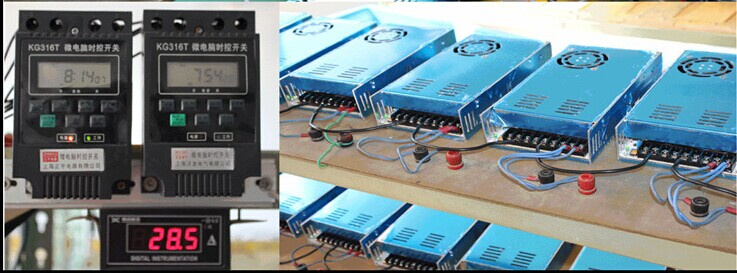

100% full load burn-in test
Universal AC input: 110/220VAC± 20% selectable by switch
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Size:199*110*50(mm)

Specification	S-201-12	S-201-24
DC output	12V 16.5A	24V 8.3A
Wave and noise	150mVp-p	150mVp-p
Inlet stability	±1%	±1%
Load stability	±1%	±1%
Efficiency	76%	82%
Adjustable range for DC voltage	±10%	±10%
AC input voltage range	200-260VAC/290-370VDC 47-63Hz

OverLoad protection	110%-135% hiccup mode,auto-recovery
Over-Voltage protection	110%-135% rated output voltage
Setup,rise,hold up time	800ms,50ms,16ms at full load and 230VAC
Withstand voltage	I/P-O/P: I/P-FG 1500VAC
Isolation resistanc	I/P-O/P IP/FG >100M Ohms / 500VDC
Working temperature	-10ºC_+65ºC
Safety Standards	Design refer to UL1950,CSA22.2,IEC60950
EMC Standards	Design refer to FCC PART 15 CLASS A
Weight	0.8KG

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

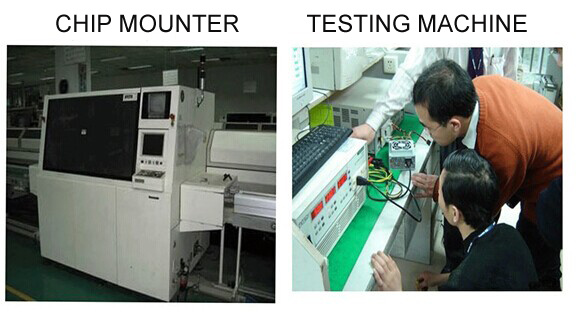

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
