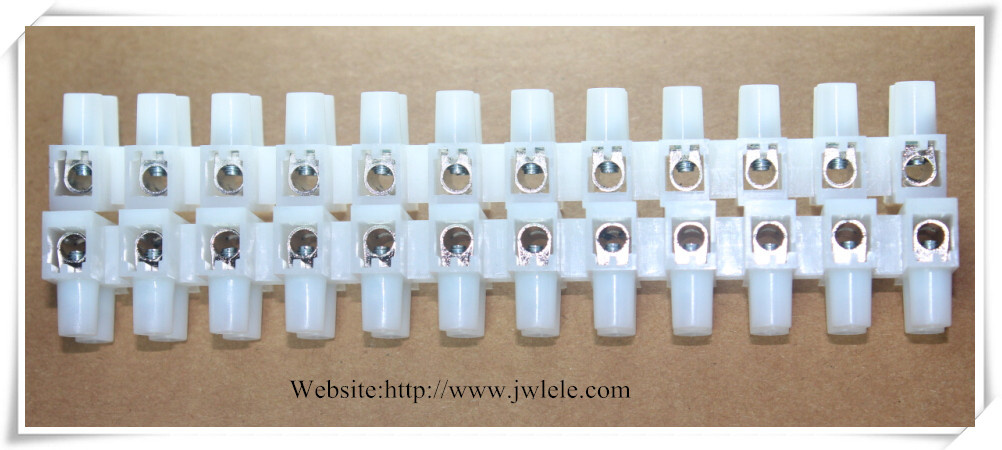

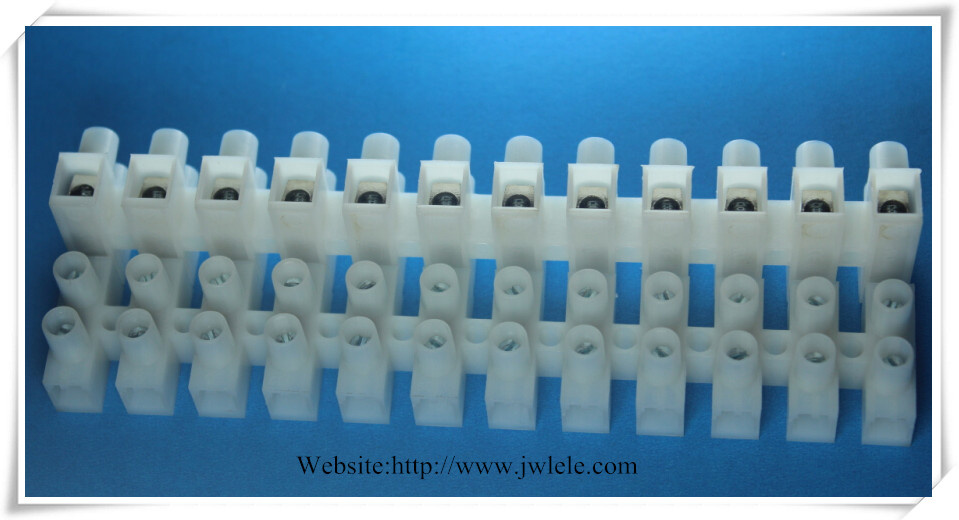

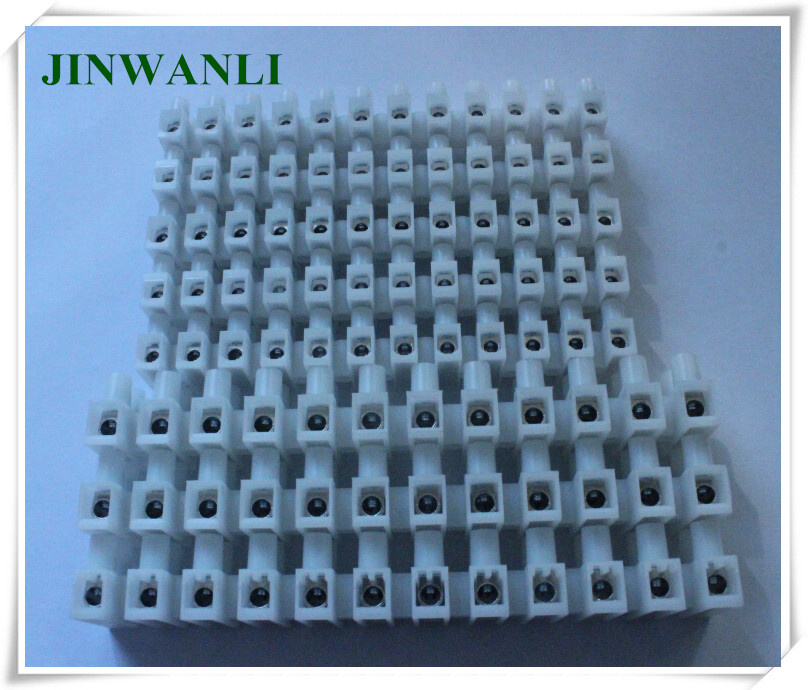

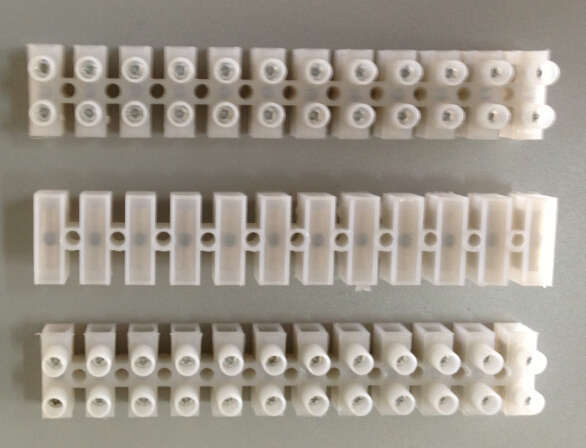

20A 14mm2 H Type Plastic Terminal Block

Name: 20A 14mm2 H Type Plastic Terminal Block
Brand: all-electronics-online.com
SKU: 676725875
Availability: InStock
Rating: 4.4 (130 reviews)

Price:	US $ 0.15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Lighting
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Jwl

Product Description

Product Description

Strip Terminal Connector H/U:
1) Material: PA/ PP/ PE
Working temperature: -30'C to 110'C. (PA) / -20'C to 90'C(PP). / -40'C to 65'C(PE).
2) Brass,screw is iron plated zinc.
3) Voltage: 250-450V.
4) Color:According sample picture or customized.

Item no.	L	W	H1	H2	Φ	E1	E2	screw size	material
Item no.	mm							screw size	material
3A 4mm 2	92.3	16.8	12.3	7.7	3	7.8	5.7	M2.5*4	PE PP PA
6A 6mm 2	115.4	18.8	15.4	8.7	3.2	9.6	6.3	M3*5	PE PP PA
10A 10mm 2	129.3	20.7	16	9.5	4.2	11	7.6	M3*6	PE PP PA
15A 12mm 2	137.8	22.5	18.6	10.3	4.5	11.7	8.6	M3*7	PE PP PA
20A 14mm 2	138	22.5	19	10.7	4.7	12	8.6	M4*6.5	PE PP PA
30A 16mm 2	164	25.5	20	11.7	5.6	13.9	9.3	M4*7	PE PP PA
60A 25mm 2	186	29.2	25.3	14.8	6.6	15.7	10.8	M4*9	PE PP PA
80A 35mm 2	226.8	36.1	29	18	7.8	19.2	13.2	M5*11	PE PP PA
100A 40mm 2	254.8	45	34.7	22.3	9	20.5	19.2	M6*12	PE PP PA

Why chose us:
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Certificate: CE&RoHS&OTHERS
11) Free sample

We are specialized in terminal block, bus bar, DIN rail etc.
Only part of the products are listed above, please visit our web, contact us for detailed information.

MOQ: Amount More than 1000 USD.
Payment: A. 30% TT in advance, 70% TT before delivery
B. Negotiable
Delivery: 10-20 days after received receipt of deposit.

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
