| Prod Model: |
CT-406 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue /Black |
| Accuracy Class: |
0.1/0.2 |
| Product Type: |
Bus Bar-Type Current Transformer |
| Frequency: |
50/60Hz |
| Encapsulation: |
Cast Resin |
| Product Application: |
Precise Measurement of Current and Power |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
| Installation: |
Pin Mount |
Product Description

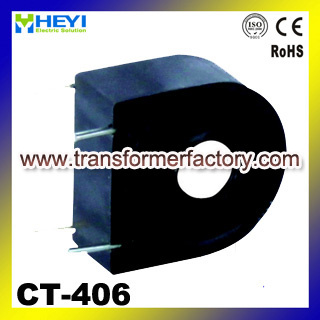

CT-406 mini current transformer
| Product description: |
- Completely-enclosed, good mechanical behavior, suitable environments, strong voltage
isolation ability, delicate appearance;
- The secondary lead wire is pin format, which can be directly welded on a PCB;
- The primary lead wire could be pin, soft wire as well as tin-plated copper-core wire;
- Linear output current, high precision;
- Small volume, light weight, easy for installation;
- Encapsulated with epoxy resin to ensure strong insulation ability;
- PBT anti-combustion plastic casing. |
| Model | Specification | Rated Pr .Current | Max Current | Rated Sec Current | Rated sampling voltage | Load Resistance | Accuracy Class |
| CT-406 | 5A / 2.5mA | 5A | 40A | 2.5mA | 50mV | 20Ω | 0.1/0.2 |
| 5A/5mA | 5A | 20A | 5mA | 100mV | 20Ω | 0.2 |
| 10A /4mA | 10A | 40A | 4mA | 80mV | 20Ω | 0.1 |
| 20A/ 20mA | 40A | 48A | 20mA | 400mV | 20Ω | 0.1 |
Features:
High accuracy more than class0.1.
Low profile,compact size and flexible to arrange line
Various ways for fixing,which are reliable and flexible.
Convenient in application and installation
Flexible design for measurement and protecting
Used in universal and be in good interchangeability
Technical parameter:
working frequency:AC50-400Hz
flame retardant rating:UL94 V-0
Dielectric strength:2.500/minute
Insulation resistance:1.000MΩ at 500VDC
Surge voltage:5.000V(1.2/50 standard thunder wave)
Working temperature:-10~75°C
Storage temperature:-25°C~75°C
Accuracy class:IEC60044-1 CT class0.1,class0.2
Customer specifications are available
Application
Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
Over current protection circuit of motor and other electrical appliances.
Useage: Work in all kinds of electrical meter and metering fields.
Strength: 1. Good material, sampling resistance precision and stable.
2. Various type.
3. Good service: make according to customer requirement.
4. Good electrical performance
We can produce it according to customers' requirements.
Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
Over current protection circuit of motor and other electrical appliances
