20g 30g 50g 100g 200g Micro Force Load Cell

Name: 20g 30g 50g 100g 200g Micro Force Load Cell
Brand: all-electronics-online.com
SKU: 829831825
Availability: InStock
Rating: 4.3 (144 reviews)

Price:	US $ 8/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-51
Usage:	Electronic Weighing Devices

Product Description

Product Discription:

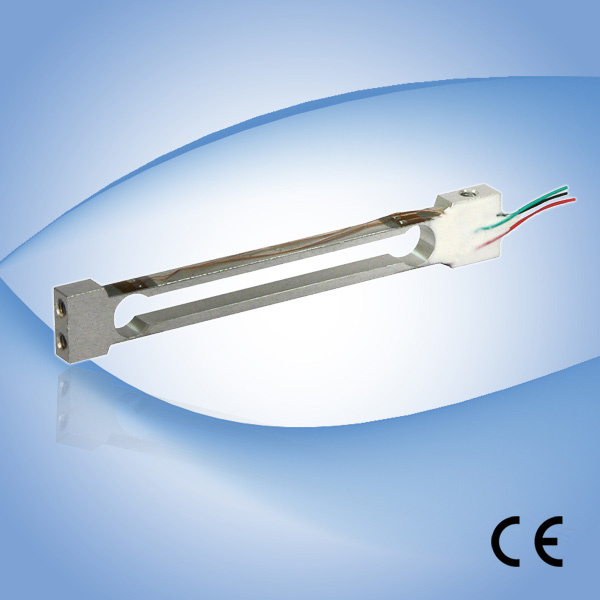

QL-51 miniature sensor are available in the capacities 50g.

Aluminum construction, silicon adhesive sealed, surface anodized and anti-corrosion.

Integral structure and easy installation.

Suitable for electronic balance, electronic platform scale and other electronic weighing devices.

Features:

Capacity :50g

Defend grade: IP65

High accuracy.
Aluminum parallel beam

Integral installation, Low profile and nice exterior.

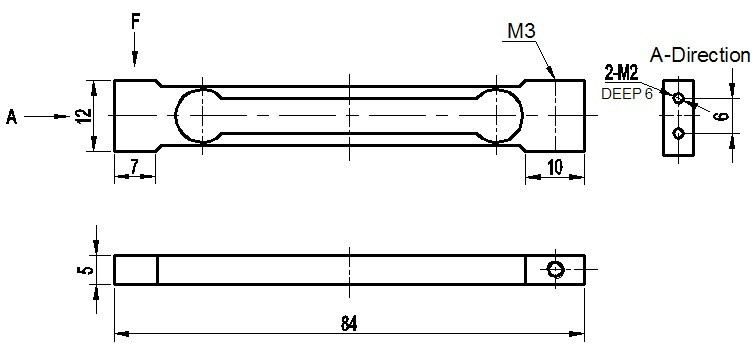

Electrical connection and Dimensions:

Technical Specifications:

Specifications:
capacity	g	50
ultimate overload	%FS	150
rated output	mV/V	0.5±0.15
excitation voltage	Vdc	≤6
combined error	%FS	± 0.05
zero unbalance	mV/V	± 0.5
non-linearity	%FS	± 0.05
hysteresis	%FS	± 0.05
repeatability	%FS	± 0.05
creep	%FS/5min	± 0.05
input resistance	Ω	1055 ± 10
output resistance	Ω	1000 ± 10
insulation resistance	M Ω	≥ 2000 @ 50 Vdc
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.05
Zero temperature unbalance	%FS/10ºC	± 2.0

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white

Four-core shielded cable with polyethylene. Cable is not connected with elastomer.

The cable length could be chose by customer's application.
