20kv Epoxy Resin Instrument Potential Transformer Vt

Name: 20kv Epoxy Resin Instrument Potential Transformer Vt
Brand: all-electronics-online.com
SKU: 722436432
Availability: InStock
Rating: 4.5 (106 reviews)

Price:	US $ 58/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZW-20 JDZXW-20G
Keyword:	20kv Instrument Potential Transformer Vt
Model:	20kv Vt Potential Transformer
Jdzw-20 Jdzxw-20g:	20kv Potential Instrument Transformer
Accuracy Class:	0.2, 0.5
Rated Insulation Level (Kv):	24/65/125
Surface Creepage Distance (mm):	860
Once Fuse (a):	0.2
Wt (Kg):	56
Color:	Red
Material:	Epoxy Resin
Application:	Instrument
Type:	Voltage Transformer
Phase:	Single

Product Description

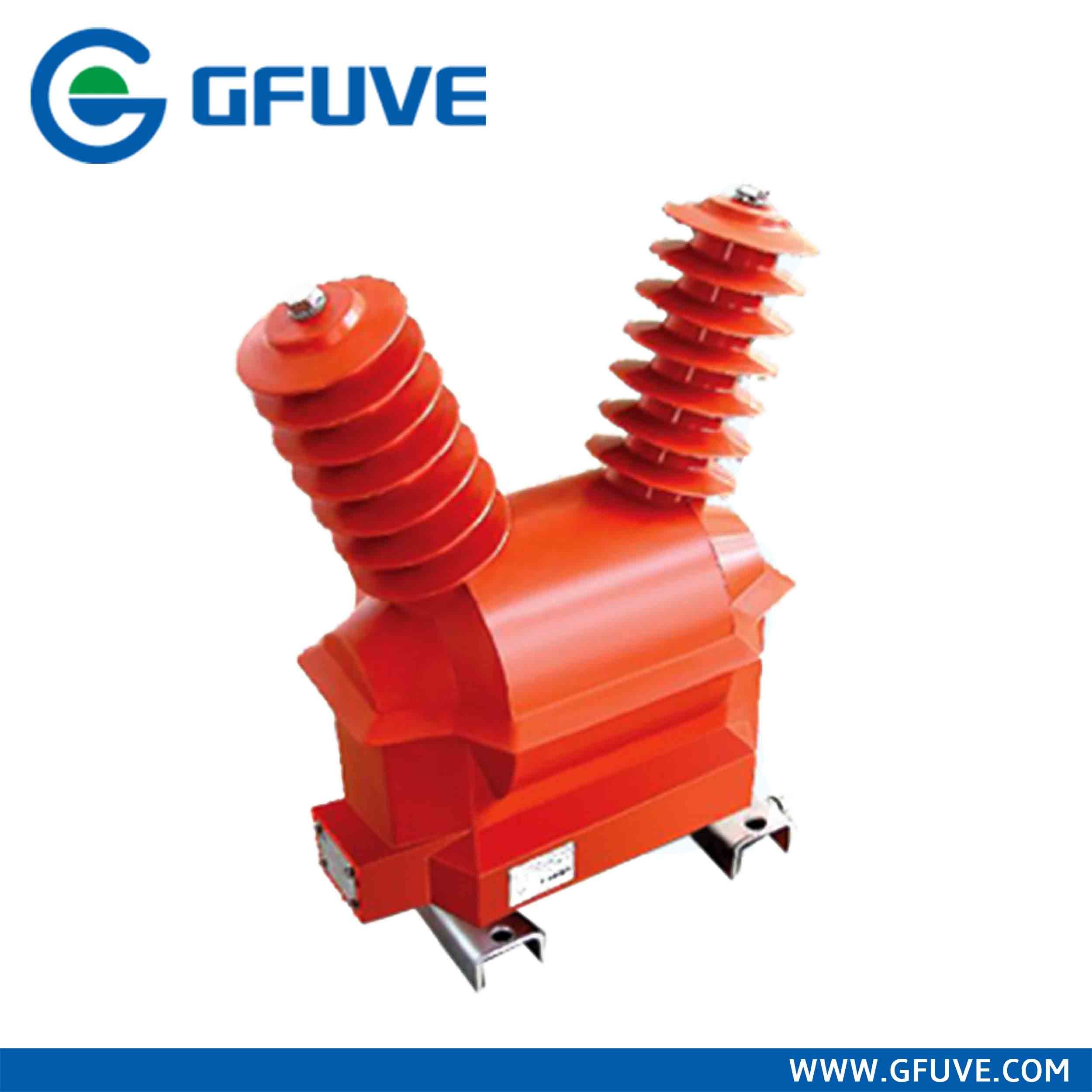

20KV Epoxy resin instrument potential transformer vt
This model of instrument current and voltage transformers includes two versions: JDZW-20 and JDZXW-20G. The units are cast in epoxy resin and fully enclosed. The units are suitable for electric systems of rated frequency of 50/60Hz and rated voltage of 24kV and below. They are used in indoor or outdoor service conditions. The products are designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
GFUVE Electronics is a medium voltage potential transformer Manufacturer. This model JDZW-20 JDZXW-20G are outdoor Voltage Transformers in the 20kV class with performance ratings coinciding with industry standard product offerings. GFUVE Electronics, because of product depth, familiarity with international standards and custom design capability can also design a solution to your specific needs.

parameters

Model	Rated Voltage Ratio(KV)	Accuracy class and Accuracy class combination rated secondary output (VA)	Limited output (VA)	Rated insulation level (KV)	Surface creepage distance (mm)	Once fuse(A)	Wt(KG)
JSZW-20	20000/100	0.2---40 0.5---100 1---250 3---500	800	24/65/125	860	0.2	56
	20000/220	0.2---40 0.5---100 1---250 3---500	800
	20000/100/100	0.2/0.2---20/20 0.2/0.5---20/30 0.5/0.5---50/50	400/400
	20000/220/220	0.2/0.2---20/20 0.2/0.5---20/30 0.5/0.5---50/50	500/800
JDZXW-20G	20000/√3 100/√3 100/√3	0.2/6P(3P)---30/100 0.5/6P(3P)---60/100 1/6P(3P)---150/100 3/6P(3P)---250/100	600
JDZXW-20G	20000/√3 100/√3 100/√3 100/√3	0.2/0.2/6P(3P)---15/15/100 0.2/0.5/6P(3P)---15/15/100 0.5/0.5/6P(3P)---40/40/100	300/300

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
