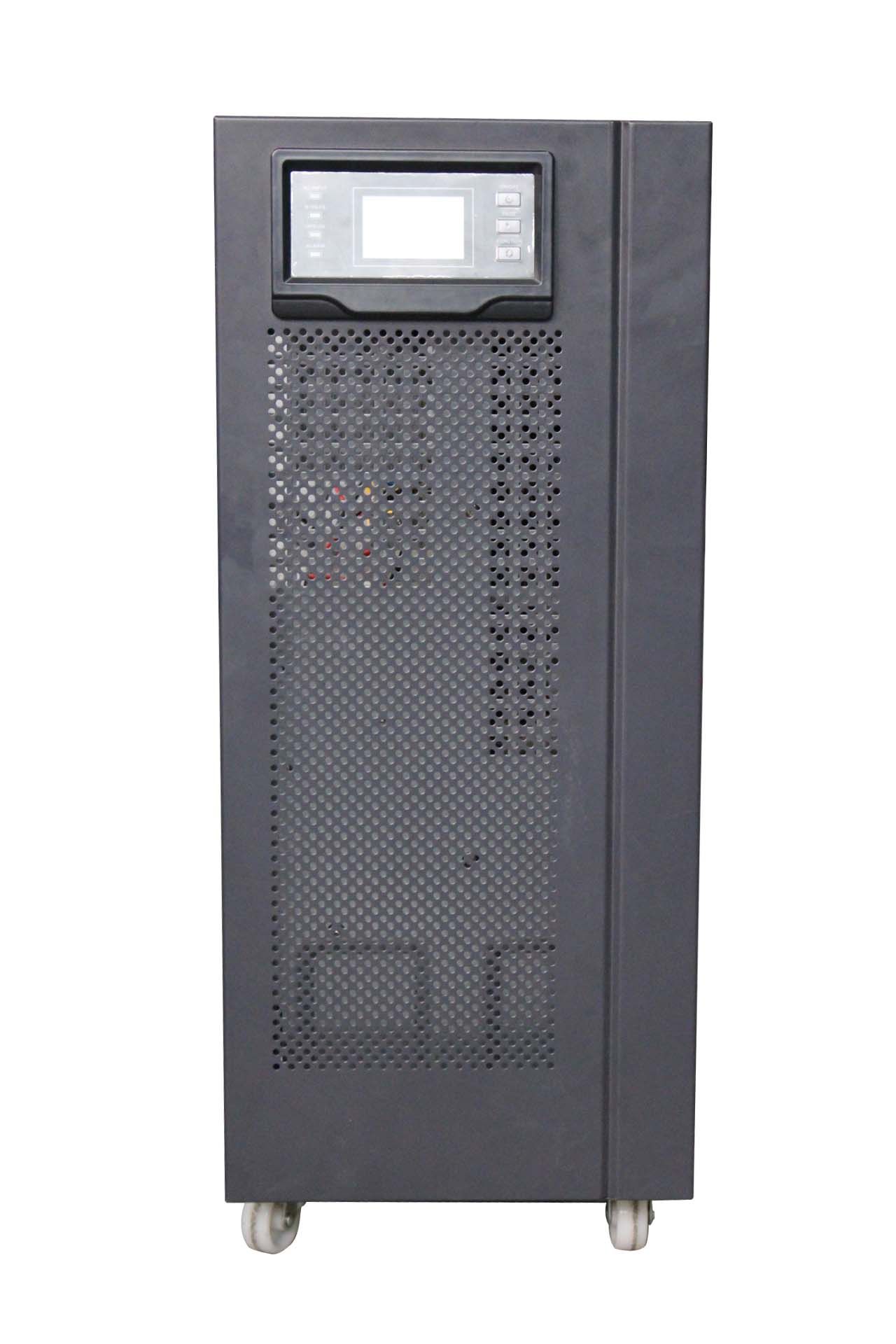

20kVA High Frequencey UPS DC192V

Name: 20kVA High Frequencey UPS DC192V
Brand: all-electronics-online.com
SKU: 722012705
Availability: InStock
Rating: 4.5 (58 reviews)

Price:	US $ 960-980/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3C20KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50/60Hz
Wave Form:	Pure Sinewave
Battery:	Lead Acide Free Battery
Output Volatage:	110V/220V
Input Volatage:	110V /220V
Certificate:	CE
Shape:	Castle
Transfer Time:	Zero
Power Factor:	0.7
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage

Product Description

Servers, Data centers, Critical network devices, Sensitive electronic equipment, Telecom.

Online-Double conversion
Non Transfer Time of output
PFC technology
Full digital control (DSP)
Output power factor:0.8
Input current harmonic:5%
ECO function
Charging/Rectifier/Inverter fully digital control technology
Optimization battery group, the quantity of battery:16/18/20 pieces (optional)
Wide input voltage range:304~478VAC
Wide input frequency range:40~70Hz±0.5Hz
Self-testing when UPS startup
Input over/under-voltage protection
Automatic bypass
DC start
Fault isolation
Comunication port:RS232 , dry contact,RS485*2
Options:SNMP card/Centralized monitoring card/ Parallel port module

Body {background:#C0EBC6 !Important;}div {background-color:#C0EBC6 !Important;}header,nav,table,th,tr,td,dl,UL,li,ol,fieldset,form,h1,h2,h3,h4,h5,h6,pre {background:Transparent !Important;}* {color:#363636 !Important;}a:Link,a:Link *,a:Link:Hover,a:Link:Hover *,a:Link:Active,a:Link:Active * {color:#3E3822 !Important;}a:Visited,a:Visited *,a:Visited:Hover,a:Visited:Hover *,a:Visited:Active,a:Visited:Active * {color:#0060BF !Important;}body {background:#C0EBC6 !Important;}div {background-color:#C0EBC6 !Important;}header,nav,table,th,tr,td,dl,UL,li,ol,fieldset,form,h1,h2,h3,h4,h5,h6,pre {background:Transparent !Important;}* {color:#363636 !Important;}a:Link,a:Link *,a:Link:Hover,a:Link:Hover *,a:Link:Active,a:Link:Active * {color:#3E3822 !Important;}a:Visited,a:Visited *,a:Visited:Hover,a:Visited:Hover *,a:Visited:Active,a:Visited:Active * {color:#0060BF !Important;}

Capacity	3C10KS	3C15KS	3C20KS
Rated Power	10000VA/8000W	15KVA/12KW	20KVA/16KW
Output Voltage	208VAC/220VAC/230VAC/240VAC
Voltage Waveform	Pure Sine Wave
Crest Factor	3:01
Output Frequency (Synchronized- Mains)	46~54Hz Or 56Hz - 64Hz (Line Mode)50/60HZ/ ±0.05Hz( Battery Mode)
Regulation(Nominal)	±1%
Regulation (Battery Mode)	±1%
Transfer Time	Zero
Over Current Protection	Line Mode:10min@100%~130%;Battery Mode:30s@100%~130%
Outlet	Hard Wiring With Terminal Block
Harmonic Distortion	≤2%THD(Linear Load);≤5%THD(Non-Linear Load)
Input
Capacity	3C10KS	3C15KS	3C20KS
Nominal Voltage	277-520VAC@Full Load
Input Frequency	46~54Hz / 56~60Hz
Efficiency	90% (AC Mode) 90%(Battery Type)
Noise Filtering	Full Time EMI/RFI Filtering
Over Current Protection	By AC Fuse Or By Re-Settable Over Current Protector
AVR Range (2 Bucks,2 Boosts)	Enhanced Buck: +15% Of Selected Nominal Voltage Buck Mode: +5% Of Selected Nominal Voltage Boost Mode: -5% Of Selected Nominal Voltage Enhanced Boost: -12.5% Of Selected Nominal Voltage
Phase	Three Phase Input and Single Phase Output
Battery
Battery Type	Sealed Lead Acid Battery.
Rated Charging Voltage	Depending On The Capacity Of External Batteries
Typical Backup Time	Depending On The Capacity Of External Batteries
Charging Method	Smart Pulse Charging With Two Charging Modes. Quick Charging When Battery Is Not Fully Charged, Trickle Charging When Battery Is 90% Fully Charged.
Charging Current(MAX)	4.0/8.0A
Protection	Over Current Protection & OverCharging Voltage Protection (SCRControl) Thermal Protection (CPU Control) When Temperature Inside UPS Is Over 45°C, Charger Will Stop Charging For 2.5 Minutes Followed By An 1.5 Minutes Charging. The Cycle Will BeRepeated Until The Temperature is Lower Than 44°C.
Temperature Compension	Yes
Numbers Of Battery	DC192V, Depending On The Capacity Of External Batteries
Optional Features
ECO Mode	Support
CVCF	Support
PDU	Support
Remote Panel	Wired Type, Up To 100M Length
Parallel Redundancy	Up To 4 Units Max (Option)
Environmental And Safety
Operating Temperature	0 °C To 40°C (32F To 104F )
Transit/Storage Temperature	-15°C To 55°C (5F To 131F)
Relative Humidity	20-90%(NON-CONDENSING)
Operating Altitude	0 ~ 3000 Meters
Audible Noise	≤50 Dba
Safety Markings	BSMI	CE
EMC	Class B, EN50091-2, FCC Part15, IEC1000-2-2
Quality Control System	ISO 9001:2000
Noise Level	<60db@1 Meter
Indicator
LED Version	Load Level/Battery Level/Battery Mode; AC Mode/Bypass Mode/Fault
Battery Mode	Sounding Every 4 Seconds
Low Battery	Sounding Every Second
Overload	Sounding Twice Every Second
Fault	Continously Sounding
LCD Version	Load/Battery/Input/Output/Operating;Mode Information
Interface
Smart RS-232	Software Supports Windows Family. Sun Solaris, IBM Aix, Compaq True64,SGIIRIX ,Freebsd.HP-UX, And MAC
USB (Option)	Windows Family& MAC
Internal Slot(Option)	SNMP/AS400 Relay Card/Rs485 (Option)
EPO(Option)	Support Emergency Shutdown
Physical
Dimensions: (D×H×W)mm	595390578mm
N.W/G.W (Kg)	595390578mm
N.W/G.W (Kg)	3C10KS:27	3C15KS:35	3C20KS:35
Packing	Standard Packing, Export Carton For Each Unit
