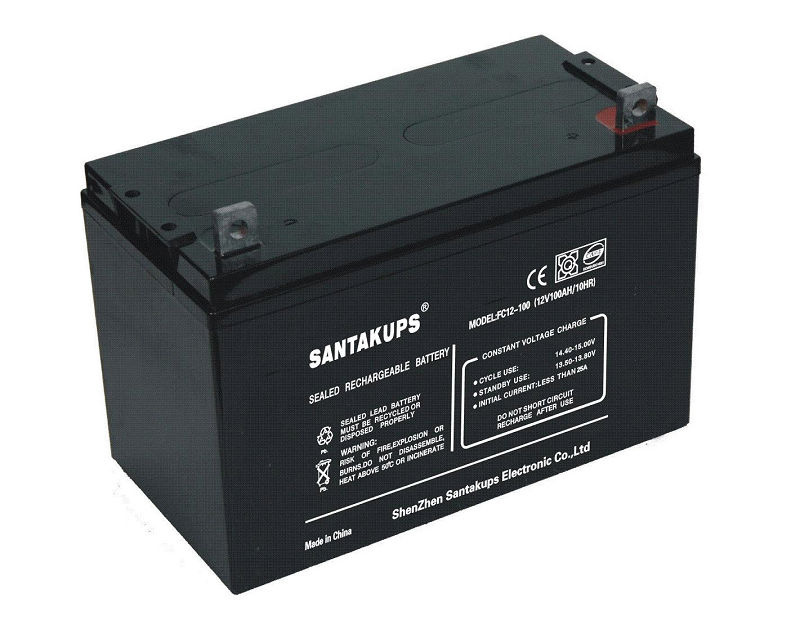

Solar System Sealed Lead Acid Battery 12V

Prod Model:	FC12-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Type:	Lead-Acid Battery
Voltage:	2V /6V /12V
Warranty:	1-3years
Design Life:	10years
Type:	Lead-Acid Batteries
Usage:	Boat
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

solar system sealed lead acid battery 12v

Sepecification:
Nominal voltage: 12V
Nominal capacity: 12Ah (20-hour rate)
Dimensions:
Total height: 102mm
Length: 152m
Width: 99mm
Height: 96mm
Approximate weight: 3.6kg

Features:
Long service life: 5-7 years design life
Low self-discharge: Lower than 3% of rated capacity per month under normal operating temperature
ABS case (can be made with flame retardant V0)
No memory effect after repetitious usage or discharges
Maintenance-free Operation
Sealed construction and leakproof
Safety Valve Regulated System
Operating in any position
Deep discharge recovery
Wide operating temperature range

Applications:
Telecom
Control Equipment
UPS
Communication Equipment
Medical Equipment
Emergency Power System

Model No	Rate Voltage(v)	Rate Capacity (AH)	Size (MM)				Weight (KG)	Temnal
			L	W	H	Total H
FC6-4.0	6	4/20HR	70	47	101	107	0.69	F1	E
FC6-4.0CUT	6	4/20HR	70	47	101	107	0.69	CUT	E
FC6-4.5	6	4.5/20HR	70	47	101	107	0.75	F1	E
FC6-4.5CUT	6	4.5/20HR	70	47	101	107	0.75	CUT	E
FC6-5	6	5/20HR	70	47	101	107	0.8	F1	E
FC6-7.0	6	7.0/20HR	151	34	95	101	1.11	F1	A
FC6-10	6	10/20HR	151	50	94	100	1.63	F1	A
FC6-12	6	12/20HR	151	50	94	100	1.75	F1	A
FC6-180AT	6	180/10HR	260	180	247	251	28	T5	E
FC6-180BT	6	180/10HR	306	168	220	226	27	T5	E
FC6-200AT	6	200/10HR	260	180	247	251	30	T5	E
FC6-200BT	6	200/10HR	323	178	224	229	29.5	T5	E
FC12-4	12	4/20HR	90	70	101	107	1.38	F1	A
FC12-4.5	12	4.5/20HR	90	70	101	107	1.48	F1	A
FC12-5	12	5/20HR	90	70	101	107	1.6	F1	A
FC12-7	12	7.0/20HR	151	65	94	100	2.15	F2	D
FC12-7.5	12	7.5/20HR	151	65	94	100	2.22	F2	D
FC12-8.5	12	8.5/20HR	151	65	94	100	2.4	F2	D
FC12-10	12	10/20HR	152	99	96	102	3.2	F2	D
FC12-12	12	12/20HR	152	99	96	102	3.4	F2	D
FC12-14.5	12	15/20HR	152	99	96	102	3.8	F2	D
FC12-17	12	17/20HR	181	77	167	167	5.2	L1	B
FC12-20	12	20/20HR	181	77	167	167	6	L1	B
FC12-24AQ	12	24/10HR	165	126	174	179	7.7	L6	B
FC12-24AT	12	24/10HR	165	126	174	174	7.7	T2	B
FC12-26AT	12	26/10HR	166	175	126	126	8.4	T2	B
FC12-26AP	12	26/10HR	166	175	126	126	8.4	L2	B
FC12-33AQ	12	33/10HR	196	130	155	179	10	L7	A
FC12-33AT	12	33/10HR	196	130	155	167	10	T2	A
FC12-38AQ	12	38/10HR	197	166	174	179	12.3	L6	A
FC12-38AT	12	38/10HR	197	166	174	174	12.3	T2	A
FC12-38BQ	12	38/10HR	198	166	174	174	12.3	L7	A
FC12-38BT	12	38/10HR	198	166	172	172	12.3	T2	A
FC12-42AQ	12	42/10HR	198	166	174	174	12.9	L7	A
FC12-42AT	12	42/10HR	198	166	174	174	12.9	T2	A
FC12-42AP	12	42/10HR	198	166	172	172	12.9	L4	A
FC12-50AQ	12	50/10HR	258	134	200	200	15.5	L8	A
FC12-50BT	12	50/10HR	229	138	208	212	15.5	T3	A
FC12-55AP	12	55/10HR	229	138	208	226	17.4	L4	A
FC12-55AT	12	55/10HR	229	138	208	212	17.4	T3	A
FC12-65AQ	12	65/10HR	350	167	178	178	20.2	L9	B
FC12-65AT	12	65/10HR	350	167	178	178	20.2	T3	B
FC12-65BP	12	65/10HR	350	167	178	178	20.2	L4	A
FC12-70AQ	12	70/10HR	350	167	178	178	21.3	L9	B
FC12-70AT	12	70/10HR	350	167	178	178	21.3	T3	B
FC12-70BT	12	70/10HR	260	169	211	215	21.7	T3	A
FC12-70BQ	12	70/10HR	260	169	211	231	21.7	L11	A
FC12-80AQ	12	80/10HR	331	174	214	240	24.8	L12	B
FC12-80AT	12	80/10HR	331	174	214	219	24.8	T4	B
FC12-80BT	12	80/20HR	260	169	211	215	23.3	T3	A
FC12-80BQ	12	80/20HR	260	169	211	231	23.3	L11	A
FC12-90AQ	12	90/10HR	307	169	211	227	26.7	L13	A
FC12-90AT	12	90/10HR	307	169	211	215	26.7	T3	A
FC12-90BQ	12	90/10HR	331	174	214	240	28	L12	B
FC12-90BT	12	90/10HR	331	174	214	219	28	T4	B
FC12-100AQ	12	100/10HR	331	174	214	240	29.5	L12	B
FC12-100AT	12	100/10HR	331	174	214	219	29.5	T4	B
FC12-100BT	12	100/10HR	328	172	217	222	29.5	T4	A
FC12-100DQ	12	100/10HR	407	174	210	233	33	L15	A
FC12-100DT	12	100/10HR	407	174	210	233	33	T5	A
FC12-120AQ	12	120/20HR	331	174	214	240	32.3	L12	B
FC12-120AT	12	120/20HR	331	174	214	219	32.3	T4	B
FC12-120BQ	12	120/10HR	407	174	210	233	34.5	L14	A
FC12-120BT	12	120/10HR	407	174	210	233	34.5	T5	A
FC12-150AQ	12	150/20HR	484	171	241	241	43.5	L16	A
FC12-150AT	12	150/20HR	484	171	241	241	43.5	T4	A
FC12-160AQ	12	160/10HR	532	206	216	240	48.3	L17	C
FC12-160AT	12	160/10HR	532	206	216	221	48.3	T4	C
FC12-180AQ	12	180/10HR	532	206	216	240	55.8	L17	C
FC12-180BT	12	180/10HR	532	206	216	221	52.5	T4	C
FC12-180CT	12	180/10HR	522	240	219	244	55.5	T5	C
FC12-200AQ	12	200/10HR	522	240	219	244	58.5	L17	C
FC12-200AT	12	200/10HR	522	240	219	224	58.5	T5	C
FC12-250AQ	12	250/10HR	520	268	220	245	70.5	L17	C
FC12-250AT	12	250/10HR	520	268	220	225	70.5	T5	C
