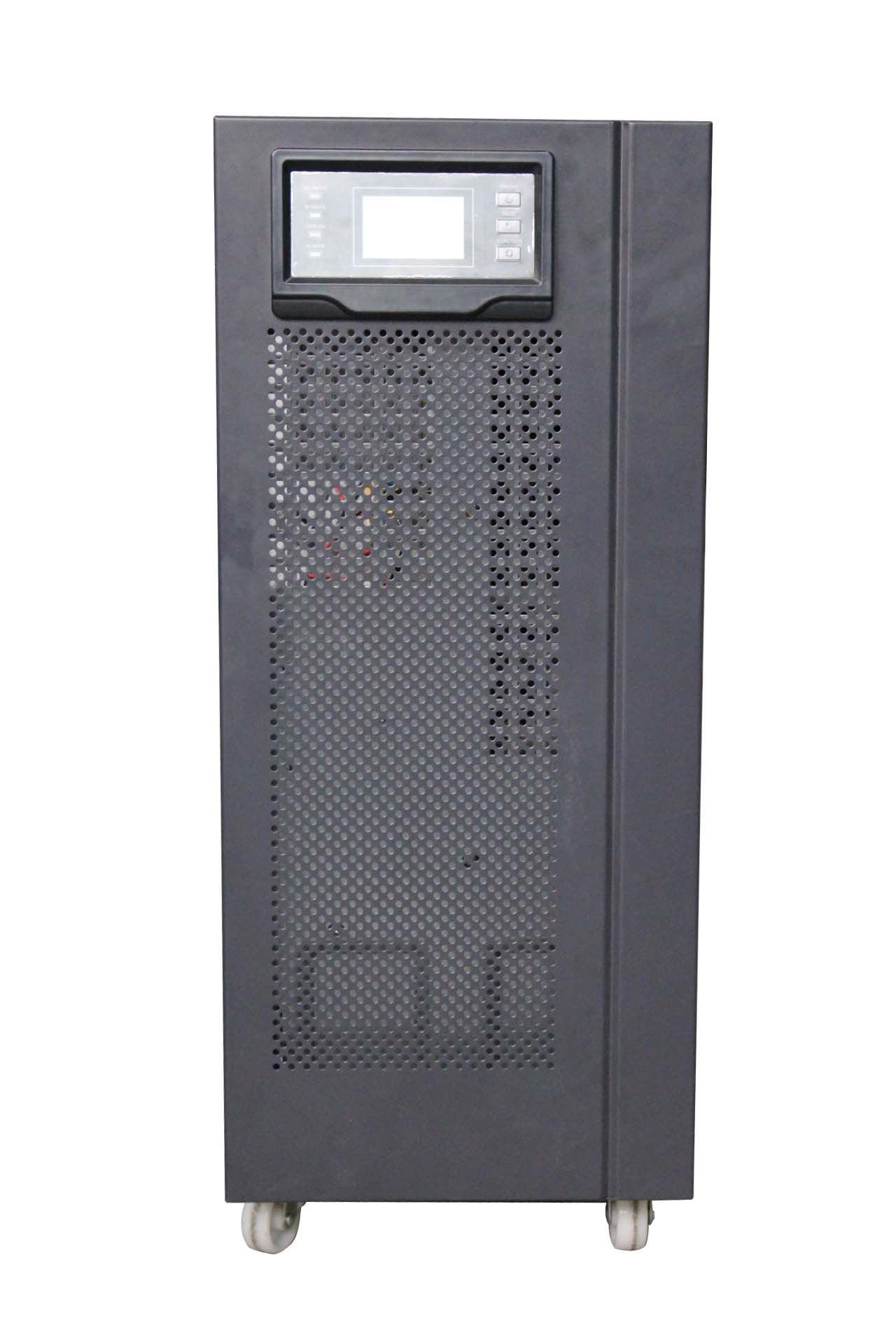

High Frequency Online UPS (C10KVA)
| Price: |
US $ 353-365/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
C10KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
50/60Hz |
| Wave Form: |
Pure Sinewave |
| Battery: |
Lead Acide Free Battery |
| Output Volatage: |
110V/220V |
| Input Volatage: |
110V /220V |
| Certificate: |
CE |
| Shape: |
Castle |
| Transfer Time: |
Zero |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
Product Description
Servers, Data centers, Critical network devices, Sensitive electronic equipment, Telecom.- Online-Double conversion
- Non Transfer Time of output
- PFC technology
- Full digital control (DSP)
- Output power factor: 0.8
- Input current harmonic: 5%
- ECO function
- Charging/Rectifier/Inverter fully digital control technology
- Optimization battery group, the quantity of battery: 16/18/20 pieces (optional)
- Wide input voltage range: 304~478VAC
- Wide input frequency range: 40~70Hz±0.5Hz
- Self-testing when UPS startup
- Input over/under-voltage protection
- Automatic bypass
- DC start
- Fault isolation
- Comunication port: RS232 , dry contact,RS485*2
- Options: SNMP card/Centralized monitoring card/ Parallel port module
|
MODEL |
STANDARD |
C6K |
C10K |
C6KS |
C10KS |
3C10KS |
3C15KS |
3C20KS |
|
CAPACITY |
VA/W |
6KVA 4.8KW |
10KVA 8KW |
6KVA 4.8KW |
10KVA 8KW |
10KVA 8KW |
15KVA 12KW |
20KVA 16KW |
|
INPUT |
Nominal Voltage |
220/230/240VAC |
380VAC |
|
Voltage Range |
120-275VAC |
210-475VAC |
|
Frequency Range |
46-64Hz: 50Hz, 60Hz auto sense |
|
Phase |
Single phase with Ground |
Three phase (4 Wires+Ground) |
|
Power Factor |
>=0.99 |
>=0.95 |
|
OUTPUT |
Voltage |
220/230/240*(1±1%)VAC |
|
Frequency |
50/60Hz(Adjustable) |
|
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1±0.1%) |
|
60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.1%) |
|
Wave Form |
Pure Sine Wave |
|
Power Factor |
0.8 |
|
Harmonic Distortion |
=<2% THD (Linear Load), =<6% THD (Non-Linear Load) |
|
Overload Capacity |
Normal when load < 105%; 105%-125% for 1 min, 125%-150% for 30sec |
|
Current Crest Ratio |
3:1 |
|
Connections |
Terminal block |
|
Efficiency |
To AC Mode |
88% |
85% |
|
To Battery Mode |
up to 90% |
|
Battery |
Type |
Sealed free maintenance lead acid battery |
|
Nominal DC voltage |
Built in batteries 12v7.2ah*16pcs |
192VDC |
192VDC |
|
Quantity |
16pcs |
16pcs |
Depends on requested back-up time |
Depends on requested back-up time |
|
Back-up Time (Full load) |
>=7 minutes |
>=5 minutes |
Depends on the capacity of external battery bank |
Depends on the capacity of external battery bank |
|
Recharge Time |
7 hours to 90% |
Depends on the capacity of external battery bank |
Depends on the capacity of external battery bank |
|
Charge current (MAX) |
2.0A |
4.2A or 8A |
4.2A or 8A |
|
Charge voltage |
220Vdc ± 1% |
|
Bypass |
Automatic Transfer |
On overload and UPS failure |
|
Before UPS Power-on |
Default "ON" user adjustable to "YES" |
|
Transfer Time |
|
Zero |
|
Indicators |
LED Display |
UPS status, I/P & O/P voltage& frequency, Battery voltage, Battery capacity, Loading, Fault code |
|
Audible Alarm |
|
Bypass, On battery mode, Battery low, Overload, Fault |
|
Acoustic noise |
At 1 meter distance |
<55dB |
<60dB |
|
Communications |
Intelligent RS232 serial port |
Windows 98/NT/2000/XP/2003, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC |
|
SNMP (Optional) |
Power management from SNMP manager and web browser |
|
USB (Optional) |
Windows family software and Mac OS |
|
Environmental |
Operating Temperature |
0~40 °C |
|
Operating Humidity |
20~90% ( Non Condensing) |
|
Weight |
Net weight (kg) |
57 |
67.5 |
18 |
20 |
27 |
35 |
35 |
|
UPS Dimension |
L*W*H (mm) |
500*248 *616 |
500*248 *616 |
500*240 *460 |
500*240 *460 |
500*248 *616 |
500*248 *616 |
500*248 *616 |
Shenzhen Must Energy Technology Co., Ltd. Established in Shenzhen in 1998, Which is leading manufacturer of power protection produtcs & service solutions including UPS, power inverters, Solar inverters, charge controllers, Batteries, AVR for more than ten years, with a strong R&D team, internal automation equipment design and manufacturing capability, as well as continuous quality improvement, Santakups Electronic Company has become the leading supplier for long backup time power solution in the new world of information technology.
We' Ve kept our defect rate well under 0.5 percent. Logo printing service is available on request.
