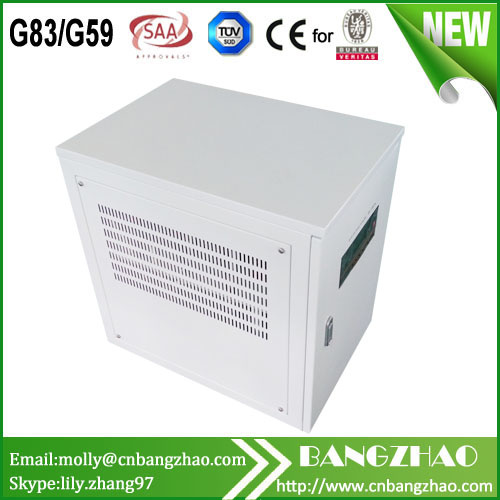

20kw 3 Phase on Grid Inverter with LCD Display

20kw 3 Phase on Grid Inverter with LCD Display
Price: US $ 1000-5000/Piece
Trade Terms: FOB,CIF,CIP
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: BZS-20KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Wave Form: Pure Sine Wave
Product Type: DC to AC
Apply For: Solar System
MPPT`: 200-850V
Waterproof: IP20

Product Description

BZS Series Grid Tie Solar Inverter with higher efficiency, lower loss, higher reliability which are high-quality products are developed and produced by our company. The price ratio of BZS is the most competitive one among the green power in the market.
BZS series convert renewable, advanced power (such as solar, wind, fuel cells, micro turbines, batteries ) into electrical power that can be used as a primary or backup power source for homes and small businesses to Industrial and utility applications.

PV grid-connected power system includes PV modules, grid-connected inverter, meter and power switch board. The PV modules convert the solar energy to the DC power, then the grid-connected inverter the DC power to the sine wave AC power which has the same frequency and phase with the grid voltage. The AC power feed in the gridpartly and the other powers supply the local loads.

Using the fifth generation lntellingent Power Module from Mitsubishi,
Improve the system efficiency higher
High conversion efficiency
Advanced technology for maximum power point tracking(MPPT)
(>97%)MPPT efficiency
Wide input voltage range
High reliability due to compltte protection function
Powerful communication interfaces
Easy operation and installation
Easy-to-set multilingual LCD display
Adjustable protection / operation parameters


Model

BZS 20KW


DC Input

MPPT Voltage Range

DC200~850V

Recommend PV Array
Open Circuit Voltage

600V

Control System

MPPT






AC Output

Output Power

20KW

Rate voltage

AC380V

voltage range

AC 342 ~ 418 V

Normal Grid Frequency

50/60Hz(Grid frequency)

Phases

3 phase 4 wire

Power Factor

>0.95

Current THD

At rated power and in the sine wave <5%

Control System

PWM

Anti-islanding

≤0.5 sec

Output Overload

100%

Max. Efficiency

97%

Euro Efficiency

96.4%





Structure

Protection Class

IP20

Cooling system

Natural cooling

Noise

<60dB

Data Interfaces

External RS232C/RS485

Web Module( Option)

RS232C to TCP/IP

Display

LCD

Dimensions(W*H*D)

470*1650*580mm

Weight

140kgs


Protection

Inverter

Input overvoltage, output short circuit, overheat, output DC component.

Grid

Anti-islanding, over/under voltage of grid, over/under frequency of grid.



Environment

Environment

No corrosion gas, flammable gas, oil mist, dust etc.

Operation temperature

-10ºC~40ºC(50ºC)

Stored temperature

-20ºC~65ºC

Relative humidity

0~100% (Do not wet with dew)


FAQ:
Q 1. What's the payment term?

A. We accept TT,Western Union,Paypal,MoneyGram.

Q 2.How's the delivery time ?

A. Is due to order quantity, usually it will take about 3-7days for sample production,

Q 3.Tell me the standard of package?

A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or  wooden case for protection.


Q 4.Would you accept to use our logo ?

A.It's no problem to do OEM.

Q 5.We want to know month capacity.

A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs.


Q 6.Where is your market?

A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.


Q 7. What kind of certificate you have ?

A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .




OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.



Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.

2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most



Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.

2.By our forwarding agent(by air or by sea).

3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
