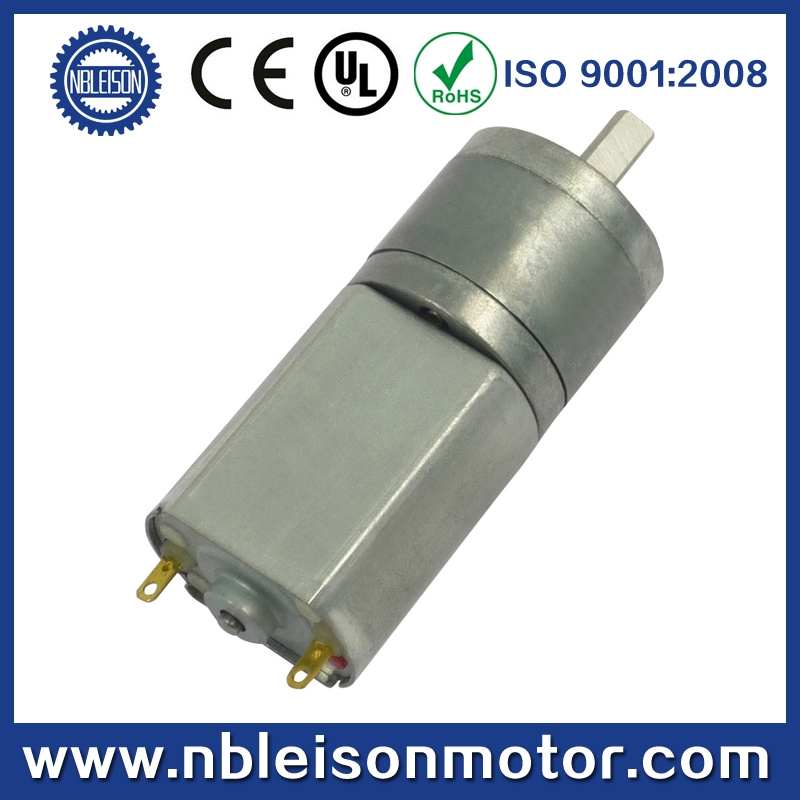

20mm 6V 12V PMDC Micro Gear Reduction Electric Motor

Name: 20mm 6V 12V PMDC Micro Gear Reduction Electric Motor
Brand: all-electronics-online.com
SKU: 771755485
Availability: InStock
Rating: 4.4 (107 reviews)

Price:	US $ 3.38-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LS-20GA130
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gear:	Metal Gear
Construction:	Permanent Magnet
Commutation:	Brush
Rotation Direction:	Reversible
Shaft:	Round, D-Cut, Hole Thread or Other Customized
Gear Type:	Spur Gear
Lubrication:	Grease
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Application:	Robot, Toys, Door Lock, Monitor

Product Description

1. Voltage: 3V, 4.5V, 5V, 6V, 7V, 9V, 12V 24V

2. Speed: 5-1000rpm, Other special speed can be requirement

3. Reductin Ratio: 1: 10 to 1: 650

4. Rated toque: 0.1-3kg. Cm.

5. Dimension: 20mm dia gearbox, 25.1mm motor body length, 4mm shaft diameter, 16-21mm gearbox length 10mm standard shaft length

6. Application in: Robot, Automatic Door Lock, Toys, Value, home appliance and medical equipment

7. Can accept customizied requirment after evaluation.

The datasheet only typical data for reference, Please fell free to contact with me if you want this motor

Specificaton or drawing.

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY					STARTING
	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TOROUE		OUTPUT	TOROUE		CURRENT
	NOMINAL	r/min	mA	r/min	mA	mN. m	g. cm	W	mNm	g. cm	mA
LS-20GA130-10	12	1300	100	1000	350	14.7	150	1.5	78.4	800	1500
LS-20GA130-25	6	270	140	200	450	34.3	350	0.75	147	1500	1300
LS-20GA130-62	12	140	60	100	200	39.2	400	0.41	245	2500	500
LS-20GA130-25	12	750	130	550	1200	98	400	0.5	441	1200	4000

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
