21/35kv Mv Insulted Power Cables Three Cores Cables to IEC 60502
| Price: |
US $ 0.3-18/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
N2XSEFGBY, N2XSEBY |
| Rated Voltage: |
21/35kv |
| Number Of Core: |
3 |
| Refer Standard: |
IEC 60502-2 |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CE |
| Sheath Material: |
PE/PVC |
| Wire Core Material: |
Cu or Al |
| Model: |
N2xsefgby,N2xseby |
| Brand: |
Jl |
Product Description
21/35kv MV Insulted Power Cables Three Cores Cables to IEC 60502 Standards:IEC 60502 Part 2(3.6/6KV to 18/30KV)21/35kv MV Insulted Power Cables Three Cores Cables to IEC 60502 Application:
The single core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 1.8/3KV to 26/35KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

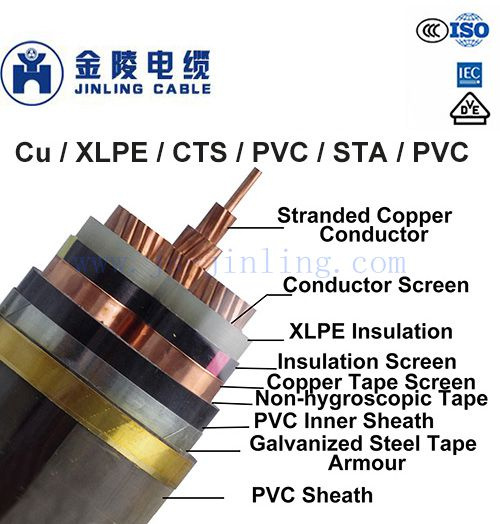

21/35kv MV Insulted Power Cables Three Cores Cables to IEC 60502 Construction:
Conductor: Plain annealed copper or aluminium complying with IEC 60228 class 1 or 2.
Conductor Screen: The conductor screen consists of an extruded layer of non metallic, semi-conducting compound applied on top of a semi-conducting tape.
Insulation: Insulation is of polyvinyl chloride (PVC) intended for 1.8/3.6KV and 3.6/6KV cables, cross-linked polyethylene compound (XLPE)
| Nom. Cross Section Area | Insulation Thickness at Nominal Voltage |
| 1.8/3KV | 3.6/6KV | 6/10KV | 8.7/15KV | 12/20KV | 18/30KV | 21/35KV | 26/35KV |
| (Um=3.6KV) | (Um=7.2KV) | (Um=12KV) | (Um=17.5KV) | (Um=24KV) | (Um=36KV) | (Um=42KV) | (Um=42KV) |
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm |
| | XLPE | XLPE | XLPE | XLPE | XLPE | XLPE | XLPE | XLPE |
| 10 | 2 | 2.5 | - | - | - | - | - | - |
| 16 | 2 | 2.5 | 3.4 | - | - | - | - | - |
| 25 | 2 | 2.5 | 3.4 | 4.5 | - | - | - | - |
| 35 | 2 | 2.5 | 3.4 | 4.5 | 5.5 | - | - | - |
| 50 - 185 | 2 | 2.5 | 3.4 | 4.5 | 5.5 | 8 | 9.3 | 10.5 |
| 240 | 2 | 2.6 | 3.4 | 4.5 | 5.5 | 8 | 9.3 | 10.5 |
| 300 | 2 | 2.8 | 3.4 | 4.5 | 5.5 | 8 | 9.3 | 10.5 |
| 400 | 2 | 3 | 3.4 | 4.5 | 5.5 | 8 | 9.3 | 10.5 |
| 500 - 1600 | 2.2-2.8 | 3.2 | 3.4 | 4.5 | 5.5 | 8 | 9.3 | 10.5 |
Insulaton Screen: The insulation screen consists of an extruded layer of non metallic, semi-conducting compound extruded over the insulation of each core. The extruded semi- conducting layer shall consist of bonded or cold strippable semi-conducting compound capable of removal for jointing or terminating.
Inner Covering & Fillers: The inner covering and fillers are made of non hygroscopic material like polypropylene.Separation Sheath (for armoured cable): The separation sheath comprises a layer of extruded PVC, PE or LSZH, applied under the armour .
Lapped Bedding : The lapped bedding consists of Polyester non woven fabrics .The thickness is1.5mm
Armour (for armoured cable): It consists of either flat galvanized steel wire armour (strip), round galvanized steel wire armour, and double steel tape armour.
Outer Sheath: PVC, PE, HDPE, MDPE or LSZHInstallation and operation condition of cable:Operating Temperature: up to 70°C (PVC insulation); up to 90°C (XLPE or EPR insulation)
Temperature Range: -5°C ( PVC sheath ); -20°C ( PE sheath )
Short Circuit Temperature( 5 seconds maximum duration ): 140-160°C (PVC insulation);
250°C (XLPE)
Bending Radius: 12 x OD
Current Rating Conditions:
Ground Temperature: 20°C
Ambient Temperature (air): 30°C
Depth of Soil: 0.8m
Thermal Resistance of Soil: 1.5K•m/W| Rated Voltage Uo/U | Operating Voltage (Um) | Testing Voltage
(rms) |
| 21/35KV | 42KV | 73.5(53)*KV |
21/35KV (Um=36KV) Power Cables Three Cores Cables to IEC 60502 Dimensional Data:Nom.
Cross-Section
Area | Steel Flat Wire Armoured Cables | Double Steel Tape Armoured Cables |
Nom.
Bedding Thickness | Armour Wire Size | Nom.
Sheath Thickness | Approx.
Overall Diameter | Approx.
Weight | Nom.
Bedding Thickness | No of Steel Tapes x Nom Tape Thickness | Nom.
Sheath Thickness | Approx.Overall Diameter | Approx.
Weight |
| CU | AL | CU | AL |
| 50 | 1.9 | 0.8 | 3.3 | 80.5 | 9825 | 8986 | 1.9 | 2x0.5 | 3.5 | 82.5 | 9625 | 8786 |
| 70 | 2 | 0.8 | 3.6 | 85.5 | 11015 | 9769 | 2 | 2x0.8 | 3.8 | 87.6 | 10825 | 9569 |
| 95 | 2.1 | 0.8 | 3.8 | 88.5 | 12360 | 10580 | 2.1 | 2x0.8 | 3.9 | 90.5 | 12116 | 10327 |
| 120 | 2.1 | 0.8 | 3.9 | 91.5 | 13900 | 11715 | 2.1 | 2x0.8 | 4 | 94.5 | 13306 | 11110 |
| 150 | 2.1 | 0.8 | 4 | 94.8 | 15160 | 12440 | 2.1 | 2x0.8 | 4.1 | 97.5 | 14550 | 11830 |
| 185 | 2.2 | 0.8 | 4.1 | 99.5 | 17500 | 13450 | 2.2 | 2x0.8 | 4.2 | 101.7 | 16810 | 12765 |
| 240 | 2.3 | 0.8 | 4.2 | 104.1 | 19390 | 14890 | 2.3 | 2x0.8 | 4.4 | 107.5 | 18650 | 14150 |
| 300 | 2.4 | 0.8 | 4.4 | 109.5 | 21970 | 16280 | 2.4 | 2x0.8 | 4.6 | 112.8 | 21200 | 15500 |
| 400 | 2.5 | 0.8 | 4.6 | 116.3 | 25600 | 18430 | 2.5 | 2x0.8 | 4.8 | 118.8 | 24780 | 17600 |
Nominal screen area, as stated in the table, can be supplied as standard.| Nom. Cross- Section Area | D C Resistance
CU / AL | A C Resistance
CU / AL | Short Circuit Rating of Conductor
CU / AL
(1 sec) | Capaci tance | Charging Current | Short Circuit Rating of Copper Wire Screen Per Core(1 sec) | Short Circuit Rating of Copper Tape Screen Per Core(1 sec) | Reactance | Inductance |
| 50 | 387/641 | 494/822 | 6.8/4.4 | 135 | 0.91 | 2.6 | 1.1 | 140 | 450 |
| 70 | 268/443 | 343/568 | 9.8/6.3 | 151 | 1.01 | 2.6 | 1.1 | 134 | 415 |
| 95 | 193/320 | 248/410 | 13.3/8.5 | 166 | 1.11 | 2.6 | 1.2 | 126 | 405 |
| 120 | 153/253 | 196/325 | 17.2/11.0 | 179 | 1.21 | 2.6 | 1.2 | 123 | 385 |
| 150 | 124/206 | 159/265 | 21.2/13.5 | 189 | 1.29 | 4.3 | 1.3 | 118 | 375 |
| 185 | 99.1/164 | 128/211 | 26.6/17.0 | 202 | 1.38 | 4.3 | 1.3 | 114 | 365 |
| 240 | 75.4/125 | 98/161 | 34.9/22.3 | 221 | 1.49 | 4.3 | 1.4 | 109 | 345 |
| 300 | 60.1/100 | 80/130 | 43.8/28.0 | 240 | 1.65 | 4.3 | 1.5 | 105 | 335 |
| 400 | 47.0/77.8 | 64/102 | 57.3/36.6 | 267 | 1.75 | 5.8 | 1.6 | 101 | 305 |
21/35KV (Um=36KV) Power Cables Three Cores Cables to IEC 60502 Electrical DataNom.
Cross-Section Area | Nom.
Insulation Thickness | Copper Tape Thickness | Copper Wire Screen Area* | Unarmoured Cables | Steel Wire Armoured Cables |
Nom.
Sheath Thickness | Approx.
Overall Diameter | Approx.
Weight | Nom.
Bedding Thickness | Armour Wire Size | Nom.
Sheath Thickness | Approx.
Overall Diameter | Approx.
Weight |
| CU | AL | CU | AL |
| 50 | 10.5 | 0.1 | 16 | 3.4 | 79.7 | 5928 | 5053 | 1.9 | 3.5 | 4 | 93.5 | 12050 | 11150 |
| 70 | 10.5 | 0.1 | 16 | 3.5 | 83.6 | 6900 | 5634 | 2 | 4 | 4.1 | 97.5 | 13150 | 11850 |
| 95 | 10.5 | 0.1 | 16 | 3.6 | 87.2 | 7863 | 6131 | 2.1 | 4 | 4.2 | 101.5 | 14800 | 12950 |
| 120 | 10.5 | 0.1 | 16 | 3.8 | 90.7 | 8817 | 6634 | 2.2 | 4 | 4.4 | 105.5 | 16050 | 13800 |
| 150 | 10.5 | 0.1 | 25 | 3.9 | 94.1 | 10085 | 7361 | 2.3 | 4.5 | 4.5 | 108.5 | 17420 | 14640 |
| 185 | 10.5 | 0.1 | 25 | 4 | 99.1 | 11573 | 8120 | 2.3 | 4.5 | 4.6 | 112 | 19200 | 15700 |
| 240 | 10.5 | 0.1 | 25 | 4.1 | 103.6 | 13387 | 9023 | 2.4 | 4.5 | 4.7 | 117 | 21050 | 16800 |
| 300 | 10.5 | 0.1 | 25 | 4.3 | 109.2 | 15658 | 10060 | 2.5 | 4.5 | 4.8 | 122.5 | 24900 | 19100 |
| 400 | 10.5 | 0.1 | 35 | 4.5 | 115.6 | 19013 | 11657 | 2.6 | 4.5 | 5.1 | 129 | 29200 | 21560 |
