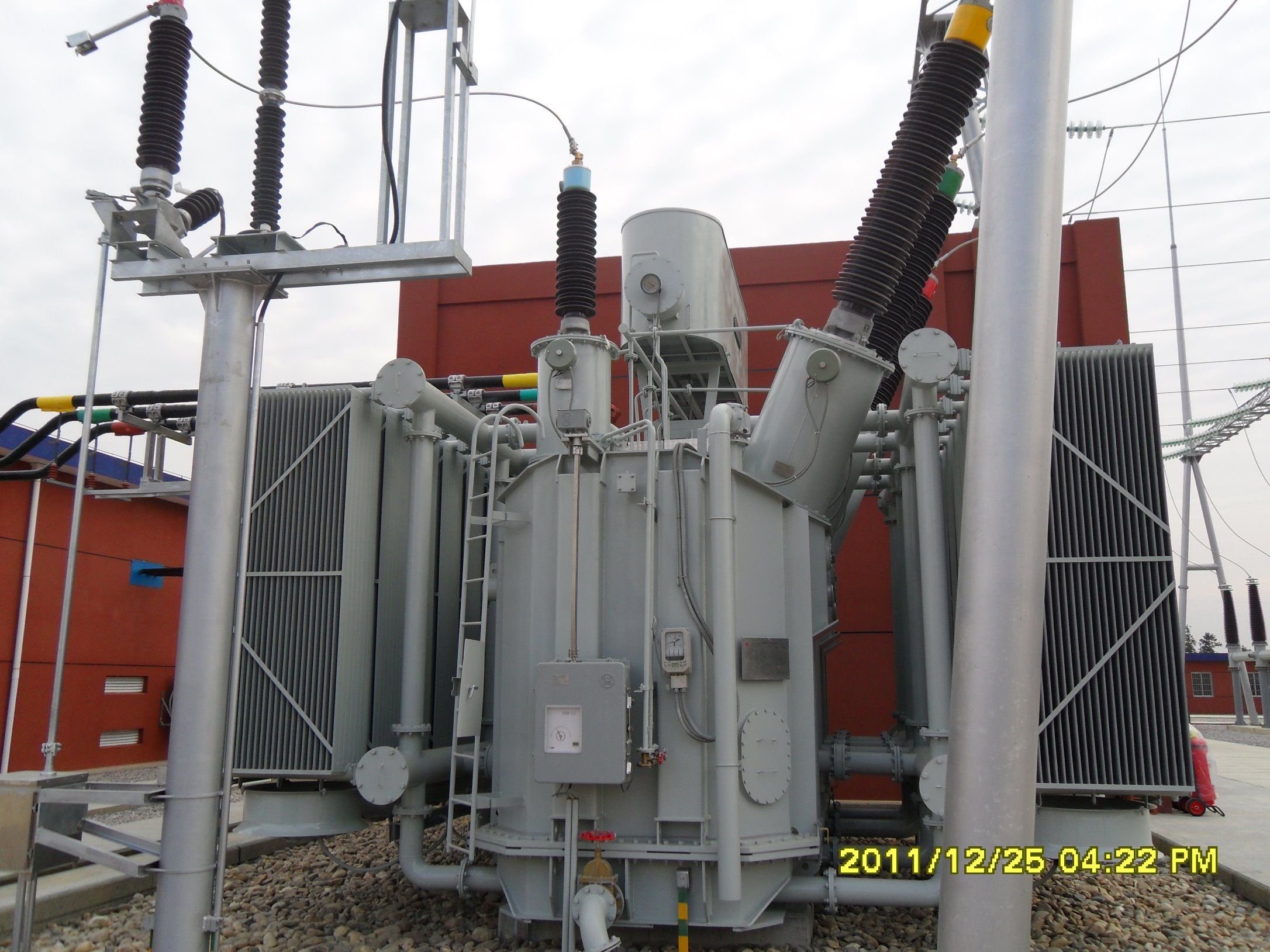

22.9kv 60Hz/50Hz Zigzag Transformer with Netural Grounding Resistor
| Price: |
US $ 5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
ZIGZAG |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
Product Description
TECHNICAL CHARACTERISTICS.TABLE OF TECHNICAL DATA TRANSFORMER ZIG ZAG 22.9 KV - SET NUEVA CAJAMARCA.| ÍTEM | CHARACTERISTICS | UNITY | REQUIRED VALUE | OFFERED VALUE |
| 1 | General | | | |
| | Country | | Specify | China |
| Manufacturer | | Specify | HEMG |
| Manufacturing standards | | IEC 60076-6 Acapite 10
IEC 60296 | IEC 60076-6 Acapite 10
IEC 60296 |
Type | | Submerged in oil or other superior insulation. | Submerged in oil |
| Main Nominal Voltage | kV | 22.9 | 22.9 |
| Short-term neutral current | A | 300 | 300 |
| Duration of neutral current of short duration | S | 10 | 10 |
| Frequency | Hz | 60 | 60 |
| Permanent neutral current | A | 10 | 10 |
| Short time current to ground for 60 sec | KA | 25 | 25 |
| Conservation system | | Airtight with gas mattress | Airtight with gas mattress |
| Connection | | Zigzag | Zigzag |
| Type of liquid | | Natural Ester | mineral oil |
Insulation system | | 120° C (TUP Thermally enhanced paper)TUP | 120° C (TUP Thermally enhanced paper)TUP |
| Cooling Mode | | ONAN | ONAN |
| 2 | Conditions of service | | | |
| | Altitude | msnm | <1000 | <1000 |
Air temperature |
°C | 28°C anytime | 28°C anytime |
| 25°C Monthly average of the warmest month | 25°C Monthly average of the warmest month |
| 20°C Annual average | 20°C Annual average |
| 5°C minimum | 5°C minimum |
| Degree of pollution | mm/kV | 25 | 25 |
| Seismic disturbance | g | Specify | 0.2 |
| 3 | Temperature limits | | | |
| | Thermal class | °C | 105 | 105 |
| Heating of the upper liquid | °C | 60 | 60 |
| Average warming of windings | °C | 65 | 65 |
| Warmest spot heating | °C | 78 | 78 |
| 4 | Insulation level inside | | | |
| | Higher Material Voltage | kV | 24 | 24 |
| Primary impulse voltage | kVpico | 50 | 50 |
33 | | Applied voltage | kV | 125 | 125 |
| 5 | External Insulation Level | | | |
| | Higher Material Voltage | kV | 36 | 36 |
| Primary impulse voltage | kVpico | 170 | 170 |
| Applied voltage | kV | 70 | 70 |
| 6 | Guaranteed Parameters | | | |
| | Lost in vacuum | W | 500 | 500 |
| Excitation current | % | 0.3 | 0.3 |
| Homopolar impedance | /fase | 45 | 45 |
| 7 | Weights and dimensions | | | |
| | Dielectric liquid weight | kg | Specify | 550 |
| Total weight | kg | Specify | 1700 |
| Length x Width x Height | mm | According to design | 1600x950x1300 |
| 8 | Classification of atmosphere and coating | | | |
| | Class (NBR 11388) | | Class II | Class II |
| system | | Epoxi | Epoxi |
| 9 | Accessories | | | |
| | Oil level indicator without contacts | 1 Pz | Yes | Yes |
| Contactless overpressure valve | 1 Pz | Yes | Yes |
| Drain valve | 1 Pz | Yes | Yes |
| Contactless bimetallic thermometer | 1 Pz | Yes | Yes |
| Earthing bar (5x30mm) | 1 Pz | Yes | Yes |
| Sudden pressure relay with a contact | 1 Pz | Yes | Yes |
| Grounding Terminals | 1 Pz | Yes | Yes |
| 10 | Testing | | IEC | IEC |
| 11 | Neutral Resistance | | | |
| | Insulation | | Air | Air |
| | Service | | Exterior | Exterior |
| | Nominal Voltage | kV | 22.9/√3 | 22.9/√3 |
| | Intensity of continuous service | A | 10 | 10 |
| | Short-term Intensity | A | 300-10 s | 300-10 s |
| | Resistance | ohm | 12 | 12 |
| |
Metal enclosure | | AISI-304 stainless steel painted interior and exterior | AISI-304 stainless steel painted interior and exterior |
| | Degree of protection | IP | IP23 | IP23 |
| |
Resistive material | | Chrome-nickel steel AISI-304 Cr18/20%, Ni 18/10%;
Fe resto304 | Chrome-nickel steel AISI-304 Cr18/20%, Ni 18/10%;
Fe resto |
| | Normative | | IEEE Std- 32 | IEEE Std- 32 |
| |
Construction | | Stainless steel stamped grills AISI‐304 (Fe‐Cr18‐
Ni10), Joined by welding points and insulated from each other by ceramic separators. Stainless steel screws304,,. | Stainless steel stamped grills AISI‐304 (Fe‐Cr18‐
Ni10), Joined by welding points and insulated from each other by ceramic separators. Stainless steel screws |
| | Application | | Neutral Residence Zig Zag Z | Neutral Residence Zig Zag |
| |
Equipped with current transformer | | Toroidal current transformer 300/1A, 1.5 VA | Toroidal current transformer 300/1A, 1.5 VA |
| 12 | Protection System | | | |
| | Removable switch | kV | 24 kV | 24 kV |
| | Monitoring relay and fault detection with 50/51 and 50N / 51N function | GLB | Specify | satisfy |
| | Monitoring relay neutral resistance and resistance sensor.. | kV | Specify | satisfy |
TABLE OF TECHNICAL DATA TRANSFORMER ZIG ZAG 20KV - SET RIOJA.| ÍTEM | CHARACTERISTICS | UNITY | REQUIRED VALUE | OFFERED VALUE |
| 1 | General | | | |
| | Country | | Specify | China |
| Manufacturer | | Specify | HEMG |
| Manufacturing standards | | IEC 60076-6 Acápite 10
IEC 60296 | IEC 60076-6 Acápite 10
IEC 60296 |
Type | | Submerged in oil or other superior insulation. | Submerged in oil |
| Primary Nominal Voltage | kV | 20 | 20 |
| Short-term neutral current | A | 300 | 300 |
| Duration of the neutral current of short duration | S | 10 | 10 |
| Frequency | Hz | 60 | 60 |
| Permanent neutral current | A | 10 | 10 |
| Short time current ground for 60 sec 60 | KA | 25 | 25 |
| Conservation system | | Airtight with gas mattress | Airtight with gas mattress |
| Connection | | Zigzag | Zigzag |
| Type of liquid | | Natural Ester | mineral oil |
Insulation system | | 120° C (TUP Thermally enhanced paper) | 120° C (TUP Thermally enhanced paper) |
| Cooling Mode | | ONAN | ONAN |
| 2 | Conditions of service | | | |
| | Altitude | msnm | < 1000 | < 1000 |
Air temperature |
°C | 28°C anytime | 28°C anytime |
| 25°C Monthly average of the warmest month | 25°C Monthly average of the warmest month |
| 20°C Annual average | 20°C Annual average |
| 5°C minimum | 5°C minimum |
| Degree of pollution | mm/kV | 25 | 25 |
| Seismic disturbance | g | Specified | 0.2 |
| 3 | Temperature limits | | | |
| | Thermal class | °C | 105 | 105 |
| Heating of the upper liquid | °C | 60 | 60 |
| Average warming of windings | °C | 65 | 65 |
| Warmest spot heating | °C | 78 | 78 |
35 | 4 | Insulation level inside | | | |
| | Higher material Voltage | kV | 24 | 24 |
| Primary impulse voltage | kVpico | 50 | 50 |
| Applied voltage | kV | 125 | 125 |
| 5 | External Insulation Level | | | |
| | Higher material Voltage | kV | 36 | 36 |
| Primary impulse voltage | kVpico | 170 | 170 |
| Applied voltage | kV | 70 | 70 |
| 6 | Guaranteed Parameters | | | |
| | Lost in vacuum | W | 500 | 500 |
| Excitation current | % | 0.3 | 0.3 |
| Homopolar impedance | /fase | 40 | 40 |
| 7 | Weights and dimensions | | | |
| | Dielectric liquid weight | kg | Specify | 500 |
| Total weight | kg | Specify | 1600 |
| Length x Width x Height ** | mm | According to design | 1600x900x1300 |
| 8 | Classification of atmosphere and coating | | | |
| | Class(NBR 11388) | | Class II | Class II |
| System | | Epoxi | Epoxi |
| Surface Preparation | | Sa 2 1/2 | Sa 2 1/2 |
| 9 | Accessories s | | | |
| | Oil level indicator without contacts | 1 Pz
| Yes | Yes |
| Contactless overpressure valve | 1 Pz | Yes | Yes |
| Drain valve | 1 Pz | Yes | Yes |
| Contactless bimetallic thermometer | 1 Pz | Yes | Yes |
| Earthing bar | 1 Pz | Yes | Yes |
| Sudden pressure relay with a contact | 1 Pz | Yes | Yes |
| Grounding Terminals | 1 Pz | Yes | Yes |
| 10 | TESTING | | IEC | IEC |
| 11 | Neutral Resistance | | | |
| | Insulation | | Air | Air |
| | Service | | Exterior | Exterior |
| | Nominal Voltage | kV | 20/ √ 3 | 20/ √ 3 |
| | Intensity of continuous service | A | 10 | 10 |
| | Short-term current | A | 300-10 s | 300-10 s |
| | Resistance | ohm | 12 | 12 |
| |
Metal enclosure | | Stainless steel AISI- 304 Painted inside and out 304 | Stainless steel AISI- 304 Painted inside and out |
| | Degree of protection | IP | IP23 | IP23 |
| |
Resistive material | | Chrome-nickel steel AISI-304 Cr18/20%, Ni 18/10%;
Fe resto304 | Chrome-nickel steel AISI-304 Cr18/20%, Ni 18/10%;
Fe resto |
| | Normative | | IEEE Std- 32 | IEEE Std- 32 |
| |
Construction | | Stainless steel stamped grills AISI‐304 (Fe‐Cr18‐
Ni10), Joined by welding points and insulated from each other by ceramic separators. Stainless steel screwsAISI‐304(Fe‐Cr18 Ni10),,. | Stainless steel stamped grills AISI‐304 (Fe‐Cr18‐
Ni10), Joined by welding points and insulated from each other by ceramic separators. Stainless steel screws |
6 | | Application | | Neutral Resistance Zig Zag Z | Neutral Resistance Zig Zag Z |
| |
Equipped with current transformer | | Toroidal current transformer 300/1A, 1.5 VA | Toroidal current transformer 300/1A, 1.5 VA |
| 12 | Protection System | | | |
| | Removable switch | kV | 24 kV | 24 kV |
| | Monitoring relay and fault detection with 50/51 and 50N / 51N function | GLB | Specify | satisfy |
| | Neutral resistance monitoring relay and resistance sensor. | kV | Specify | satisfy |
Note:
1.- They must include all the complete equipment (including a Cell) to implement the artificial Neutral in 20 kV and 22.9 kV Bars of the Rioja and Nueva Cajamarca substations, respectively, to guarantee the operation of ground fault protection in networks. 2. - Includes the minimum necessary accessories for the commissioning and operation of the Transformer and equipment associated with the artificial Neutral.
