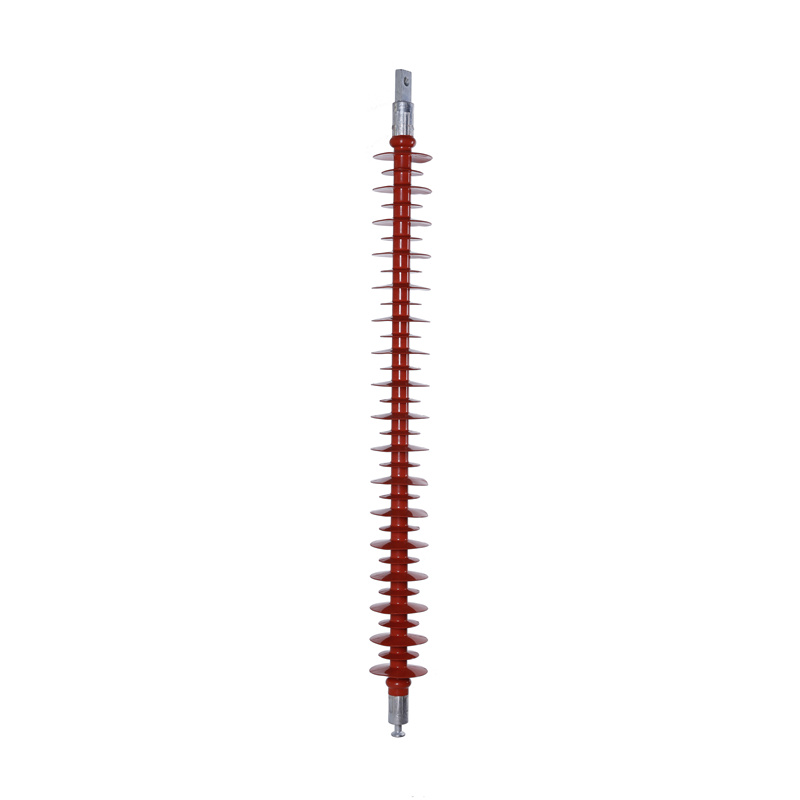

220 Kv Composite Rubber Insulator

Name: 220 Kv Composite Rubber Insulator
Brand: all-electronics-online.com
SKU: 814774315
Availability: InStock
Rating: 5 (75 reviews)

Price:	US $ 3/Piece
Min Order:	300/Piece

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW-220\|100
Breakdown Voltage:	36kv
Moael Number:	Fpq
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	A Type Insulator
Color:	Red or Grey
Brand:	Powery

Product Description

The 220KV Insulator Composite Tension Type 70KN
1.The Composite Insulator are made of insulating rod, connecting fittings and two silicone rubber sheath
2.The fitting end is designed based on the principle of the labyrinth , multi-layer protection, good sealing performance, which solve the most key problem-the most insulator interface electi=rical breakdown.
3. Connection fitting is by computer control anod mandrel coaxial constant pressure of the advanced technology in the world and is equipped with acoustic emission injury detection system, the haedware and the pmandrel which make the connection reliability and stability .
4.have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.

220KV Composite High Tension Insulators Suspension Specification

Model	Rated Voltage(kv)	Nominal tensile load(KN)	Structure height(mm)	Min. Creepage distance(mm)	Lightning impulse withstand voltage(kv)	insulation distance(mm)
FXBW-220\|100	220	100	2240±30	6600	1000	2000

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
