High Voltage Silicone Insulator for Distribution

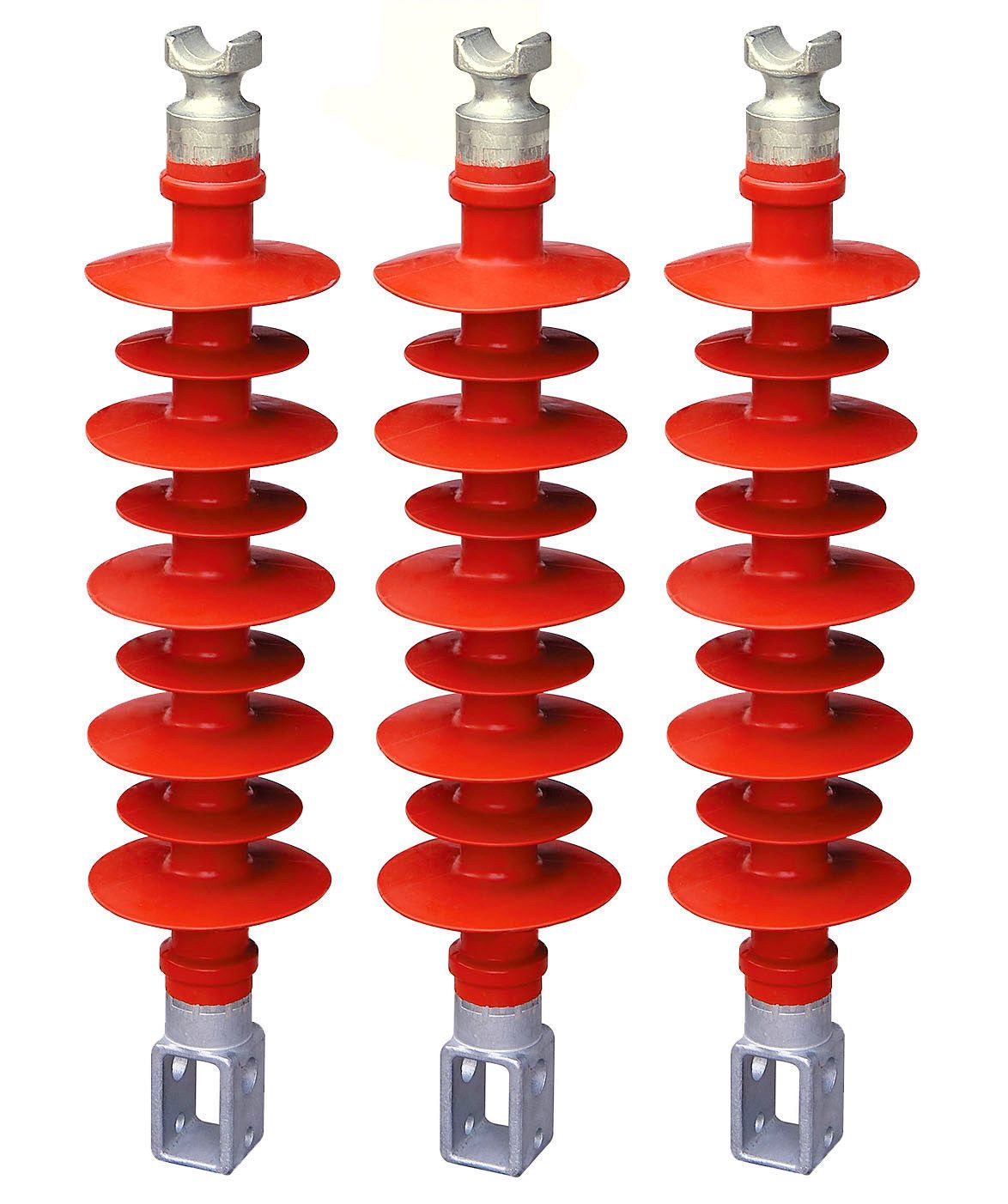

Name: High Voltage Silicone Insulator for Distribution
Brand: all-electronics-online.com
SKU: 815900665
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	US $ 2-5/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FZSW-12/4
Standard:	ANSI C29.13 and IEC 61109
Application:	High-voltage
Structure:	Post Insulator
Type:	A Type Insulator
Material:	Silicone
Color:	Customized
Brand:	Powery

Product Description

Product description

1.Performance
1) reliability improvement. minimizing interruptions and outages due to vandalism, pole fires and
flashovers in all types of environments
2) Shorter maintenance.
3) Power quality perfection. less RI-radio interference and TVI- television interference
4) Energy efficiency . lower losses due to lower leakage currents
5) Safety. light weight for handling and installation
6) Life cycle cost. savings over porcelain insulators
2. Applications
1)Distribution dead end/suspension Insulators are used on overhead lines operating at or below 69 kV
2)These insulators are used to support line conductors in suspension or dead end modes such as line terminations, angles and tangents
3)These insulators can be used with bare or covered conductors
3.Core rod
Core rod of the insulator is made of a high quality, epoxy resin, E-glass fiberglass rod that has been
specially formulated for electrical and mechanical
4. Housing
Housing (includes sheath and sheds) of the insulator is one piece, high temperature vulcanized, injection molded silicone rubber that is chemically bonded to the core rod
This ensures that the interface between the rubber and rod is impenetrable against moisture ingress. SPI uses its own proprietary silicone rubber formula in the manufacture of its insulators
Our company

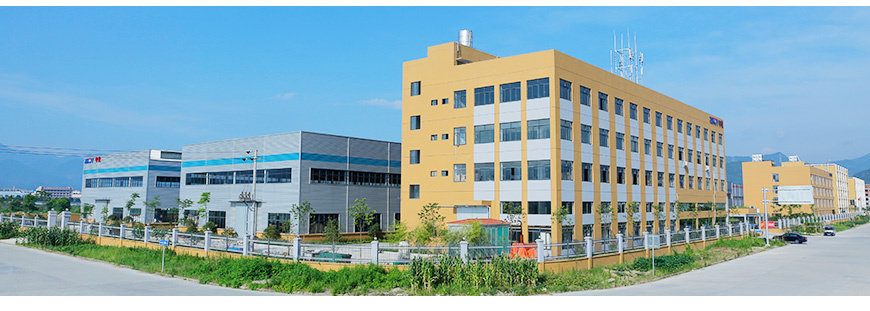

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
