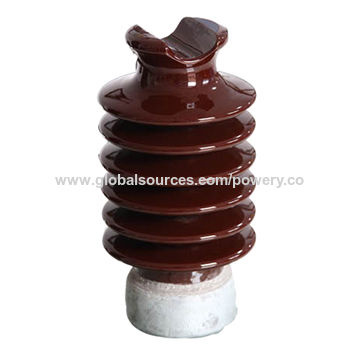

High Voltage Porcelain Post Insulator

Name: High Voltage Porcelain Post Insulator
Brand: all-electronics-online.com
SKU: 815583695
Availability: InStock
Rating: 4.6 (55 reviews)

Price:	US $ 1-10/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI-57-2L-1
Certificaton:	IEC, BS
Surface Processing:	Glazed
Application:	High-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	A Type Insulator
Size Of Bearing Capacity:	11kn
Color:	Brown or White
Brand:	Powery

Product Description

Product Description

specifications

1. Creepage distance: 559mm
2. Protected creepage distance: 200mm
3. Arcing distance: 240mm
4. Cantilever strength: 12.5kN
5. Power frequency withstand voltage(dry): 90kV
6. Power frequency withstand voltage(wet): 65kV
7. Impulse withstand voltage: 150kV
8. Test voltage to ground: 22kV
10. 9. Maximum RIV at 1000KHZ(uV): 100
11. Net weight, Each, Approx: 9.2kg
12. Advantage:
1). original insulator producer
2). superior properties of low and medium temperature resistance;
3). strong aging resistance;
4). nice appearance & long service time.
5). comman glaze and semi-conductor glaze, color brown and gray both available.
6). free sample, professional porcelain insulator supplier.
0UR COMPANY
SHANGHAI POWERY INDUSTRIES CO., LTD. ( SPI ) corporate group has been dealing with the interfaces in the flow of electricity ever since it was founded back in 2011. SPI's three groups - Pole Line Hardware( Tsingtao, China ),High Voltage Line Protection(Lishui, China ), Distribution Transformers( Shinseong, Korea ) - offer a unique set of brands and products. As a specialist in energy transmission and distribution, we offer our customers and business partners a range of sophisticated, future-ready products: For all voltage ranges and wherever reliable, long-lasting systems are needed for powerful energy grids. We are already well-established in all key global markets and are continuing to strengthen our brand on a worldwide scale.SPI has identified key factors that will be instrumental to its sustainabilit

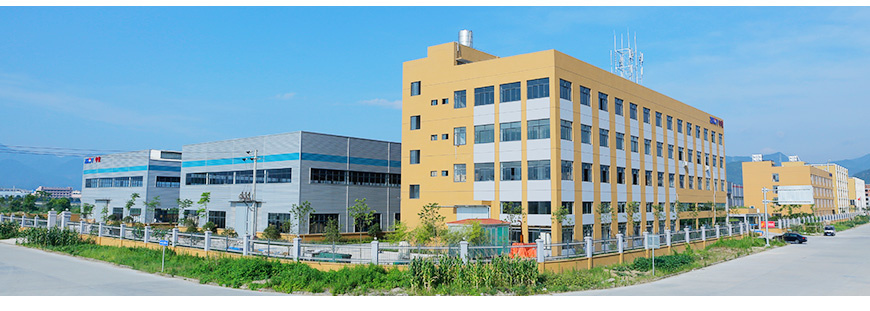

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
