| Prod Model: |
Green Star Series 6K-10Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
12 Months |
| Communication Interface: |
RS232, RS485, etc |
| Color: |
Black |
| AC Efficiency: |
83% |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

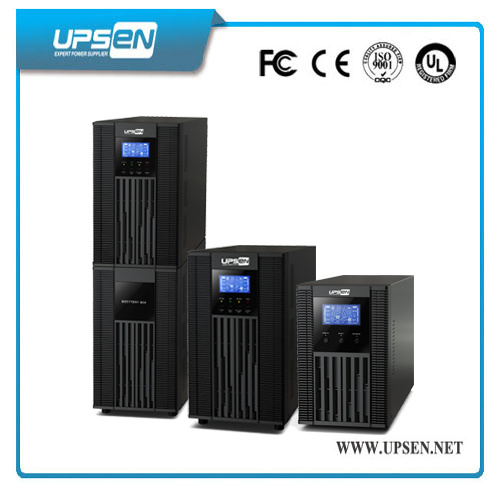

220V 50/60Hz Single Phase backups Online UPS with SNMP card
Model: High Frequency Online UPS Green Star Series 6K-10Kva (1ph in/1ph out)
Key Features
1:Full digitalized micro-processsor control
2:ups power supply has the self test while start
3:DSP technology guarantees high performance
4:Auto restart when power up(battery is empty)
5:Charge current adjustable for long run type
6:excellent adaptability, a reliable power supply solution
7:Backup time is about several hours according to external battery
8:Optional: SNMP card/ Centralized monitoring card/ Parallel port module
9:Digitized charger, with flexible charging parameter setting and battery configuration
10:Direct DC cold start function offers emergency on UPS by battery without utility power
11:DC start when power off, convenient and reliable; Restart automatically when Electricity is restored 12:Input power factor up to 0.99, lower harmonic current, green power, high efficiency & energy saving
Applications
Medical Equipment,National Defense System,Office Automation Telephone and telecommunication equipment,Printing machines,Emergency lighting equipments,microwave oven,squeezer,air-condition,fridge etc.
Technical Specification
| GREEN STAR 6K/10K ONLINE UPS SPECIFICATION |
| MODEL | G6K (L) | G10K (L) |
| PHASE | 1 phase in / 1 phase out |
| CAPACITY | 6000 VA / 4800 W | 10000 VA / 8000 W |
| INPUT |
| Nominal Voltage | 208/220/230/240VAC |
| Voltage Range | Low Line Loss | 110 VAC ± 3% at 50% Load
176 VAC ± 3% at 100% Load |
| Low Line Comeback | 120 VAC ± 3% at 50% Load
186 VAC ± 3% at 100% Load |
| High Line Loss | 300 VAC ± 3% |
| High Line Comeback | 290 VAC ± 3% |
| Frequency Range | | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Power Factor | >= 0.99 @ 100% load |
| OUTPUT |
| Nominal Voltage | 208/220/230/240VAC |
| AC Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | <= 3 % THD (Linear Load)
<= 6 % THD (Non-linear Load) |
| Transfer Time |
Bypass to Inverter
(Line mode) |
Zero |
Inverter to Bypass
(Line mode) |
Zero |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY |
| Line Mode | 89% | 90% |
| Battery Mode | 88% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 7 AH | 12 V / 9 AH |
| Numbers | 16 | 16 |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current |
Default:1.0 A ± 10%,
Max.:2.0A ± 10% |
Default:1.0 A ± 10%,
Max.:2.0A ± 10% |
Float Charging Voltage | 218.4 VDC ± 1% |
| Long-run Model | Battery Type | Depending on applications |
| Numbers | 16-20** (adjustable) |
| Charging Current | Default:4.0 A ± 10%, Max.:6.0A ± 10% |
Default:4.0 A ± 10%,
Max.:6.0A ± 10% |
Float Charging Voltage | 273 VDC ± 1% (based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel |
UPS status, Load level, Battery level, Input/Output voltage,
Discharge timer, and Fault conditions |
ALARM |
| Battery Mode | Sounding every 4 seconds |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model |
Dimension,
D X W X H (mm) |
369 x 190 x 688 | 442 x 190 x 688 |
| Net Weight (kgs) | 60 | 75 |
| Long-run Model |
Dimension,
D X W X H (mm) |
369 x 190 x 318 | 442 x 190 x 318 |
| Net Weight (kgs) | 21 | 23 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 55dBA @ 1 Meter |
Less than 58dBA
@ 1 Meter |
MANAGEMENT |
| Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008,
Windows® 7/8, Linux, Unix, and MAC |
Optional SNMP | Power management from SNMP manager and web browser |
Competitive Advantages:
1 : Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2 : Good after-sales service, we will be full responsible for any faults caused by our side
3 : Professional experience in power field more than 10 years
4 : Professional technical support before and after sales
5 : Timely response, fast delivery time and flexible operations to satisfy any customers' special requests
6 : Free OEM & ODM Service
