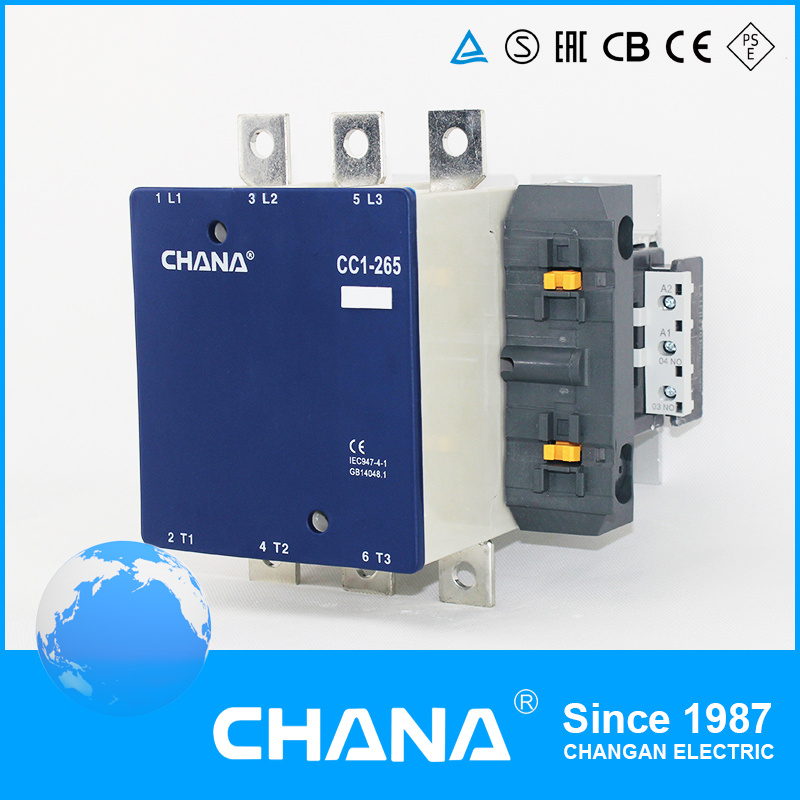

220V AC Industrial Controls Contactor 256A 4poles 3phase Contactor

Name: 220V AC Industrial Controls Contactor 256A 4poles 3phase Contactor
Brand: all-electronics-online.com
SKU: 792592525
Availability: InStock
Rating: 4.3 (74 reviews)

Price:	US $ 65.17-69.23/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC1-265
Export Market:	Global

Product Description

CC1 265A Contactor

1. Description

Remote making&breaking circuits;Protect Circuit from over-load when assembing with thermal over-load relay;frequent start-up and control of Ac contactor;
Electric Ratings:AC50/60Hz,690V,up to 95A;
Utilization catagory:AC-3,AC-4
Altitude:<2000m,
Ambient temperature:-5ºC~+40ºC;
Mounting Cat:III
Mounting conditions:inckination between the mounting plane and the vertical plane should not exceed up&down 5ºC.
Standard:IEC/EN 60947-4-1

2. Specification

Control Coil Valtage (Ac Coil Operation)

Volts(VAC)

110

127

220

230

240

380

415

440

480

500

600

Code

50Hz

60Hz

50/60Hz

Model No.		CC1-115	CC1-150	CC1-185	CC1-225	CC1-265	CC1-330
Rated Conventional Heating Current	Ith(A)	20	20	32	40	50	60
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Le(A)	9	12	18	25	32	40
Rated Operation Current Ue=380/415V	AC-4 Le(A)	3.5	5	7.7	8.5	12	18.5
Power Controlled 3Ph Cage Motor AC3	220/240 kW	2.2	3	4	5.5	7.5	11
	380/415 kW	4	5.5	7.5	11	15	18.5
	660/690 kW	5.5	7.5	10	15	18.5	30
Eletrical life(x10^3 operations)	AC-3	1000	1000	1000	1000	800	800
Eletrical life(x10^3 operations)	AC-4	200	200	200	200	200	150
Mechainical life(x10^3 operations)		10	10	10	10	8	8
Matched Fuse	Size	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00	RT16-00
Matched Fuse	A	20	20	32	40	50	63
Main Circuit		3P or 4P

3. Dimension(mm)

Model	A max	B max	C max
CC1-115	163.5	162	171
CC1-150	163.5	170	171
CC1-185	168.5	174	181
CC1-225	168.5	197	181
CC1-265	201.5	203	213
CC1-330	213	206	219

4. Company Profile

Changan Group Co., Ltd,Establised in 1987,Comprising more than 62 factories with over 2500 employees and the whole corporaion occupies 82000m2 ground during past 30years.we manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,Contactor,Relay,Switch,Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia,Turkey,Europe,south america,Mid-east and Africa Market.

5. FAQ(Packaging & shipping)

Q 1.What's the payment term?
A.We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2.How's the delivery time ?
A.Usually it will take about 25 days for production

Q 3.Tell me the standard of package?
A.Normally are cartons, but also we can pack it according to your requirement.

Q4.Could you offer form a or c/o ?
A.It's totally not a problem.
We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do oem

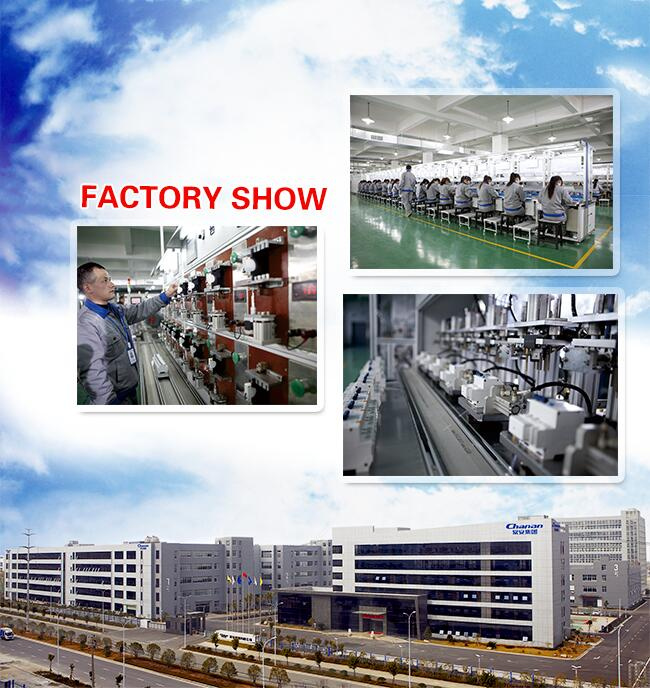

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
