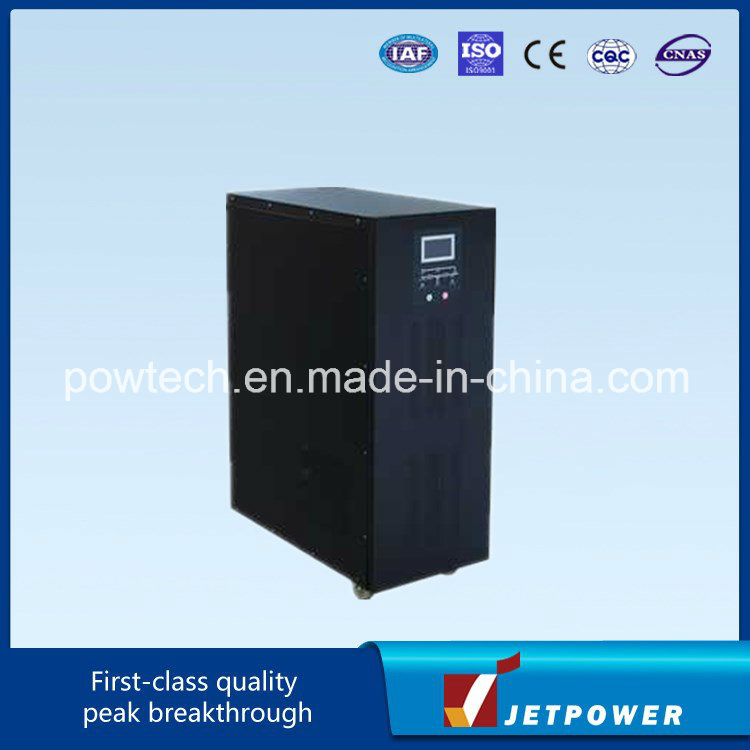

220V DC Inverter with Isolation Transformer
| Price: |
US $ 60/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Box |
| Pay Type: |
L/C,T/T |
| Prod Model: |
ND-6K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size(W*L*H,Mm): |
440×450×177 |
| Weight(Kg): |
30kg |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Electric Power |
| Output Power: |
>1000W |
| Brand: |
Jetpower |
Product Description
6k 220VDC Electronic Power Inverter single phase
Features:
1.Advanced IGBT inverted technology
2.Multiple CPU Intelligent control
3.Multiple protection function of over-voltage,short curcuit,over-temperature on input
4.Special Industrial design to ensure the safety in worse environment
5.Reliable,filtering,stable sine wave output
6.Static bypass switch
7.With output Isolation transformer
220VDC inverter
Technical data sheet
| Model | ND 220 | ND220 | ND220 | ND220 | ND220 | ND220 | ND220 | ND220 | ND 220 | ND 220 |
| -1010 | -1020 | -1030 | -1050 | -1100 | -1120 | -1150 | -1200 | -1300 | -1400 |
| DC input | Rated DC input voltage (VDC) | 220 |
| Rated DC input current (A) | 5 | 10 | 16.3 | 25 | 49 | 59 | 75 | 99 | 148 | 198 |
| DC input voltage range (VDC) | 180~300Vdc |
| Bypass | Utility AC input voltage (VAC) | 220Vac±20%, 50Hz±10% |
| Utility | Rated AC input voltage (A) | 4.5 | 9 | 13.5 | 22.7 | 45 | 54.5 | 68.5 | 91 | 136 | 182 |
| input | Bypass transfer time (ms) | ≤4 |
| AC output | Rated capacity (KVA) | 1 | 2 | 3 | 5 | 10 | 12 | 15 | 20 | 30 | 40 |
| Rated output power (KW) | 0.8 | 1.6 | 2.4 | 4 | 8 | 10 | 12 | 16 | 24 | 32 |
| Rated output voltage and frequency | 220VAC, 50HZ |
| Rated output current (A) | 3.65 | 7.3 | 11 | 18.2 | 36.4 | 45.5 | 54.5 | 72.8 | 109 | 145 |
| Output voltage regulation (Vac) | 220±2% |
| Output frequency regulation(Hz) | 50±1% |
| THD | ≤3% |
| Dynamic response (load 0←→100%) | 5% |
| Power factor | 0.8 |
| Overload | 150%,60s |
| Crest factor | 3:01 |
| Efficiency at rated load | 90% | 90% |
| Environment | Insulation strength (between input & output) | 1500VAC, 1min |
| Noise (1m) | ≤50dB |
| Temperature | -10ºC~+50ºC |
| Humidity | 0~90%, no condensation |
| Altitude (m) | ≤2000 |
| Sizes | Rack tye (W* D * H, mm) | 440×450×177 | 440×450×177 | 440×450×177 | 440×500×221.5 | 330×640×885 | 380×680×935 | 410×720×935 | 490×985×1205 |
| Weight () | 30 | 50 | 55 | 70 | 122 | 135 | 158 | 175 | 270 | 450 |
| Protection | DC input reversely protection, DC input under voltage, overload, short circuit, over temperature |
