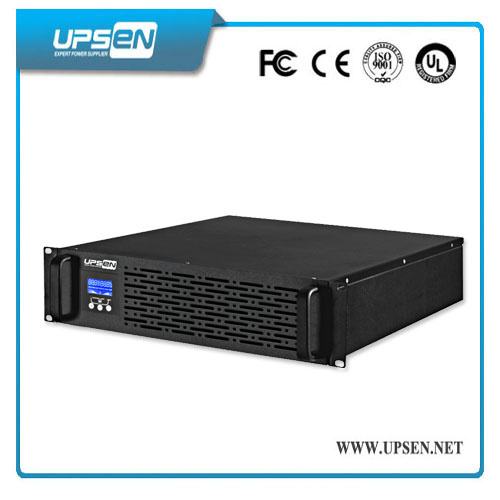

220VAC 50Hz High Frequency Rack Type Online UPS

220VAC 50Hz High Frequency Rack Type Online UPS
Price: US $ 1-200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Rack Mount Star Series 1-10Kva
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Crest Ratio: 3:01
Nominal Voltage: 110115//120VAC or 220/230/240VAC
Color: Black
Operating Temperature: 0 ~ 40°c
Phase: Single Phase
Type: On-line
Protection: Overvoltage

Product Description

220Vac 50Hz  High Frequency Rack Type Online UPS
Model: High Frequency Online UPS Rack Mount Star Series RM 1K-10KVA(1Ph in/1Ph out)

Key Features:
1.It adopts standard frame structure design. The structure is compact.
2.True on-line double conversion technology with advanced microprocessor control
3.Supporting various software system.
4.Provide intelligent slot, Provide standard battery pack
5.It has voltage breakthrough protection and strong anti-interference function.
6.Sealed lead-acid maintenance free battery
7.Automatic startup function, Long-term type power

Applications
Computer Room,Cable television,Communication equipment  & Telecom, Office Automation,Finance & Education,Production Equipment  etc.

Technical Specification
Rack Mount Star Series RM1K-10K

Model

RM1K

RM2K

RM3K

RM1KL

RM2KL

RM3KL

RM6KL

RM10KL

Input

Phase

Single Phase with Ground

Nominal Voltage

110115//120Vac or 220/230/240Vac

220/230/240Vac

Voltage Range

60-138VAC  or 115 ~ 300VAC

176 ~ 276VAC

Frequency Range

46 ~ 54Hz(default), user adjustable within 40~60Hz

46 ~ 54Hz

Power Factor

0.97

0.98

Connection

IEC320-10A inlet

IEC320-16A inlet

IEC320-10A inlet

IEC320-16A inlet

Terminal Block

Output

Phase

Single Phase

Voltage

110/115/120Vac or 220/230/240VAC ± 2%

110/115/120Vac or 220/230/240VAC± 1%

Frequency

46~54Hz or 50Hz ± 0.2Hz (Line mode)

46~54Hz (Line mode)

50Hz ± 0.2Hz ( Battery mode)

50Hz ± 0.05Hz ( Battery mode)

Waveform

Pure Sine Wave

Power Factor

0.7/0.8 Optional

Overload Capability

108%~150% for 30 sec., 150% for 300 ms

105%~130% for 10 min.,


130% for 1 min.

Current Crest Ratio

3:01

Connections

IEC320 -10A * 4

IEC320-10A and

IEC320 -10A * 4

IEC320-10A and

IEC320-10A * 4 and


Terminal Block

Terminal Block

Terminal Block

Bypass

Automatic Transfer

on overload and UPS failure

Before UPS Power-on

Default "NO", user adjustable to "YES"

Yes

Voltage Range

80~264VAC (Default), user adjustable within 80~286VAC

176 ~ 261VAC

Transfer Time

0 ms; less than 4 ms from inverter to bypass and vice versa

Zero

LED /LCD indicators

Load level / Battery level, Battery , Utility Power,


Inverter, Bypass, Overload, Fault

Audible Alarm

Bypass, On battery mode, Battery low, Overload, Fault

Communications

RS-232 Serial Interface

Intelligent Slot;

OPTIONS:  WEBPOWER SNMP/WEB card,


AS400 card or WinPower CMC)

Network Surge Protection

RJ45 I/O port available for network or Fax/Modem

Environmental

Operating Temperature

0 ~ 40°C

Operating Humidity

20 ~ 90% non-condensing

Main Unit

Net Weight (Kg)

16.3

10.3

11.2

9.1

11.5

12.3

18.3

20.3

Dimensions (W x D x H) mm

482 x 420 x 88 (2U)

482 x 420 x 88 (2U) or

482 x 420 x 88 (2U)

482.6 x 600 x 130 (3U)


(3U Internal Batteries)

Battery Pack

Type

Internal Batteries

External Battery Pack

Nominal DC Voltage

24/36VDC

48/72VDC

72/96VDC

24/36VDC

48/72VDC

72/96VDC

192/240VDC

Battery Numbers

2/3Pcs *12V7.2Ah

4/6Pcs *12V7.2Ah

6/8Pcs *12V7.2Ah

Depending on the capacity of


 & Capacity

external battery packs

Backup Time (Full load)

     5 min

7min (with 1 BP)

5 min (with 1 BP)



Recharge Time

5hrs to 90%

5hrs to 90%

5hrs to 90%


Charging Current (Max.)

1.0A

1.0A

1.0A

8A±1A

4.2A

Charging Voltage

41.1Vdc±0.6V

110Vdc±0.4V

41.1Vdc±0.6V

110Vdc±0.4V

274Vdc±1%V

Net Weight (Kg)

 ---

25.3

25.3

---

---

---

---

Dimensions  (W x D x H) mm

 ---

482 x 420 x88 (2U)

482 x 420 x88 (2U)

 ---

---

---

 ---
