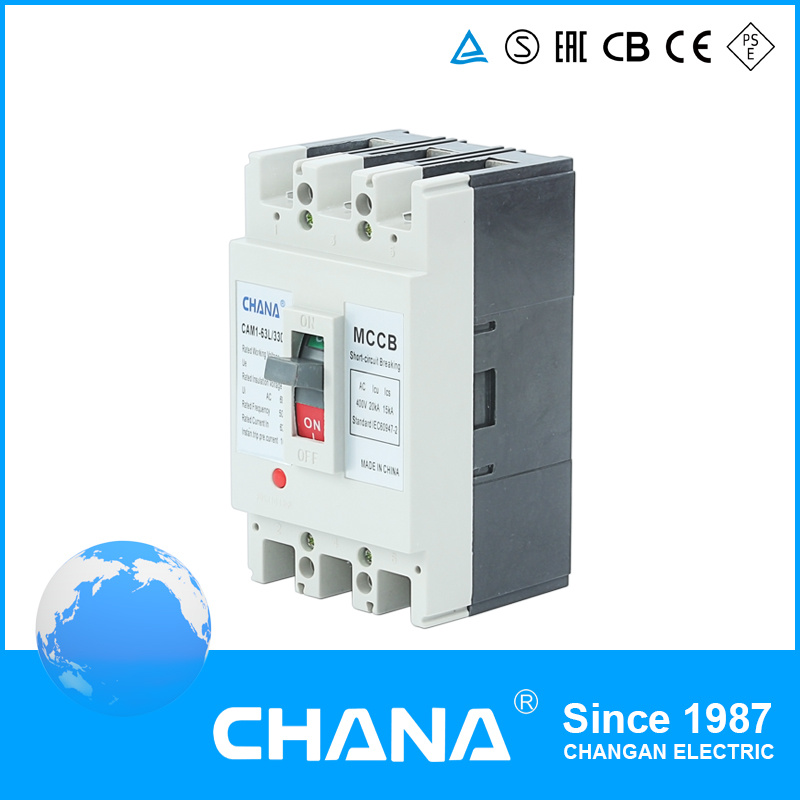

225A 3p/4p Ce and TUV Certificates Moulded Case Circuit Breaker MCCB

Name: 225A 3p/4p Ce and TUV Certificates Moulded Case Circuit Breaker MCCB
Brand: all-electronics-online.com
SKU: 743111485
Availability: InStock
Rating: 4.4 (122 reviews)

Price:	US $ 12-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAM1-225
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Pole:	3, 4
Rated Frame Level Current Inm(a):	63A~800A
Rated Impulse Stand Voltage Uimp(V):	8000
Rated Insulated Voltage Ui:	500V, 800V
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	4
Certification:	CE

Product Description

CAM1 Series MCCB

Application
CAM1 series moulded case circuit breaker (named as MCCB in the following) is a new type breaker which is used for infrequent exchange and startup in AC 60Hz condition. The MCCB is of protection function in overloading, short-circuit, and under voltage situation to protect circuit system and power device from damage.
The MCCB can be devided into L; M; H type according to their rated limit short circuit breaking capacity.
The MCCB is advantageous for its compact body, high breaking capacity (some even on flying arc), short arc-casing and superior aseismatic function.
The product complies with IEC60947-2, GB14048.2........

Specification

Type			CAM1-63L/CAM1-63M						CAM1-100L/CAM1-100M				CAM1-225/CAM1-250
Rated frame level current Inm(A)			63						100				225
Rated current In(A)			10,12,16,20,25 32,40,50,63,						16,20,25,32,40, 50,63,80,100				125,160,180,200,225,250
Rated insulated voltage Ui (AC V)			500						800				800
Rated impulse stand voltage Uimp(V)			8000						8000				8000
Rated working voltage Ue (AC V)			400/415						400/415				400/415
Poles			3			4			3		4		3			4
Rated limited short circuit breaking capacity level			L	M		L	M		L	M	L	M	L		M	L		M
Rated imited short circuit breaking capacity Icu(KA)		400/415V	20	30		20	30		30	50	30	50	35		50	35		50
Rated working short circuit breaking capacity Ics(KA)		400/415V	15	22.5		15	22.5		22.5	37.5	22.5	37.5	26.25		37.5	26.25		37.5
Operation characteristic (Times)		Connected	2000						2000				2000
		Break	10000						10000				10000
Outlook dimension	L		135						150				165
	W		78			103			92		122		107			142
	H		73.5			81.5			72		88		86			103
Weight (g)			735		846	1464		1952	1257	1493	1493	1900	1714	2014		1900	2014
Arcing distance (mm)			0, ≤50						0, ≤50				0, ≤50

Type			CAM1-400M CAM1-400H				CAM1-630M CAM1-630H				CAM1-800H
Rated frame level current Inm(A)			400				630				800
Rated current In(A)			225,250,315,350,400				400,500,630				630,700,800
Rated insulated voltage Ui (AC V)			800				800				800
Rated impulse stand voltage Uimp(V)			8000				8000				8000
Rated working voltage Ue (AC V)			400/415				400/415				400/415
Poles			3		4		3		4		3	4
Rated limited short circuit breaking capacity level			L	M	L	M	L	M	L	M	H	H
Rated imited short circuit breaking capacity Icu(KA)		400/415V	50	70	50	70	50	70	50	70	80	80
Rated working short circuit breaking capacity Ics(KA)		400/415V	37.5	52.5	37.5	52.5	37.5	52.5	37.5	52.5	60	60
Operation characteristic (Times)		Connected	1000				1000				500
		Break	5000				4000				3000
Outlook dimension	L		257				270				280
	W		150		198		182		240		210	280
	H		106.5				110				11.5
Weight (g)			5420		7743		6116	7116	7116	9929	8526	11731
Arcing distance (mm)			0, ≤50				0, ≤100				0, ≤100

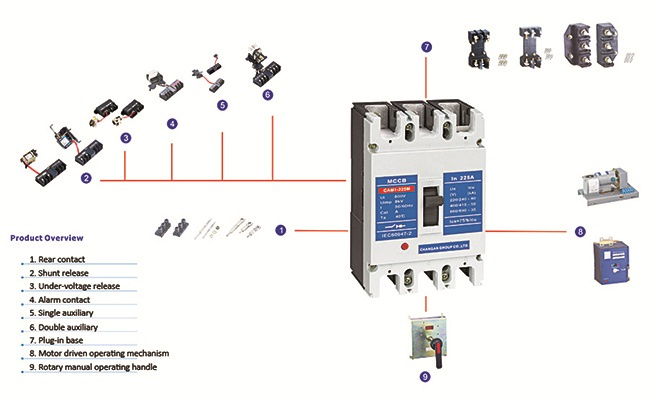

Annex System Drawing

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
