Changan Group Co., Ltd. >> Cadb-M Series 3 Phase Distribution Box

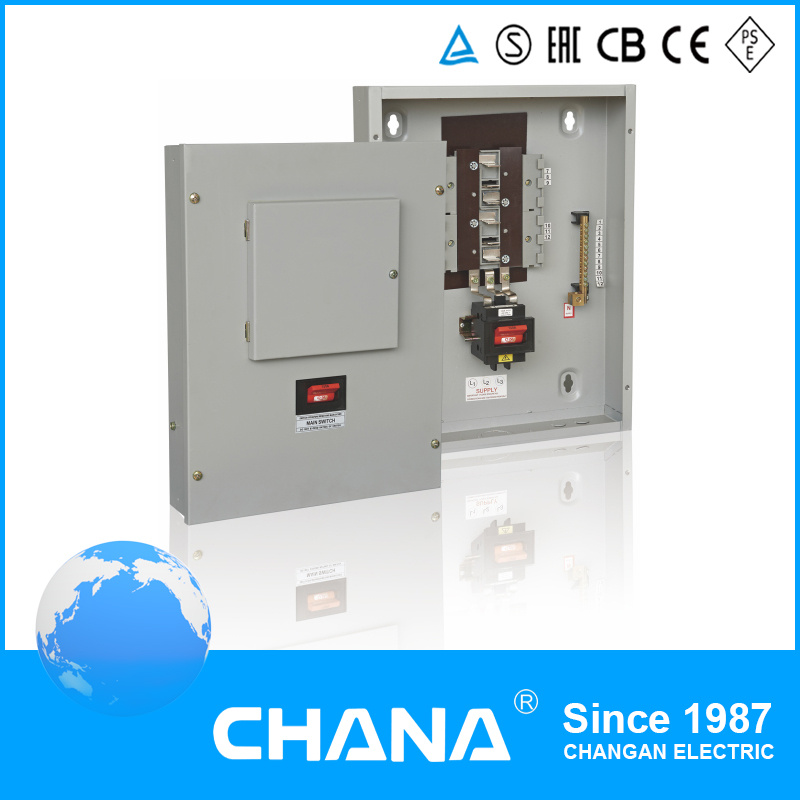

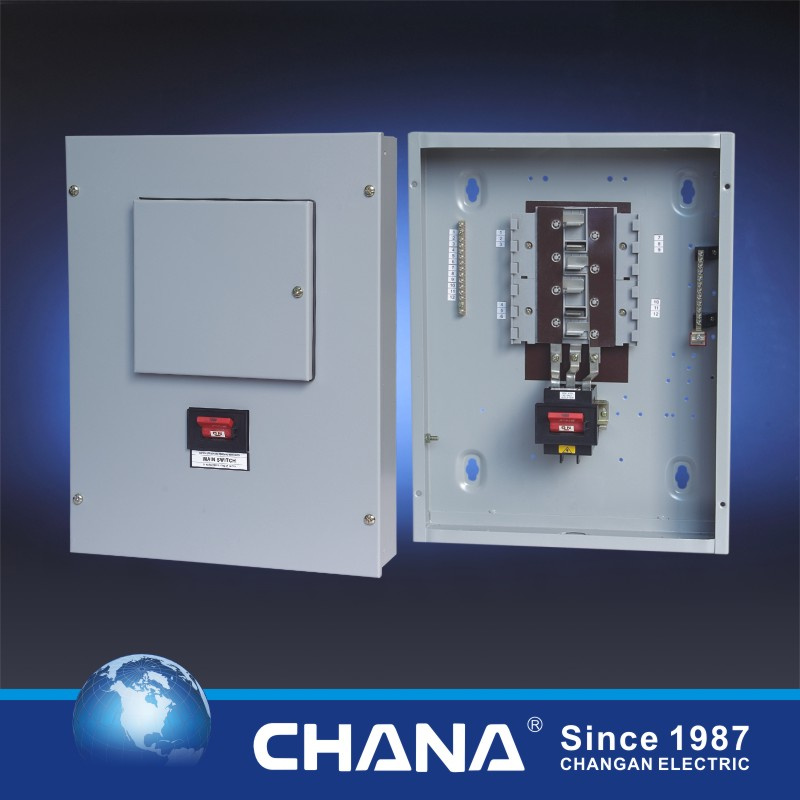

Cadb-M Series 3 Phase Distribution Box

Cadb-M Series 3 Phase Distribution Box
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: CADB-M
Standard: IEC60947-3
Color: Ral7032, Ral7035
Protection Degree: IP66
Type: Distribution Metering Box
Structure: Fixed Board
Certification: Ce,RoHS
Application Range: Electrical Installation
Shell Protection Grade: IP66
Brand: Chana

Product Description







Description
  1. CADB-M Series 3 Phase distribution box is applied to the terminal protection distribution board,the main switch is 100A-3P isolating switch,the branch switch is miniature circuit breaker.
  2. Steel sheet and copper fittings inside.
  3. Protected with epoxy polyester coating.
  4. Standard: IEC 60947-3
  5. Color: RAL7032 or RAL7035

Specification Surface-Mounted
ModelWay NO.Dimension(mm)
WHD
CADB-M-TPN-4-S4370475115
CADB-M-TPN-6-S6370550115
CADB-M-TPN-8-S8370625115
CADB-M-TPN-12-S12370775115

Specification Flush-Mounted
ModelWay NO.Dimension(mm)
WHD
CADB-M-TPN-4-F4395500115
CADB-M-TPN-6-F6395575115
CADB-M-TPN-8-F8395650115
CADB-M-TPN-12-F12395800115

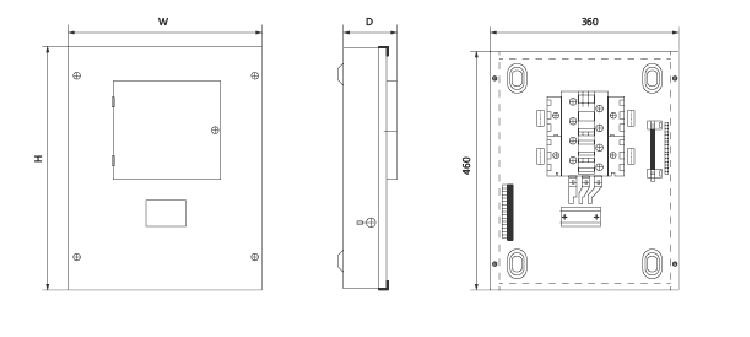

Overall and Installation Dimension




FAQ
Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.



Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
