Ha Series Water-Proof Distribution Box

Name: Ha Series Water-Proof Distribution Box
Brand: all-electronics-online.com
SKU: 823184585
Availability: InStock
Rating: 5 (70 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HA
Material:	Plastic
Protection Degree:	IP30
Box Standard:	IEC60529
Ha-4:	140210100
Ha-8:	215210100
Ha-12:	295260140
Ha-18:	410285140
Ha-24:	295420140
Type:	Distribution Metering Box
Structure:	Protection
Certification:	Ce, RoHS
Application Range:	Circuit Breaker Installation
Shell Material:	ABS
Shell Protection Grade:	IP65
Brand:	Chana

Product Description

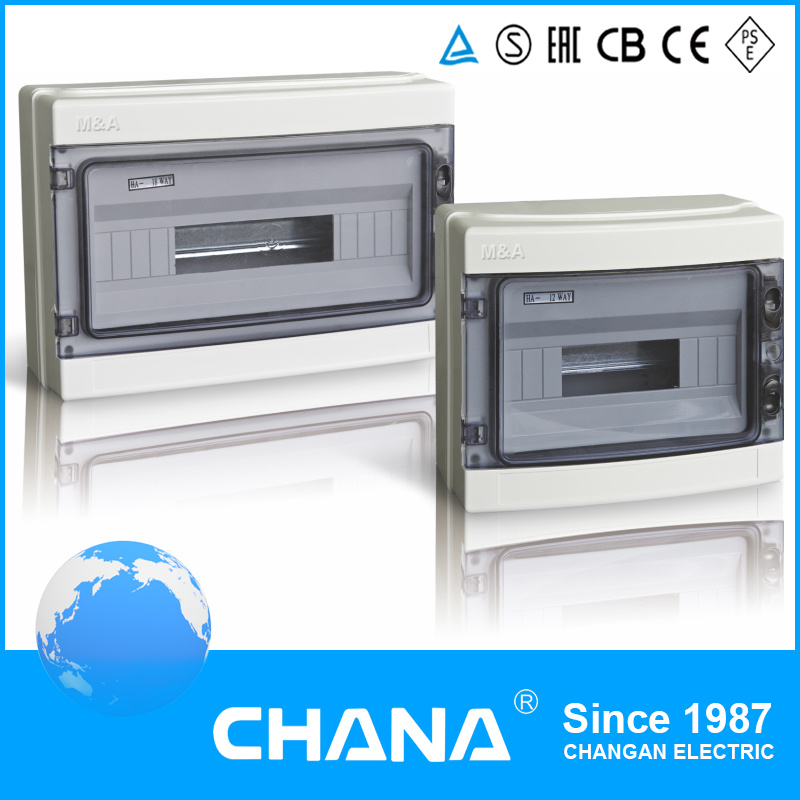

HA Series Water-Proof Distribution Box
Description
Rated voltage/rated frequency: 690V/50Hz;
Material: Shell-PC,
Body-ABS;
Color: RAL7035;
Tested and approved to EN60947-1;
Protection degree: IP65;
Din rail connection according to EN50022;
Supplied with removable earth bar.

Specification

Model	Way No.	Dimension (mm)
Model	Way No.	W	H	D
HA-4	4	140	210	100
HA-8	8	215	210	100
HA-12	12	295	260	140
HA-18	18	410	285	140
HA-24	24	295	420	140

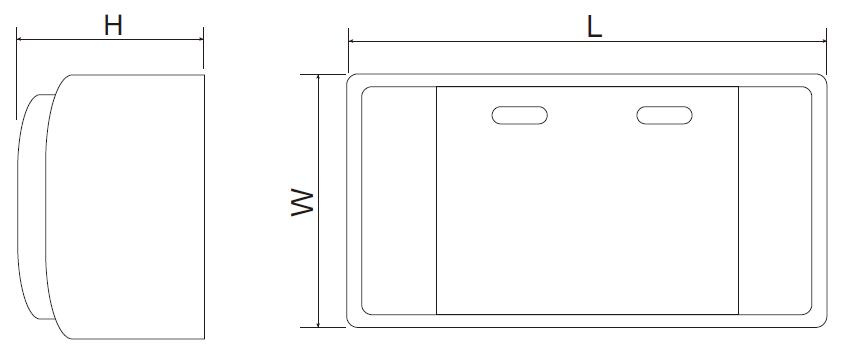

Overall and Installation Dimension

Company Profile

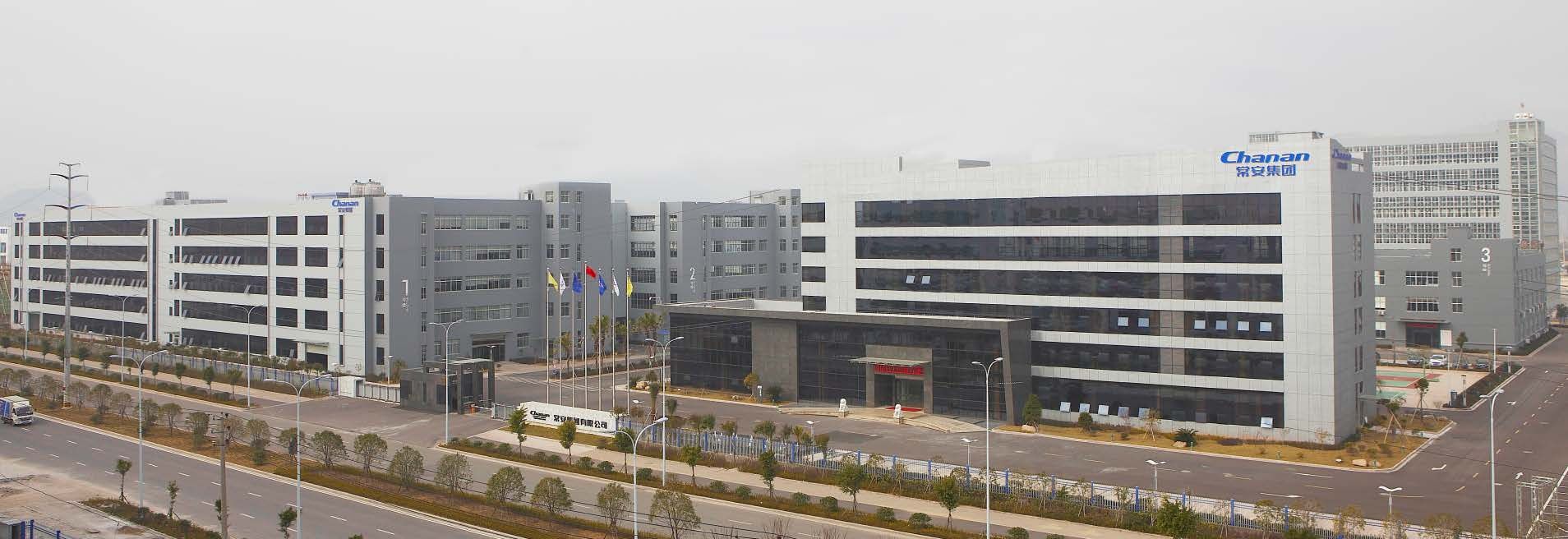

Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..

1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
